Check each wire carefully before connecting your trailer to the towing vehicle to prevent short circuits or malfunction of lights. Use a multimeter to verify continuity and match the correct color codes for brake, tail, and turn signals.
Follow a sequential approach when attaching cables to the plug block. Start with the ground wire, then proceed to the lighting circuits, ensuring secure crimping and firm seating of each terminal. Loose contacts can cause intermittent failures during operation.
Label each wire during installation to simplify future maintenance or replacement. Marking brake, reverse, and indicator lines with colored tags or numbered sleeves prevents misconnection and reduces troubleshooting time.
Inspect the protective housing and seals before final assembly. Moisture or debris inside the socket can lead to corrosion and signal loss, so apply dielectric grease on terminals to enhance durability and maintain reliable contact.

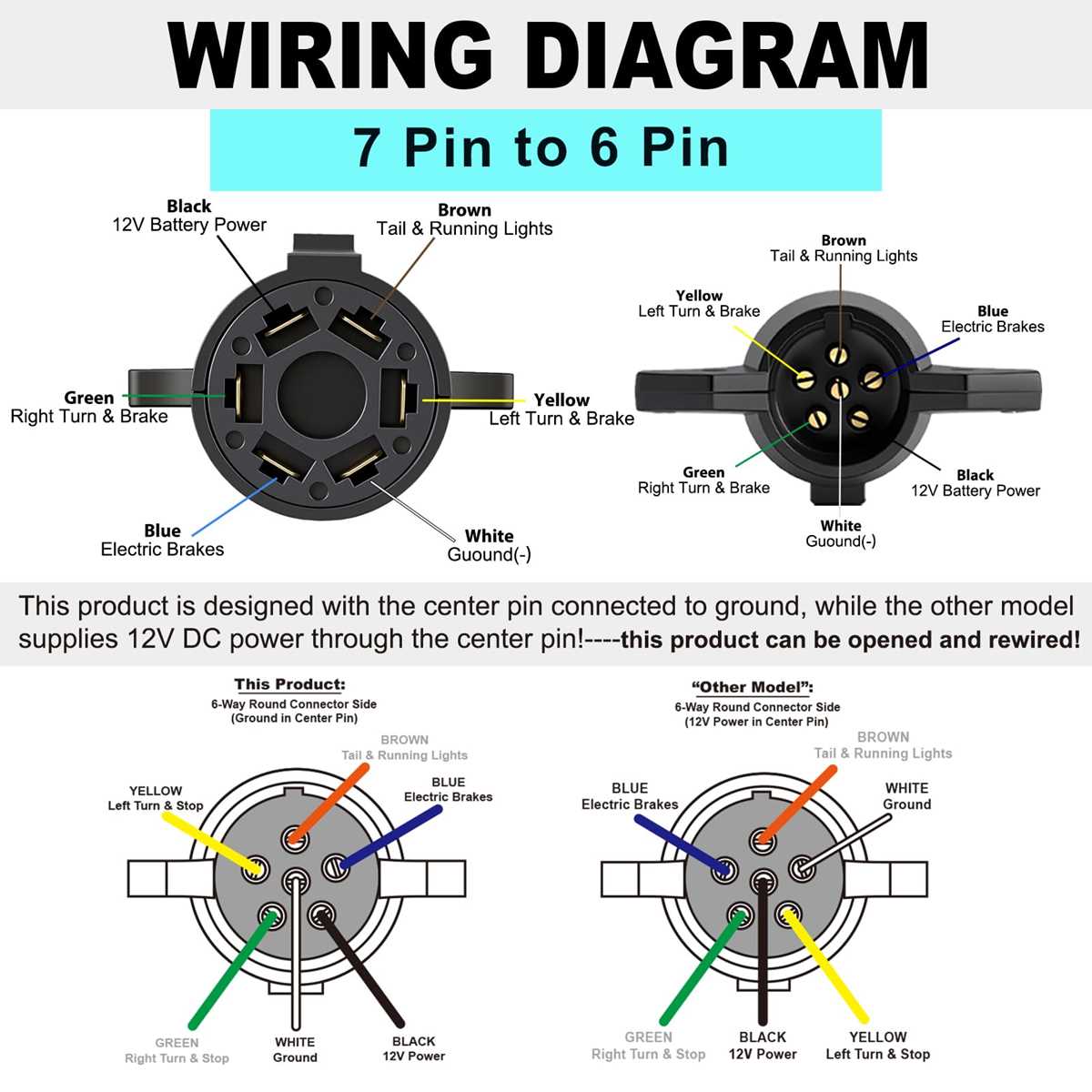

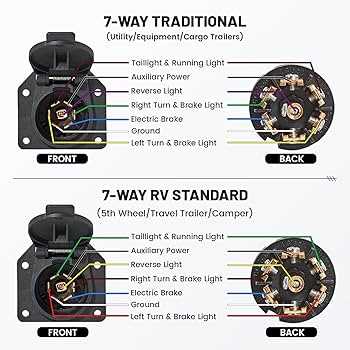

Complete Layout and Terminal Assignments for a 7 Slot Trailer Plug
Start by identifying the ground wire and secure it to the central lug. This provides a stable reference for all other circuits, preventing flickering lights or signal loss. Use a 12-gauge wire for durability and ensure the terminal is free of corrosion before attachment.
Assign each function according to standard color codes. Yellow for left indicators, green for right indicators, brown for tail lights, and blue for brakes. Red can be used for auxiliary power and white for reverse signals. Keep the wires straight and avoid crossing paths to minimize interference.
Check each terminal for tight fit and continuity with a multimeter. Loose seating can lead to intermittent contact or shorts, especially under vibration. Crimp terminals firmly and, if possible, solder the ends to secure metal strands.
Protect the assembly with a durable housing and sealing ring. Prevent dirt and moisture from entering the socket, as corrosion can degrade signal transmission. Applying a thin layer of dielectric grease enhances conductivity and extends service life for heavy-duty towing applications.

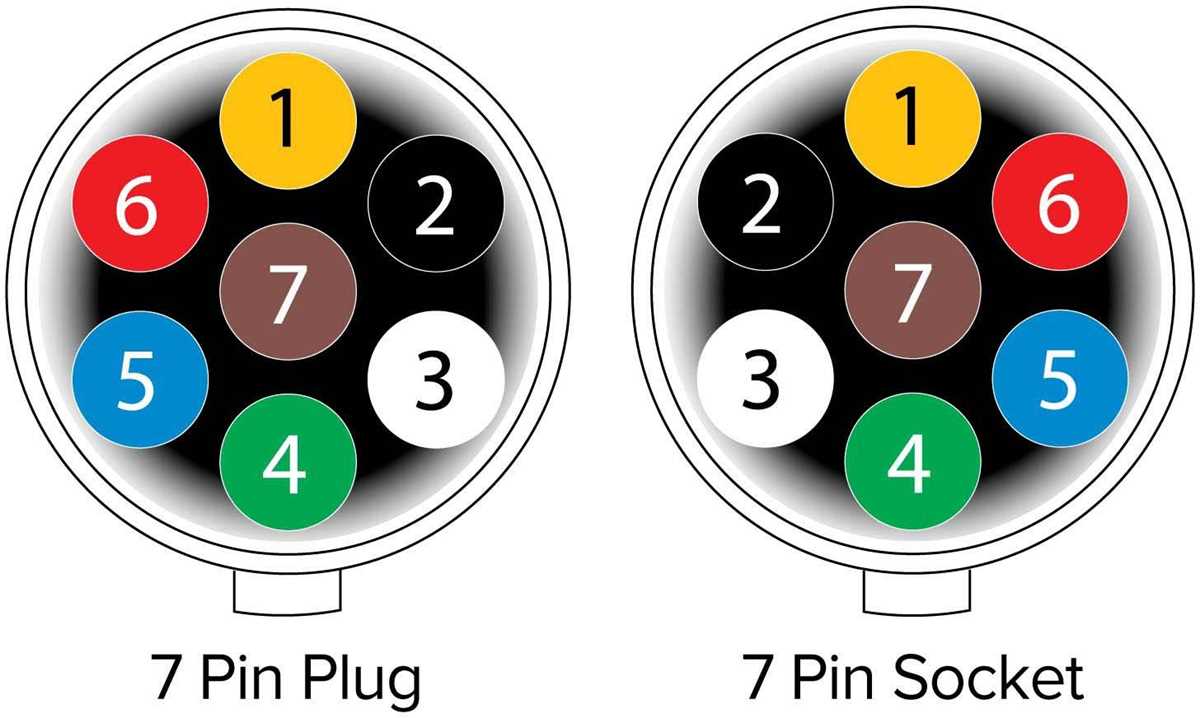

Identifying Each Terminal and Its Function in a 7 Slot Trailer Plug
Start with the central lug for grounding. This ensures all circuits have a stable reference point. Verify continuity with a multimeter before connecting any other lines to prevent shorts or erratic signals.
Assign the lighting and indicator lines according to their standard colors:
- Yellow: Left-side turn signal
- Green: Right-side turn signal
- Brown: Tail and marker lights
- Blue: Brake lights
- White: Reverse lights
- Red: Auxiliary power or battery feed
- Black: Optional circuit for fog or additional lights
Ensure that each wire is stripped to the correct length and crimped securely to its terminal. Frayed strands or loose attachment can create intermittent failures or sparks during operation.
Label each circuit immediately after installation. Use small tags or colored sleeves to prevent confusion during maintenance. This is particularly useful when multiple trailers or towing vehicles share the same plug layout.
Inspect each terminal for oxidation or dirt before final assembly. Clean contacts with a non-abrasive brush and apply a thin layer of dielectric grease to maintain consistent conductivity and prevent corrosion.
Test all functions individually before securing the housing. Connect the trailer and verify that indicators, brake, tail, and reverse lights respond correctly. Correct any mismatched lines immediately to avoid damage to the towing vehicle’s circuits.
Document the layout for future reference. Take a photo or sketch the arrangement of each wire and its role. Clear records reduce errors during repairs, replacements, or when adding auxiliary circuits later.
