Complete Wiring Diagram for 4 Way Light Switch Installation

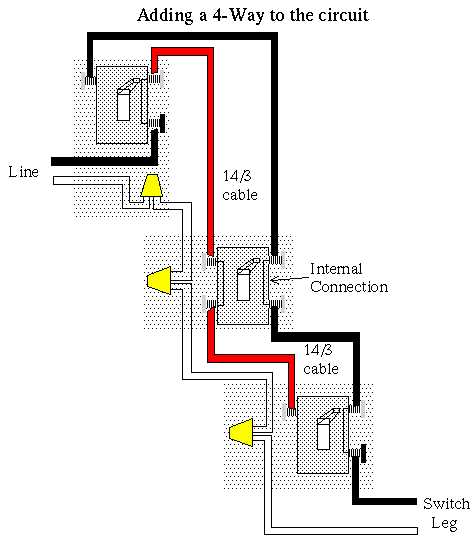

wiring diagram 4 way light switch

To control a single fixture from multiple locations, use a circuit with four terminals. Start by connecting the common terminal of each device to the power source or the light fixture. Ensure that the traveler wires connect the two intermediate positions, allowing the flow of current to alternate based on the selected position.

For seamless installation, wire the two side terminals of each control point to connect across the devices, facilitating the switching of power. Double-check the connections to avoid errors in the flow direction, as improper installation can cause the fixture to remain in a constant on or off state.

If you encounter issues, like non-responsive switches, verify the continuity of all connections and ensure that the traveler wires are linked correctly to each position. Testing the configuration with a multimeter before finalizing the setup can help pinpoint any faulty connections.

Wiring Setup for 4-Terminal Control Device

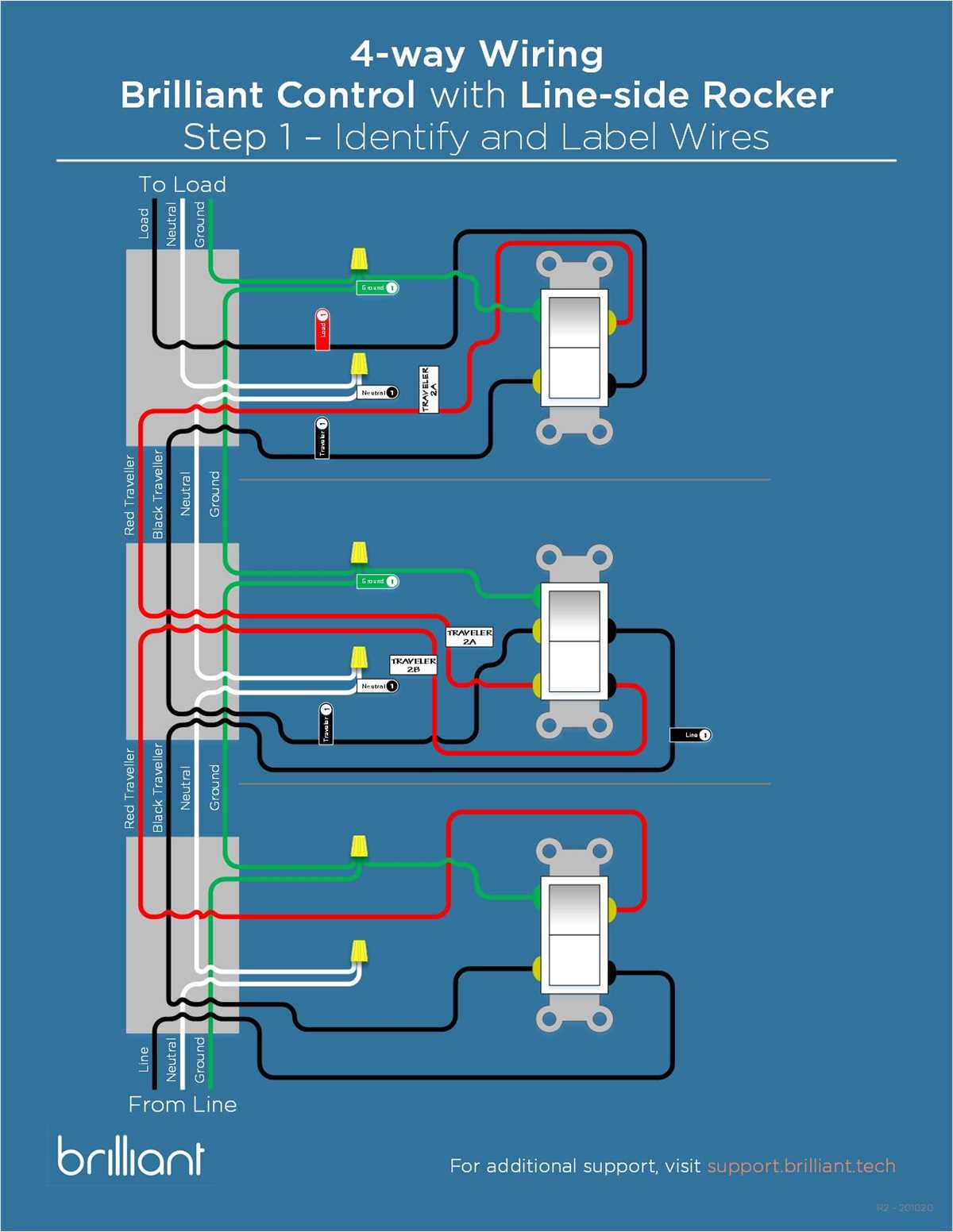

wiring diagram 4 way light switch

To begin, connect the power supply to the common terminal of the first control point. This terminal acts as the entry point for the current. The remaining terminals on this device will link to the other control points, allowing for flexibility in operation from different locations.

The two intermediate terminals of each control point need to be connected via traveler wires. These traveler wires will carry the electrical current between each terminal, enabling the fixture to be toggled from different spots. Each traveler must be wired correctly to allow alternating flow based on the chosen position.

Connection of Traveler Wires

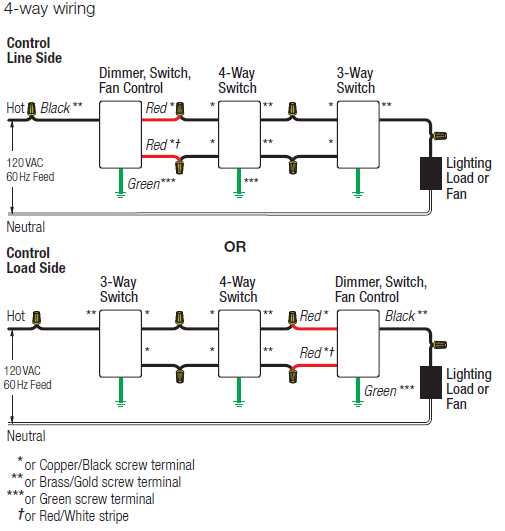

wiring diagram 4 way light switch

Traveler wires should be routed between the terminals of the various controls in the circuit. At each control, two traveler terminals must be linked, ensuring power can flow from one to the other as needed. Incorrect routing can prevent the system from working correctly, causing it to either remain off or on.

At the intermediate control points, make sure to carefully connect the traveler wires to their respective terminals. A common mistake is to mix up the connections, leading to a situation where the fixture cannot be toggled between on and off states from different locations.

Testing for Functionality

Before completing the setup, use a multimeter to test for continuity across each of the terminals. This will ensure that the current is properly directed through the system when toggling between control points. If any terminals fail to show proper continuity, double-check the connections and re-wire as needed.

Once all connections are confirmed, check each control device to ensure that the fixture responds correctly. In most cases, the current will only flow when one of the two controls is in a specific position, allowing for alternating power flow as needed.

If the setup still does not function as expected, verify the integrity of all wires and connections. It’s important to ensure no loose or broken connections are preventing proper operation. A thorough inspection can reveal issues such as short circuits or damaged wires that could be interfering with the current.

In some cases, you may need to install a different type of connector or switch to ensure proper function. Consult the installation manual for your specific controls to ensure compatibility with the type of system you are using.

How to Set Up a 4-Terminal Control Circuit with Multiple Fixtures

To control several fixtures from different spots, first, connect the power source to the common terminal of the first control. Then, use two traveler terminals to extend the current flow to the next control points. This setup ensures that each terminal can send or receive power to the fixtures.

For multiple fixtures, split the current flow from the power supply to each one, connecting them in parallel. This setup allows you to control the fixtures independently, while the control points adjust the flow to each, depending on their selected position.

Connecting Multiple Fixtures

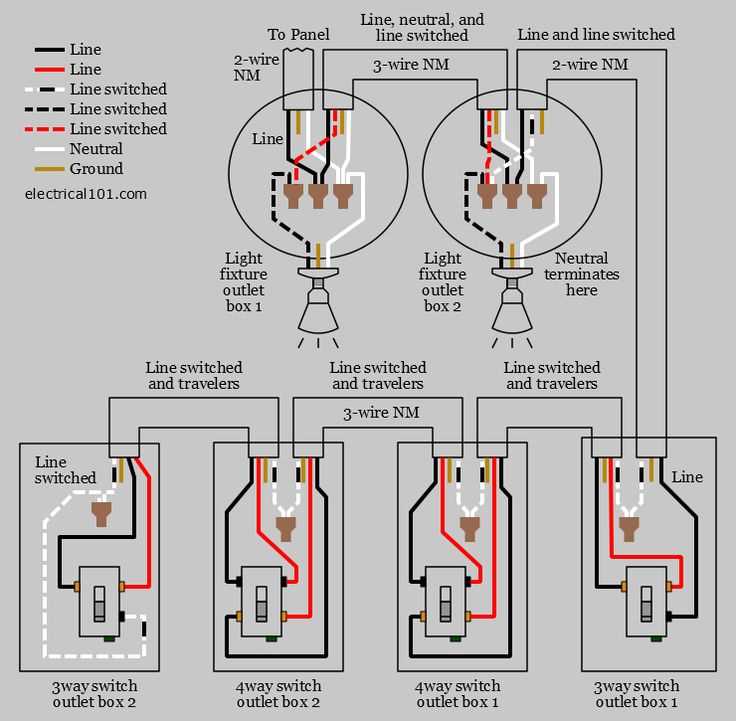

wiring diagram 4 way light switch

  • Run a wire from the power source to the common terminal of the first control.
  • Connect the traveler terminals of the first control to the next control, ensuring correct placement of the wires for each fixture.
  • For each fixture, use parallel wiring to connect it to the appropriate terminals, allowing for independent control of each light from any control point.

After wiring all the fixtures, test each control point to confirm that each fixture is responding as expected. If the fixtures remain on or off regardless of the position, recheck the connections for any errors in traveler wire placement or faulty terminals.

Finally, make sure to secure all wires and test the circuit with a multimeter. This helps to identify if any connections are weak or unresponsive, ensuring that the entire setup works properly before finalizing the installation.
