If you’re looking to control a light from two different locations, follow these steps for a proper setup. This method requires connecting two control points that work together to turn the light on or off. You’ll need two distinct switches that allow for such configuration, each with its own terminals for the necessary wiring.
The key components in this setup are the traveler wires, which connect the two devices, and the common wire, which serves as the main power source. Properly identifying each terminal on the switches is critical to avoid miswiring, which could lead to malfunction or potential hazards.
Start by connecting the power source to the first switch, ensuring that the live wire enters the common terminal. Then, run the traveler wires between the switches, using the traveler terminals on both. At the second switch, connect the common terminal to the light fixture’s wire, completing the circuit. Always double-check that all connections are secure and insulated.
For safety, make sure the power is turned off before starting the installation. If you’re uncertain about handling electrical work, consider seeking assistance from a qualified electrician. Proper installation not only ensures functionality but also prevents risks of electrical failures.
Step-by-Step Guide to Wiring a Multi-Location Light Control System
Begin by turning off the power at the breaker panel. Double-check with a voltage tester to ensure the circuit is dead before handling any components.
Next, select the right components: two control points (which will function as the toggle controls) and a light fixture. You’ll also need a neutral wire, a ground wire, and two traveler wires to complete the setup.

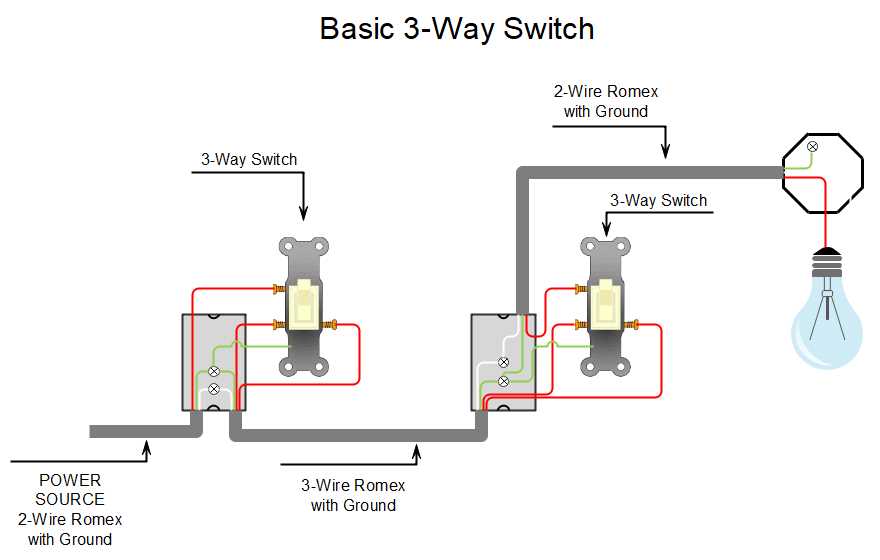

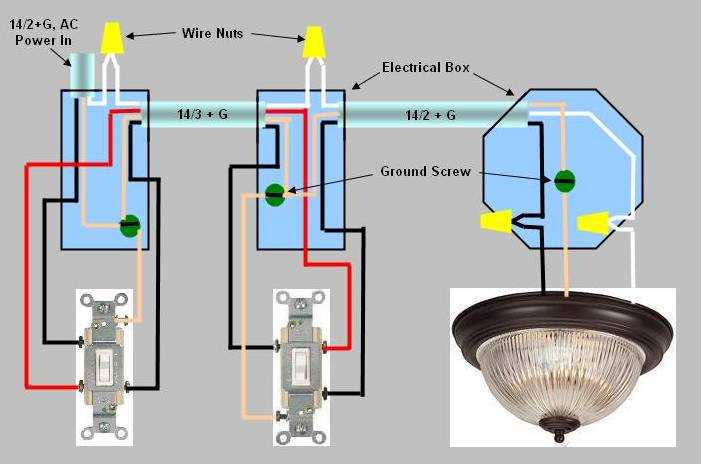

Step 1: Connect the Power Source
At the first control point, connect the live wire (usually black) from the power source to the common terminal. This is the incoming line, and it will be routed through the traveler wires to the second control point.
Step 2: Set Up the Traveler Wires
Run the two traveler wires (typically red and black) between the two control points. These will allow the current to flow from one switch to the other. At each control point, connect these traveler wires to the traveler terminals on the devices.
Step 3: Install the Light Fixture Connections
At the second control point, connect the common terminal to the light fixture’s hot wire. This will complete the circuit, allowing the light to be activated from either of the control points. Ensure the neutral wire is securely attached to the light fixture as well.
Step 4: Grounding the Circuit
At both control points and the light fixture, connect the ground wire to the appropriate terminals. This is a critical safety measure to prevent electric shock or short circuits. Ensure all ground connections are tight and properly insulated.
Step 5: Testing and Troubleshooting
After securing all connections, restore power to the circuit and test the system. Both control points should operate the light. If it doesn’t work, recheck the traveler wires and ensure they’re connected properly at both ends. If the light still doesn’t respond, inspect for loose or incorrectly connected wires.
Remember, if you encounter difficulty or feel unsure about any step, it’s best to consult a licensed electrician. Proper installation ensures both safety and functionality of the system.
Common Wiring Configurations for Multi-Location Light Controls
One of the most common configurations involves two control points, with each device allowing the user to toggle the light on or off from either location. In this setup, the power source enters the first device, and two traveler wires connect the devices together. These traveler wires carry the current between the two points and control the light’s operation.
Another common configuration is the “end-of-line” method, where one control point is directly connected to the light fixture and the other acts as a master control. The live wire runs directly to the first device, and the neutral wire is sent to the fixture. The traveler wires then complete the circuit through the second device.
In some installations, a “loop” setup is used where the power enters the middle of the circuit. This configuration allows the light fixture to be located between the two control points, providing more flexibility in room layouts. Each of the two devices has its own common terminal, and the traveler wires connect them to control the light from either side.
A more advanced configuration involves adding a third control point, creating a multi-point control system. In this case, the traveler wires must be extended between all three devices. The light fixture can be controlled from any of the points, which is especially useful in large rooms or corridors where you want multiple control locations.
Another variation uses a “smart control” setup, where one or both of the control points are replaced with smart devices. These allow remote operation via an app or voice assistant, but the physical wiring between devices is the same as in traditional systems. This setup adds convenience but requires the devices to be compatible with the system being used.
In commercial or industrial settings, configurations may include multiple control points connected to a single fixture or group of lights. Here, the primary goal is to allow for flexible control across large spaces. The installation follows the same principles but may include additional safety protocols and higher voltage ratings.
Always ensure that connections are secure, and that traveler wires are correctly routed between each control point. Miswiring or loose connections can cause malfunction, or worse, pose a safety hazard. If you encounter any issues, consult the wiring manual for the specific device you’re using or seek professional help for installation.
