Connect the live wire to the common terminal of the first control unit and link the traveler terminals between both units. Use copper conductors of 1.5mm² to handle standard lighting loads safely.
Attach the load line directly to the second control point’s common terminal and ensure proper insulation on all exposed conductors. Mark each wire with color-coded tape to prevent confusion during installation or future maintenance.
Verify neutral connections remain continuous between supply and the lighting fixture. Do not cross traveler wires as it may cause flickering or prevent proper toggling between points.

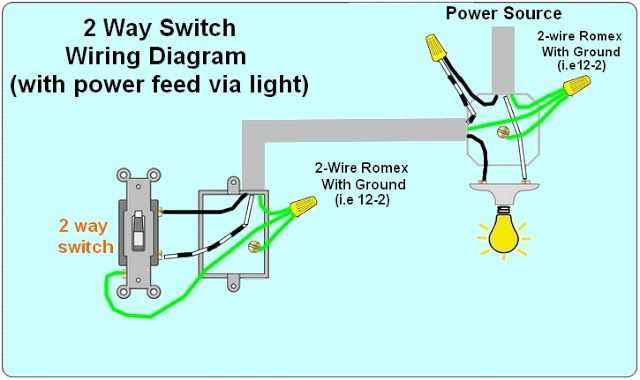

Step by Step Guide for Connecting Two Point Lighting Controls
Begin by connecting the live supply to the common terminal of the first control unit. Use 1.5mm² solid copper wires for standard household lighting to ensure a secure connection.
- Link traveler terminals between the two control points using insulated conductors.
- Connect the load line from the fixture to the common terminal of the second control point.
- Ensure neutral and earth conductors are continuous and properly terminated at the fixture.
Test the setup by toggling each control point to confirm the fixture responds correctly from both locations. Label traveler wires with colored tape to prevent errors during maintenance or future modifications.
Identifying Terminals and Preparing Conductors for Two Point Control
Locate the common, traveler, and ground terminals on each control unit. Mark each terminal clearly with colored tape to avoid mistakes during connection. Use a voltage tester to confirm live and neutral lines before handling.
Preparing Conductors
Strip insulation carefully to expose 10–12mm of copper without nicking the strands. Use 1.5mm² or 2.5mm² wires depending on the load and length of the run. Pre-twist stranded wires to ensure a firm fit in terminal screws.
Organizing Connections
Group traveler wires separately from live and neutral lines to reduce interference. Secure wires with cable clips inside the wall box to prevent strain on terminals and maintain consistent contact over time.
