To ensure smooth and reliable operation of your vehicle’s visibility system, it’s important to understand how each component works together. If your visibility system isn’t performing properly, the issue often lies in one or more key parts of the mechanism. Knowing what these parts are and how they function will help you diagnose and address problems with ease.
The motor is the heart of the system, responsible for generating the power to move the blades. The connecting arms, meanwhile, transfer that motion to the blades, allowing them to sweep across the surface. Without a properly functioning motor or linkage, even the most advanced blades won’t perform effectively.
Common issues often arise with the arm or blade connections. Over time, these parts can wear out, become loose, or accumulate debris that hinders their movement. Regular inspection and timely replacement are crucial to maintaining the system’s performance and prolonging its lifespan. Identifying and replacing damaged components, such as faulty joints or worn rubber, can save both time and money in the long term.

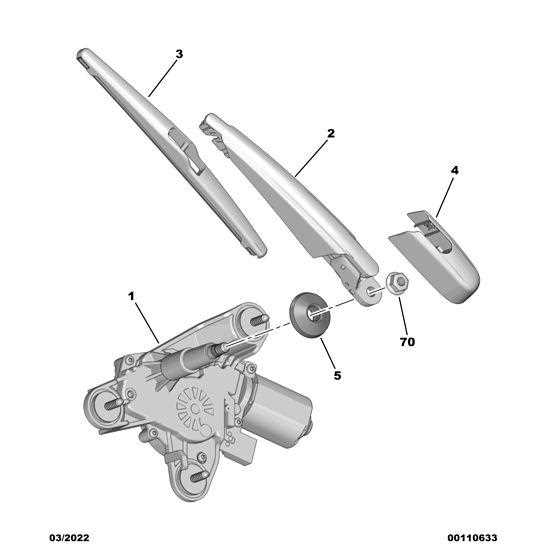

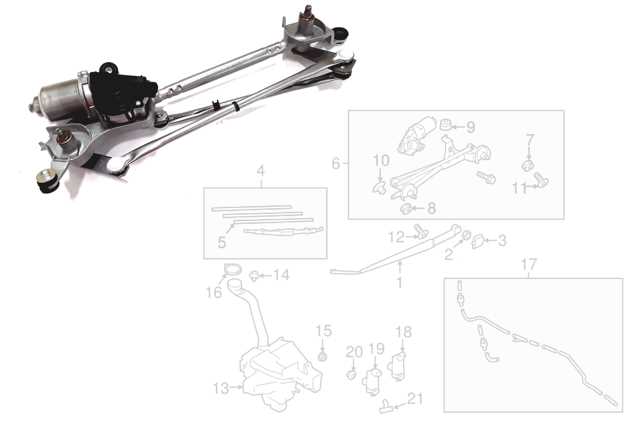

Windshield Wiper System Components Breakdown
The motor is responsible for powering the entire system. It generates the necessary force to move the blades across the glass. When the motor fails, the entire system stops functioning, making it one of the most critical elements to monitor.
Linkage arms connect the motor to the blades, ensuring that the motion is transferred effectively. These arms are often exposed to constant movement, leading to wear and tear. Ensure the arms are free from rust or corrosion to prevent malfunctions.
The blades themselves are designed to remove rain or debris from the surface. The rubber material on the blade is prone to degradation over time due to exposure to sun, moisture, and extreme temperatures. Replacing them regularly is key to maintaining visibility during inclement weather.
Spray nozzles distribute cleaning fluid across the surface. When clogged or damaged, they can severely limit the system’s ability to clean. Inspecting these nozzles and cleaning them periodically ensures optimal performance.
Lastly, the control switch or lever allows the user to operate the system. If the switch becomes unresponsive, the entire system may become inoperable. A quick inspection of this component can often reveal whether electrical issues are causing malfunctions.
Understanding the Function of the Motor and Linkage
The motor provides the driving force for the entire system. It uses electrical power to generate rotational movement, which is then transferred to the linkage system. A failing motor will result in a complete breakdown of the system, rendering it ineffective. Check for signs of wear, unusual noises, or lack of movement as early indicators of motor failure.
The linkage system, composed of rods and arms, transfers the rotational movement from the motor to the blades. The linkage ensures that the blades move in a coordinated manner across the surface. Over time, the rods and joints can become loose, corroded, or misaligned, resulting in jerky or incomplete motion. Regular maintenance, including lubrication and tightening, can help prevent these issues.
- Inspect the motor for signs of wear, overheating, or electrical issues.
- Check the linkage arms and rods for rust or corrosion.
- Ensure that all connections are tight and secure to prevent any misalignment.
By maintaining both components, you can ensure smooth and effective operation of the entire cleaning system, extending the lifespan of the blades and improving visibility in poor weather conditions.
Common Issues with Arms and Blades
Misalignment of the arms can cause uneven movement, resulting in an incomplete clearing of the surface. If the arms are not properly aligned, the blades may miss spots, reducing visibility. Ensure the arms are securely attached and adjust them to the correct angle if needed.
Worn-out blades are a common issue that affects the efficiency of the system. Cracked, torn, or brittle rubber will fail to properly clear water, leaving streaks. Inspect the rubber for damage regularly and replace them when the rubber shows signs of wear.
- Check for rust or corrosion on the arms, which can affect movement and cause wear.
- Ensure that the arms are securely fixed to their mounts to prevent wobbling.
- If the blades leave streaks or fail to make proper contact, it’s time for a replacement.
Frequent maintenance and timely replacement of damaged components will help restore smooth operation and improve visibility during adverse weather conditions.
How to Replace and Maintain System Components
Start by disconnecting the battery to avoid any electrical hazards. If replacing the motor, locate the mounting bolts, then remove the motor carefully. Before installing a new motor, ensure it is compatible with the existing setup.
For replacing the linkage, first inspect the condition of the joints and pivot points. If damaged, remove the faulty components and install new ones. Make sure all connections are tight and free of rust or debris.
Regular maintenance involves cleaning the arms and checking for any signs of wear on the rubber. Apply a silicone-based lubricant to moving parts to ensure smooth operation. Replacing the arms and blades at the first sign of wear helps prevent long-term damage to the system.
Inspect the system at least once a year, especially before winter. If there are any issues such as uneven movement or streaks, address them immediately to maintain optimal performance.
