To properly connect a 240V appliance, ensure you are using a correctly rated power cord with three or four prongs, depending on the outlet type. If the existing cord is damaged or incompatible, replacing it with a new one that matches the required specifications is crucial.
Start by identifying the terminals on both the appliance and the outlet. For a three-prong connection, you’ll find two hot terminals and a ground. For a four-prong setup, a neutral wire will be added. Make sure the appliance’s wiring is aligned with the correct terminal for each wire.
Use a high-quality, appropriately gauged wire to avoid power loss or overheating. Commonly, a 10-gauge wire will suffice, but if the appliance requires more power, you may need a thicker cable. Make sure all connections are secure, as loose wiring can cause operational failures or even pose safety risks.
After the new cable is installed, check the wiring against the schematic to ensure the right connections have been made. Verify the polarity and grounding to avoid electrical hazards or malfunctioning parts. A multimeter can help check the continuity and voltage levels before turning on the power.
Once everything is connected, test the system. Plug in the appliance and check if it’s functioning correctly. If it fails to start, double-check your connections or consult an electrician to confirm the setup is done properly.
Dryer Power Connection Guide
Start by verifying that the appliance is disconnected from the power source. Using a three-prong or four-prong cord, connect the appropriate wires to the terminals on the power socket. The two hot terminals (usually black and red) should be attached to the corresponding hot wires from the cord, while the neutral wire (typically white) connects to the neutral terminal.
Next, ensure that the grounding wire (green or bare) is securely attached to the ground terminal. This is vital for the safety of the appliance and to prevent electrical shocks. Double-check that the wire is not loose and that there is a strong connection to the grounding point.
For safety, use a fuse or circuit breaker that matches the appliance’s amperage requirement. Install it as close to the power source as possible. This will help prevent overcurrent damage and protect your system in case of a malfunction.
After completing the setup, test the appliance. Plug it in and check that everything is functioning as expected. If the appliance doesn’t start, recheck the connections and verify that the correct terminals were used for the respective wires. If necessary, consult an electrician for further assistance.
Step by Step Instructions for Connecting a Dryer Power Cord

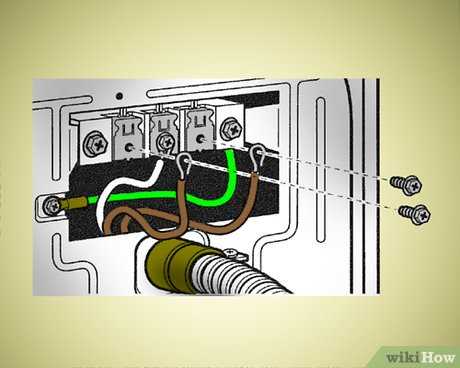

Before starting, make sure the appliance is unplugged from any electrical source. You’ll need a three-prong or four-prong power cord, depending on your outlet configuration. Begin by identifying the power terminals on the appliance and matching them with the corresponding wires on the cord. The black and red wires are for the hot connections, the white for neutral, and the green or bare wire is for grounding.
Connecting the Hot and Neutral Wires
First, connect the two hot wires (black and red) to the hot terminals. These terminals are typically labeled with a “L1” and “L2” or simply as “Hot” and “Hot.” Tighten the screws securely to avoid any loose connections, which could result in electrical hazards. Next, attach the white wire to the neutral terminal. This terminal is usually located next to the ground connection.
Grounding the System
Now, focus on grounding. The green or bare wire from the cord must be securely connected to the ground terminal on the appliance. This step is crucial for safety, as grounding ensures that any stray electricity will be safely diverted. Double-check that the ground wire is tightly secured and that there are no exposed or frayed parts.
Once the connections are made, check the power cord to ensure it is properly seated in the appliance. Ensure that there are no exposed wires or loose ends. After everything is secured, the final step is to install a fuse or circuit breaker appropriate for the appliance’s amperage rating. This will protect against overloads and electrical issues.
After completing the setup, plug the appliance into the power source and test it. If everything is connected correctly, the appliance should power on without any issues. If it does not start, recheck the connections, especially the hot and neutral terminals, to ensure they are properly wired.
