Connect the signal lead to the ignition coil negative terminal or ECU pulse output. This line carries the switching pulses generated every time the ignition system fires. The gauge counts these pulses and converts them into engine speed displayed in revolutions per minute.
The power supply usually requires a switched 12 V source linked to the ignition key position. This connection allows the instrument to operate only while the vehicle electrical system is active. Ground must attach to a clean chassis point; poor contact often causes unstable readings or needle fluctuation.
A separate lighting terminal powers the internal bulb or LED used for dashboard illumination. This lead commonly connects to the vehicle lighting circuit so the gauge brightness follows the instrument panel lights after the headlamp switch activates.
Signal compatibility depends on engine type and ignition configuration. Four-cylinder engines produce two ignition pulses per crankshaft revolution, while eight-cylinder engines generate four pulses. Many aftermarket RPM gauges include a selector switch or internal jumper that adjusts pulse interpretation for different cylinder counts.

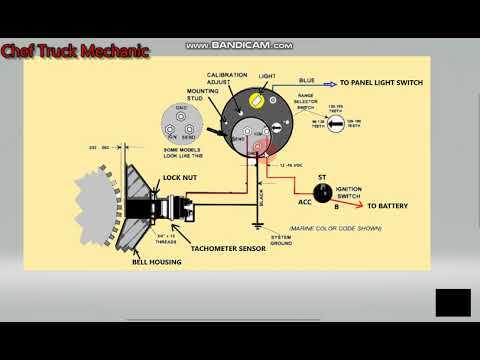

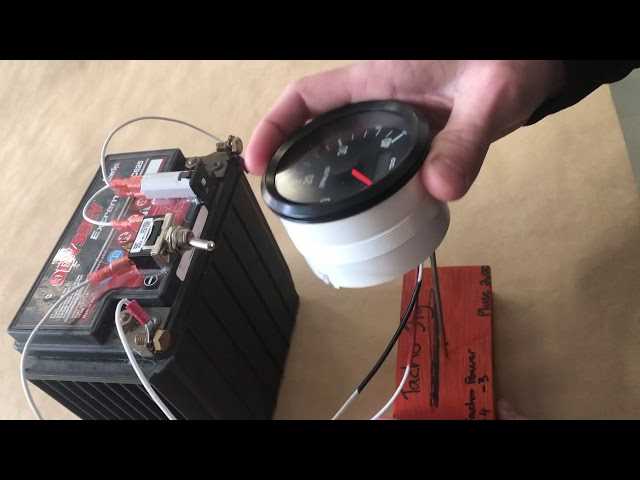

Engine RPM Gauge Connection Layout With Power Ground Light and Coil Signal Connections
Attach the signal lead to the ignition coil negative terminal or ECU pulse output. This connection carries switching pulses generated each time the ignition module fires. The instrument counts these pulses and converts them into revolutions per minute displayed on the dial.
The power terminal usually connects to a switched 12 V source linked to the ignition key. This feed allows the gauge to operate only while the electrical system is active. Ground must attach to a clean chassis point using a short conductor; resistance above a few ohms can cause needle fluctuation or unstable readings.
Lighting and Dashboard Integration
The illumination terminal connects to the dashboard lighting line. Once the headlamp switch activates, voltage from the panel lighting circuit powers the internal bulb or LED so the gauge brightness matches the rest of the instrument cluster.

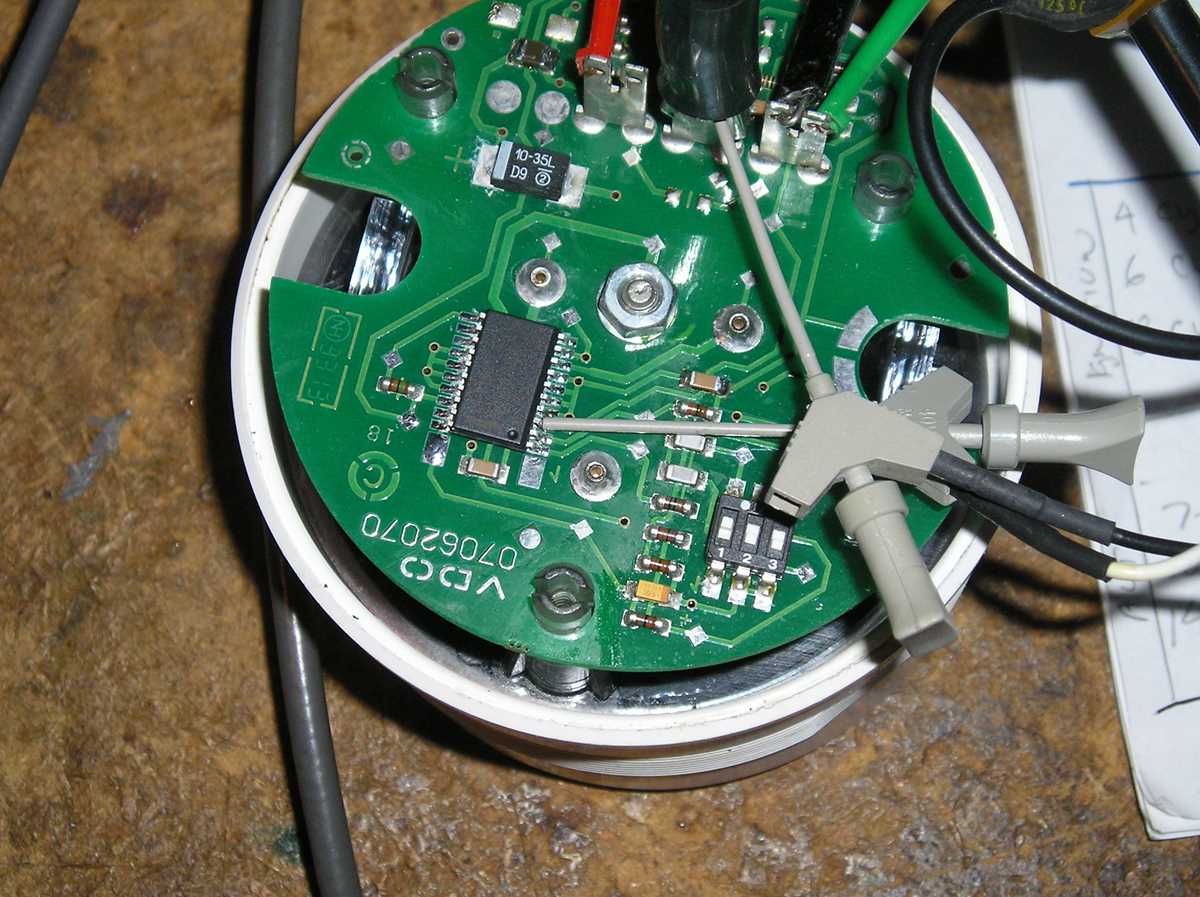

Signal Source Selection
Ignition pulse frequency depends on cylinder count and engine configuration. A four-cylinder engine produces two pulses per crankshaft revolution, while an eight-cylinder engine produces four. Many aftermarket RPM gauges include a selector switch or rear jumper that adjusts pulse interpretation for different engine types.
Engine RPM Gauge Terminal Identification for Power Ground Lighting and Signal Input
Identify each rear terminal before connecting the instrument. Most engine speed gauges include clearly marked studs or spade connectors that handle power supply, chassis ground, dashboard illumination, and ignition pulse input. Reading these markings prevents reversed polarity and protects the internal electronics.
Main Electrical Connections
The rear side of the gauge normally includes the following terminals:
- Terminal 15 or + switched 12 V supply from the ignition key
- Terminal 31 chassis ground connection attached to vehicle body metal
- Terminal 58 dashboard lighting input connected to the panel illumination line
- Terminal 1 or SIG pulse signal from ignition coil negative or ECU output
Connect terminal 15 to a fused line that receives voltage only when the ignition switch moves to ACC or ON. Typical voltage ranges between 12.4 V with the engine off and about 14.2 V while the alternator charges the battery.
Signal Input Location
The pulse input terminal links to the ignition system switching output. On distributor systems this connection usually attaches to the negative side of the ignition coil. Electronic fuel injection engines often provide a dedicated engine speed output from the ECU.
Use shielded or short signal conductors when routing the pulse lead near high current cables. This reduces electrical interference that may cause unstable RPM readings during engine acceleration.
