Attach power leads directly to the input posts using cables rated for the full current of the unit. Ensure connections are clean, free of oxidation, and tightened securely to prevent voltage loss and overheating.

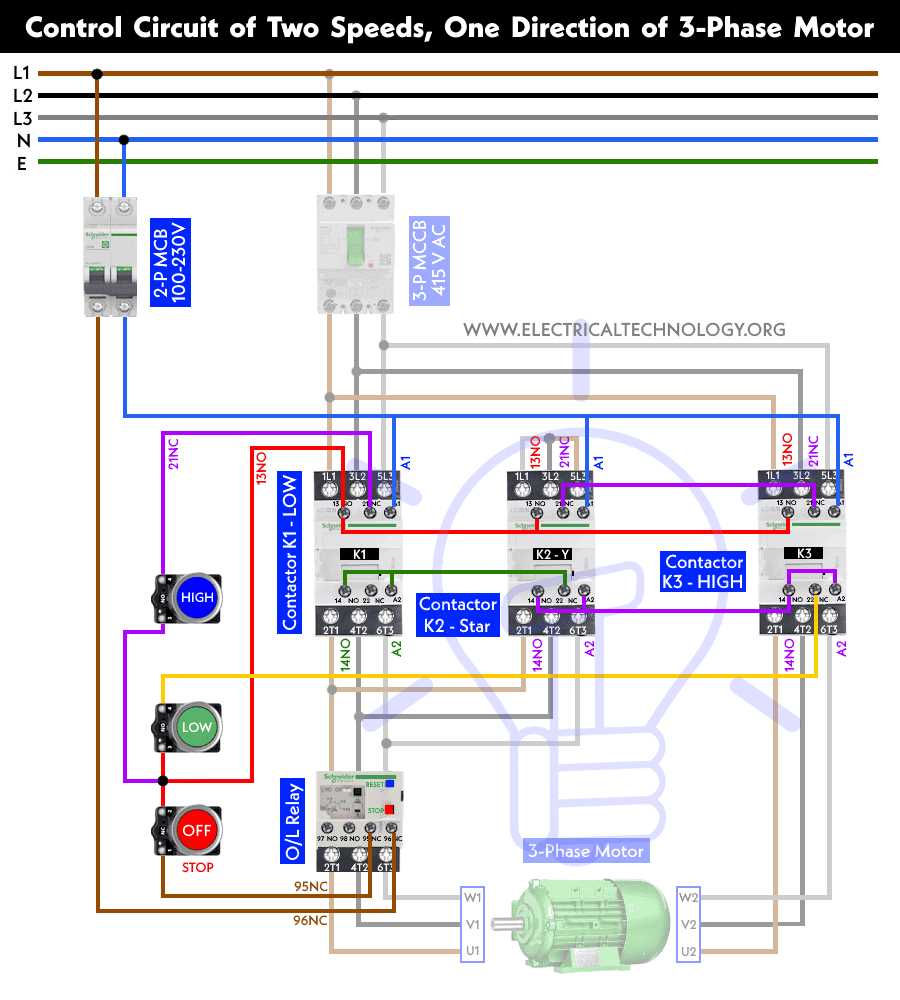

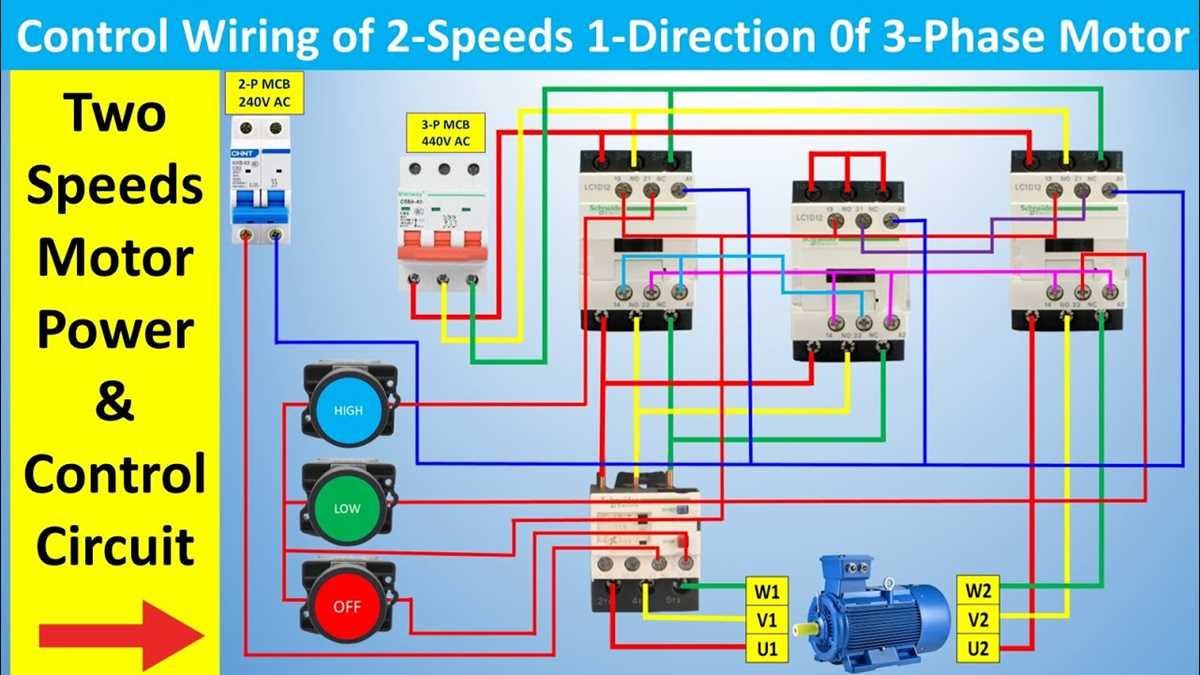

Use a selector switch to manage rotation rates by linking the designated speed control terminals. Confirm that each line corresponds to the correct winding to avoid reverse rotation or imbalance under load.
Inspect all conductors before activation for frayed insulation or loose connections. Apply insulating sleeves to exposed metal surfaces and secure cables with clamps to prevent vibration damage.
Test operation incrementally by applying low voltage first. Observe the device’s response at each rotation setting, check for abnormal heat generation, and ensure the current draw matches manufacturer specifications before full use.
Dual Rotation Device Connection Guide
Identify the main input and control terminals before connecting power. Use a cable rated above the unit’s maximum current and ensure each lead is secured to a clean, corrosion-free surface to maintain stable voltage.
Install the selector switch carefully by matching each control lead to the correct winding. Verify continuity with a multimeter to prevent reverse rotation or uneven operation when switching between settings.
Test operation gradually by applying partial voltage first. Observe heat levels, rotation consistency, and current draw, adjusting connections as needed. Ensure all cables are clamped and insulated to avoid vibration or short circuits during full operation.
Identifying Power and Control Leads on a Dual Function Device
Locate the primary power inputs by checking the thicker cables connected to the main terminals. These leads handle full current and must be connected to the correct voltage source to prevent overheating or operational failure.
Trace control connections carefully using a multimeter to ensure each wire corresponds to its designated setting. Labeling the lines prevents confusion when installing a selector switch or adjusting rotation modes.
Inspect insulation and mounting points on each lead to avoid short circuits or accidental contact with metallic surfaces. Use cable clamps or sleeves to secure all connections and reduce the risk of vibration damage.
Confirm functionality before full operation by applying limited power and observing device response. Check for smooth rotation, consistent torque, and proper switching between operational modes to verify all power and control leads are correctly identified.
