If you’re aiming to repair or replace specific components, knowing the layout of the cleaning machine is the first step. Referencing the layout chart allows you to identify each item quickly and understand its exact placement in the system.
Focusing on the assembly process, the main pressure regulator and nozzle connection play pivotal roles. Proper alignment of these parts ensures that the system runs smoothly and with optimal pressure. Always check seals and connectors for wear, as these areas are prone to wear and tear due to high fluid pressure.
For a smoother maintenance experience, ensure that the detergent injector and hose connections are thoroughly inspected. These are the parts that, when misaligned or clogged, can significantly reduce efficiency. Double-check the connections for any signs of corrosion, which can cause blockages or leaks.
To avoid damage during use, make sure the engine components, such as the air filter and spark plug, are properly maintained. These should be checked regularly to ensure they are clean and in working condition. Additionally, inspect the pump for any visible cracks or leaks, as pump failure is a common issue if maintenance is neglected.
Regularly checking all components using the provided layout ensures your equipment remains functional and durable over time. When performing repairs or replacements, follow the specific assembly instructions closely to maintain overall system integrity and prevent further complications.
Understanding the Components of Your Machine
For accurate assembly or maintenance, it is crucial to identify the right parts of the cleaning unit. Refer to the schematic to locate the high-pressure hose, trigger gun, and nozzle set, each having distinct sizes and connections. Pay attention to the pump assembly, where you can find inlet and outlet valves. These components often wear out due to constant pressure shifts, so replacement might be needed after heavy usage. The engine and the water tank should also be checked regularly for leaks or cracks that could affect performance.
Inspect the gasket and seals around the pump, as they often deteriorate and cause leaks. A malfunctioning or damaged O-ring can lead to loss of pressure, so be sure to replace them promptly. For optimal results, follow the manufacturer’s instructions when securing these seals to avoid misalignment.
Replacing the detergent injector or hose can also improve cleaning efficiency. Depending on the model, some versions include a detergent bottle attachment, while others may feature a built-in injector. Always verify compatibility before purchasing replacements. Regular inspection of the water intake filter ensures that debris does not block the flow, which could cause the engine to overheat or stall.
When assembling or disassembling, organize your tools and small parts in labeled compartments to prevent loss or confusion. Always have a few backup parts like filters, gaskets, and valves on hand to avoid downtime. Understanding each part’s role will not only extend the life of your unit but also help you troubleshoot issues quickly.

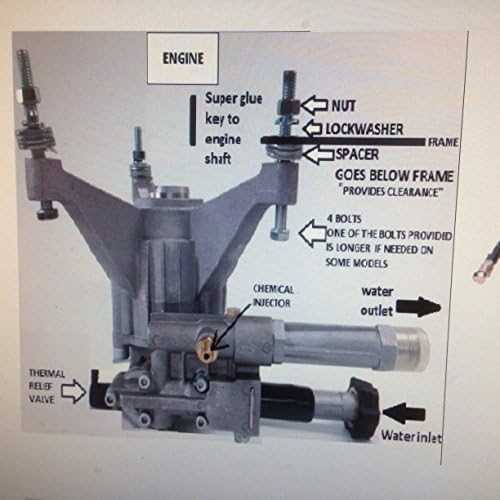

How to Identify and Replace the Pump in Your Pressure Cleaning Equipment
Check for signs of malfunction, such as weak or inconsistent water pressure, leaking from the pump area, or unusual noises during operation. These indicate a pump issue. To identify the exact problem, inspect the seals, pistons, and valves. A damaged or worn-out seal is a common cause of water leakage, while faulty pistons or valves can result in poor pressure performance.
If you confirm a pump failure, it’s time to replace it. Begin by disconnecting the machine from the power source and water supply. Use a wrench to remove the screws securing the pump to the frame. Carefully lift the pump out of the housing. Make sure to disconnect the water inlet, outlet, and any other attached components, noting their positions for reinstallation.
Once the old pump is removed, compare it with the new one to ensure compatibility. Align the new pump with the frame and connect the water inlet and outlet hoses. Tighten the screws to secure the pump in place. Reconnect any other components, ensuring they are properly positioned. Lastly, check for leaks and perform a test run to ensure the new pump functions as expected.
Step-by-Step Guide to Fixing the Spray Wand Assembly
First, disconnect the water supply and power to avoid accidents. Examine the wand for cracks or damage. Replace any broken parts, as they can affect water flow and performance.
Remove the nozzle from the wand by unscrewing it. Clean the nozzle thoroughly, checking for blockages. Use a pin or small brush to clear any debris obstructing the water holes.
Inspect the O-ring seals at both ends of the wand. If they appear cracked or worn out, replace them. Make sure the new O-rings are positioned correctly to prevent leaks.
Check the trigger mechanism for proper movement. If it sticks, clean the internal parts with a brush and lubricate them with silicone grease. If the trigger is broken, replace it.
Reassemble the wand by securely fastening the nozzle and reconnecting it to the hose. Tighten the connections, ensuring there are no leaks. Test the wand to confirm proper function and adjust the nozzle spray pattern if necessary.
