To set up a 24-volt power system for your boat, begin by connecting two 12-volt batteries in series. This will give you the necessary voltage to run the system without overloading your equipment. Make sure the positive terminal of one battery connects to the negative terminal of the other battery to create the series circuit.
Next, connect the positive and negative terminals of the battery setup to the power input of your unit. Double-check each connection to ensure there is no risk of loose or exposed wires that could cause a short circuit. Proper insulation of each wire is also a key safety measure.
Once the power connections are secure, verify that all components are rated for 24 volts. Using incompatible parts can lead to overheating or malfunction. It’s a good idea to use a fuse or circuit breaker for added protection, ensuring your system is safe during operation.

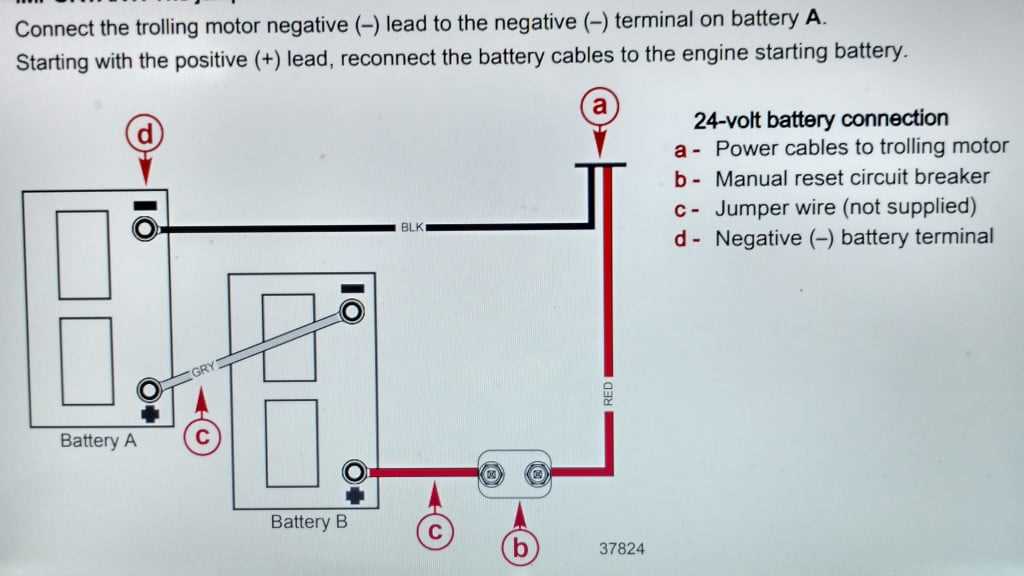

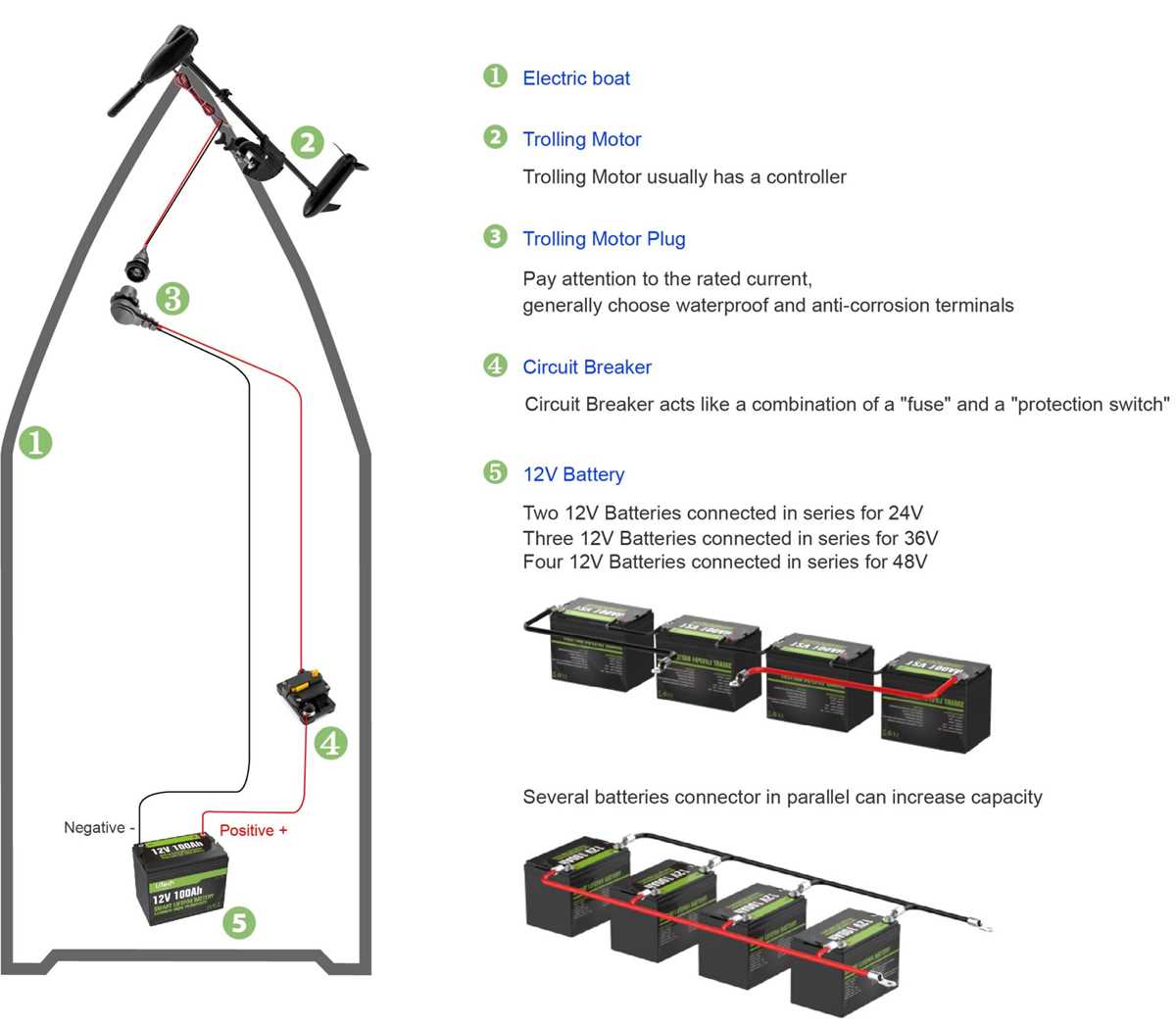

Trolling Motor 24 Volt Wiring Diagram
To create a 24-volt power source, connect two 12-volt batteries in series. The positive terminal of one battery should be linked to the negative terminal of the other. Then, connect the remaining positive and negative terminals to your equipment, ensuring all connections are secure and insulated. This configuration will provide the necessary power without damaging any components.
After establishing the power connection, inspect all components for proper ratings. Ensure that the wiring, connectors, and components are all rated for 24 volts to avoid overheating or failure. For added protection, integrate a fuse or circuit breaker into the system to prevent potential damage during use, ensuring safe operation of the entire setup.
How to Connect Two 12 Volt Batteries in Series for 24 Volts
Start by selecting two 12-volt batteries with similar capacity and charge levels. This ensures that the batteries work together without one being overworked or damaged. Place the batteries next to each other, ensuring the positive terminal of one is aligned with the negative terminal of the other.
Connect the negative terminal of the first battery to the positive terminal of the second battery. This is the critical connection that forms the series circuit. Use high-quality connectors to ensure a strong, secure connection, as loose terminals can result in power loss or safety issues.
Now, use the remaining positive terminal of the first battery and the negative terminal of the second battery to connect your system. The first battery’s positive terminal will provide the starting point for the power output, while the second battery’s negative terminal will complete the circuit. This will provide a 24-volt output from the two 12-volt batteries in series.
Before turning on the system, double-check all connections to ensure that no wires are loose or exposed. Exposed wires could lead to shorts, which might damage the batteries or other connected components. It’s best to insulate each terminal connection with electrical tape or heat shrink tubing to avoid such risks.
Make sure to use appropriate gauge wires that can handle the total current draw. For a 24-volt setup, you’ll want to select wires that are thicker than standard 12-volt wiring to avoid overheating. Check the amperage rating of the wire and choose one that matches or exceeds the expected current flow.
For added protection, consider installing a fuse or circuit breaker between the battery pack and the rest of your equipment. This will prevent the circuit from damage if something goes wrong, such as a short circuit or power surge, and is a good safety measure for your system.
Once everything is connected and secured, power on your system. If done correctly, the setup will provide a steady 24-volt output, allowing you to power devices that require this voltage level. Always monitor the system during the first use to check for any signs of issues like excessive heat or unsteady performance.
