Ensure the power feed and control conductors are connected using color-coded terminals to prevent shorts and maintain consistent current flow. Red lines carry positive voltage, while black lines serve as grounding points.

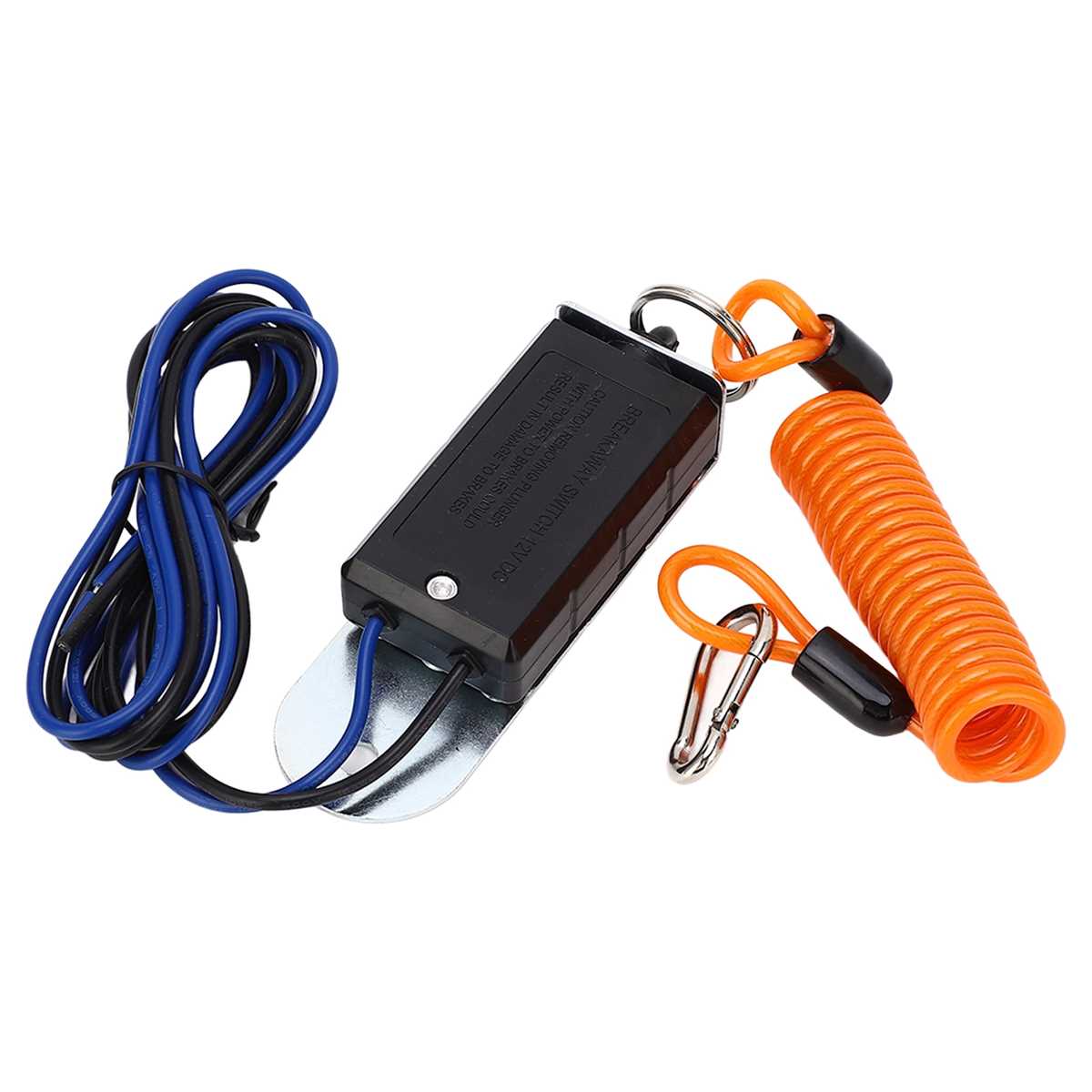

Attach the emergency stop actuator to a solid metal surface near the coupling to allow rapid brake engagement. Verify the actuator lever moves freely without obstruction and maintains tension on the internal cable.
Use corrosion-resistant connectors and apply dielectric grease at each joint to maintain conductivity under moisture exposure. Twist-on caps or crimped rings provide stable connections without loosening during transit.
After all connections are made, test each lighting and braking circuit individually. Confirm that the brake activation triggers the towed unit’s stop lamps and that all auxiliary circuits receive the proper voltage before deployment.

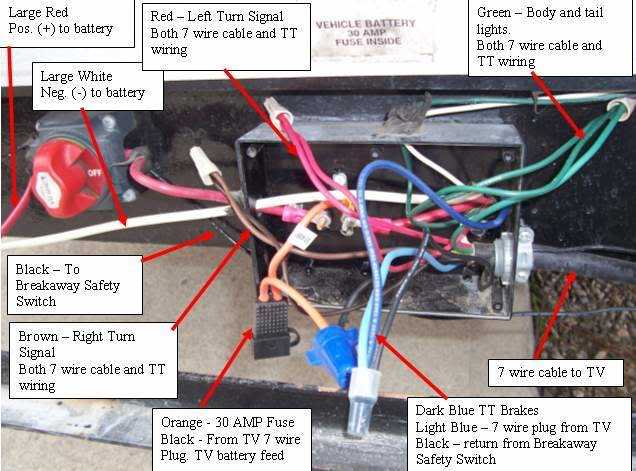

Circuit Connections for Safe Towing with Emergency Brake Systems
Connect the main power lead directly to the battery terminal using a fused line rated for the current draw. Ensure the fuse matches the maximum amperage of all auxiliary circuits to prevent overheating or fire hazards.
Attach the ground wire to a clean, bare metal surface on the frame. Verify continuity using a multimeter to avoid intermittent connections that can cause lighting failures during travel.
Integrate the emergency actuator cable into the braking circuit at the designated terminal. Check that the activation lever engages fully and that the brake lights illuminate immediately upon release of the actuator.
Use color-coded terminals for signal, stop, and tail circuits to reduce the risk of misconnection. Crimped connectors and dielectric grease maintain secure and corrosion-resistant joints throughout the assembly.
After installation, conduct a step-by-step inspection of each function. Test turn signals, stop lamps, and emergency engagement separately to confirm all circuits respond correctly under load before beginning towing operations.

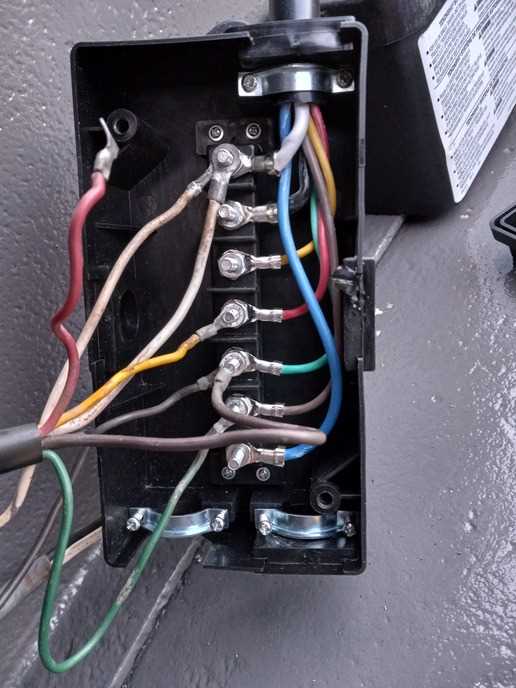

Identifying Connector Pins and Emergency Terminal Locations
Start by labeling each power and signal lead according to its function. Use a pinout chart for reference to match stop, turn, and running light circuits precisely and prevent cross-connection errors.
Inspect the ground terminal on the assembly for corrosion or paint. Clean and tighten the connection to guarantee consistent circuit completion under load conditions.
Locate the emergency actuator terminals near the battery feed. Confirm correct polarity to ensure the engagement mechanism operates instantly if the towing unit separates unexpectedly.
Use a multimeter to test each pin individually.
- Signal circuits should show continuity only when activated
- Power pins must deliver full voltage under load
- Ground points should read minimal resistance
This process verifies that each connection corresponds to its intended function.
After identifying all terminals, secure connectors with lock clips and protective covers to prevent loosening from vibration. Conduct a final test of all lights and emergency actuation before departing, ensuring safe and reliable operation.
