Step by Step 4 Pin Trailer Light Wiring Diagram

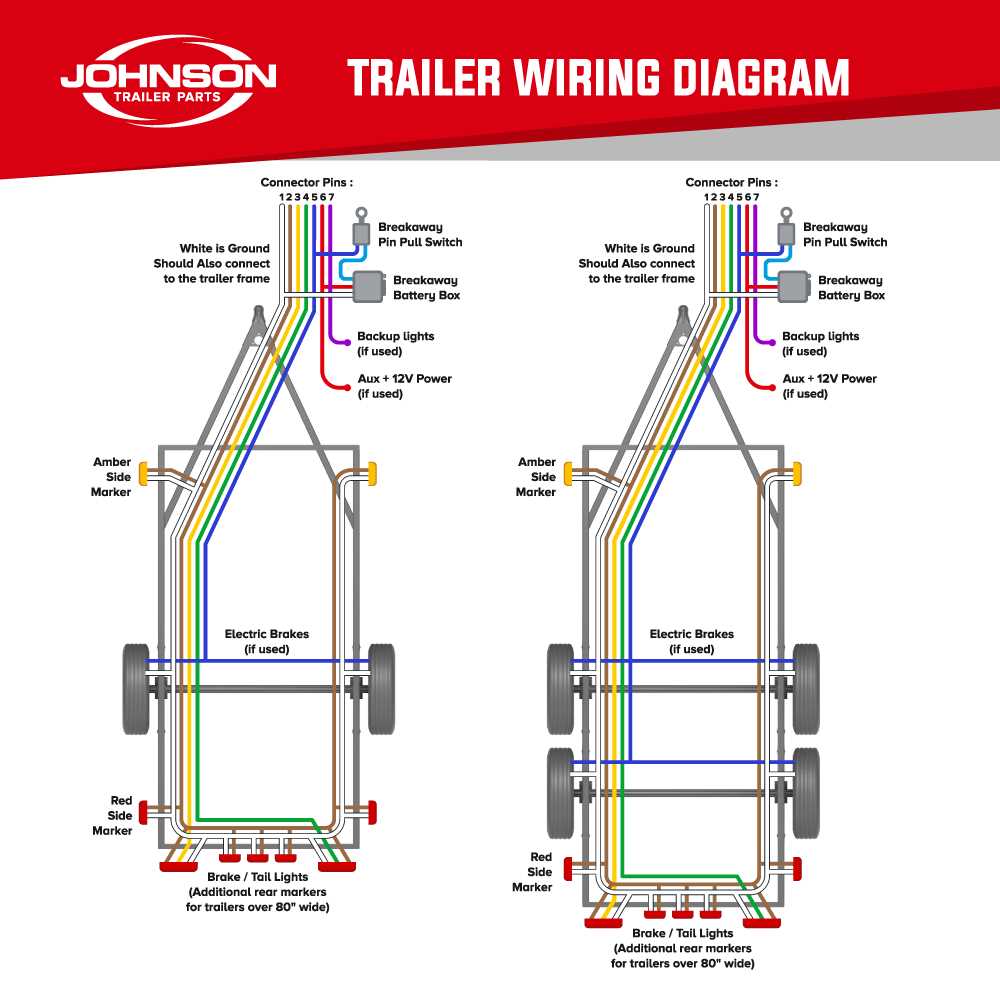

trailer light wiring diagram 4 pin

Before connecting a vehicle to a trailer, identify the correct terminals to ensure everything works smoothly. The most common setup uses a 4-pin connection, which corresponds to ground, left turn signal, right turn signal, and brake lights. Make sure you are aware of the function of each wire before starting the installation.

When making the connections, the ground wire is typically the one attached to the vehicle’s frame. The left and right turn signals should be connected to their respective pins, and the brake wire is connected last. Use proper connectors to avoid corrosion or loose contacts, which can cause failures during use.

If there are any issues with the setup, check for faulty grounding or broken wires. Make sure to double-check the pinouts on both the vehicle and trailer sides, as mismatched connections may prevent proper operation of the signals and brake system.

Understanding the 4-Pin Electrical Setup

For proper setup, first identify each wire’s function in the 4-pin connector. There are four key terminals to recognize: ground, left turn signal, right turn signal, and brake lights. Incorrect connections can cause failure in signaling, resulting in potential safety hazards.

Start with the ground wire, typically marked with a black or white color. This should always be connected to the vehicle’s frame to ensure a solid connection. Next, the left and right turn signals are usually designated by green and yellow, respectively. The brake wire, often red, should be connected last to the correct pin to activate braking signals.

For longevity, consider using corrosion-resistant connectors and avoid bare wire exposure. Insulating each connection properly will prevent damage from moisture or vibration during use. Using heat shrink tubing is a great way to protect exposed wires and ensure they stay connected securely.

If the signals aren’t functioning correctly, the problem is often due to faulty grounding or loose wires. Double-check both ends of the connection, ensuring there are no broken or frayed wires. A quick way to troubleshoot is to test continuity with a multimeter to ensure all connections are properly made.

How to Identify the Wires for a 4-Pin Trailer Light System

Before connecting any system, correctly identifying the function of each wire is a critical step. In a standard 4-pin setup, you will find four distinct connections: ground, left turn signal, right turn signal, and brake. Knowing how to properly identify each is key to ensuring everything works as expected.

The ground wire is typically black or white and should be connected to the vehicle’s chassis or metal frame. This wire completes the circuit for the entire system. A solid ground connection prevents flickering or erratic behavior in the rest of the system.

Left and Right Turn Signals

The left and right turn signal wires are usually identified by color. In most configurations, the left turn signal wire is green, while the right turn signal is yellow. These wires are critical for signaling direction, and connecting them correctly will ensure your turn indicators operate properly.

In some systems, the wires may be color-coded differently, so always check your vehicle’s manual or the connector’s labeling. If the wires are not marked, you may need to use a test light or multimeter to verify the function of each wire by activating the turn signals one at a time.

Brake Light Wire

The brake light wire is usually red in color. This wire should be connected to the braking system of the vehicle. It is important to ensure this wire is securely connected, as the brake signal is crucial for safety. A poorly connected brake wire could result in the failure of your brake lights, which can be dangerous for both the driver and those around them.

If you’re unsure about the function of any wire, use a multimeter to check voltage on each pin while activating the relevant vehicle function, such as the left or right turn signal, brake, or hazard lights. This will help you trace each wire’s specific role in the system.

Once you’ve identified and connected each wire, test the system before heading out on the road. Confirm that all signals, including brake lights, function properly. If you notice any malfunctions, double-check your connections, especially the ground wire, as poor grounding is a common cause of electrical issues.
