Ensure secure electrical links by matching each conductor to its correct terminal according to standardized color codes. Incorrect connections can cause brake failures or lighting malfunctions and compromise safety during transit.
Use a multimeter to verify continuity before finalizing the setup. Test each channel individually to confirm the correct operation of stop lamps, indicators, and auxiliary circuits.
Select terminals rated for automotive current levels, typically 10–15 amps for indicator and tail functions and 20–30 amps for supply lines. Overloaded connectors may overheat and damage insulation.
Arrange cables to avoid sharp bends and contact with moving components. Protect exposed sections with split tubing or spiral wrap to reduce wear and prevent short circuits over time.
Secure all connections with proper fasteners or locking clips to maintain consistent contact under vibration. Loose terminals often result in intermittent faults or complete circuit failure.
Label each lead clearly using weatherproof tags to simplify future inspections or replacements. Consistent labeling reduces diagnostic time when troubleshooting trailer lighting issues.
After assembly, perform a full functional test by operating all vehicle controls while observing the response on the trailer interface. Confirm synchronization of brake lights, turn signals, and auxiliary power lines before taking the trailer on public roads.
Trailer 7 Plug Wiring Guide for Safe Towing Connections
Match each conductor to the designated terminal based on standard automotive color codes. Incorrect placement can disrupt braking, indicators, or auxiliary power lines, creating safety hazards during towing.
Verify continuity using a multimeter before securing connections. Test each function individually to ensure tail lamps, brake signals, and side markers operate correctly.
Choose terminals rated for appropriate current loads. Indicator and tail lines typically require 10–15 amps, while supply circuits demand 20–30 amps to avoid overheating.
Route cables to prevent sharp bends and avoid contact with moving parts. Use protective tubing or spiral wraps to minimize abrasion and insulation damage over time.
Secure terminals using locking clips or fasteners to maintain consistent contact under vibration. Loose connections often result in intermittent faults or total failure of the interface.
Label each wire with weatherproof tags for easy identification. Clear labeling simplifies troubleshooting and reduces maintenance time during inspections or replacements.
Conduct a final operational check by activating all controls while monitoring response at the connected unit. Confirm brake lights, turn signals, and auxiliary circuits function in synchronization before heading onto public roads.
Pin Function Assignments for Trailer Connectors

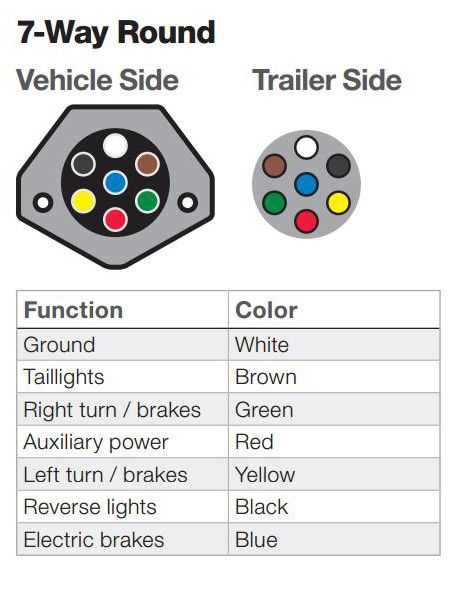

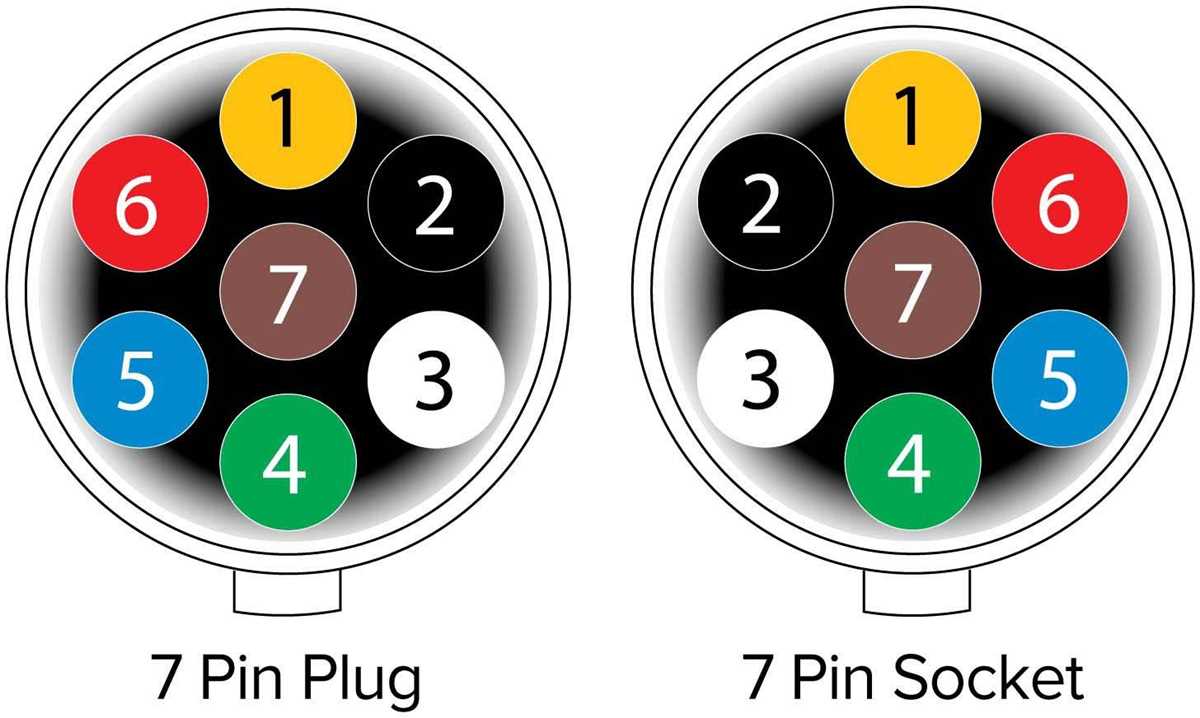

Assign each terminal according to the standard seven-pin layout. Pin 1 handles the left turn and brake signals, while pin 2 carries the rear ground connection for the entire system.
Pin 3 should be dedicated to the right indicator and brake output. Ensure that the color-coded conductor matches the vehicle’s signal wire to avoid cross-feed issues with other functions.
Reserve pin 4 for the tail lamps and side markers, providing continuous illumination when running lights are activated. Check amperage ratings to prevent overheating of the contacts during extended operation.
Pin 5 provides auxiliary 12V power for charging or running small accessories. Use a fused line rated between 10–15 amps to protect against shorts and overcurrent conditions.
Pin 6 and pin 7 manage the electric brake controller output and reversing lamps, respectively. Test these lines under load to confirm proper engagement before towing to maintain road safety and compliance.
