Match each control wire to the correct terminal using standard color codes: red for power, white for heating, yellow for cooling, green for fan, and common blue or black. Proper matching prevents short circuits and ensures reliable operation.
Secure all connections by stripping wires to expose approximately 3/8 inch of conductor and inserting fully into terminal clamps. Tighten screws firmly without over-compressing to avoid damaging the metal strands.
Test the system before closing panels by activating each function individually. Confirm that heating, cooling, and fan cycles respond correctly to input adjustments and that no circuit trips or sparks occur during operation.
Label wires at both ends when multiple lines are involved to simplify future maintenance. Maintaining consistent labeling reduces errors and speeds up troubleshooting or system expansion without risking misconnection or downtime.

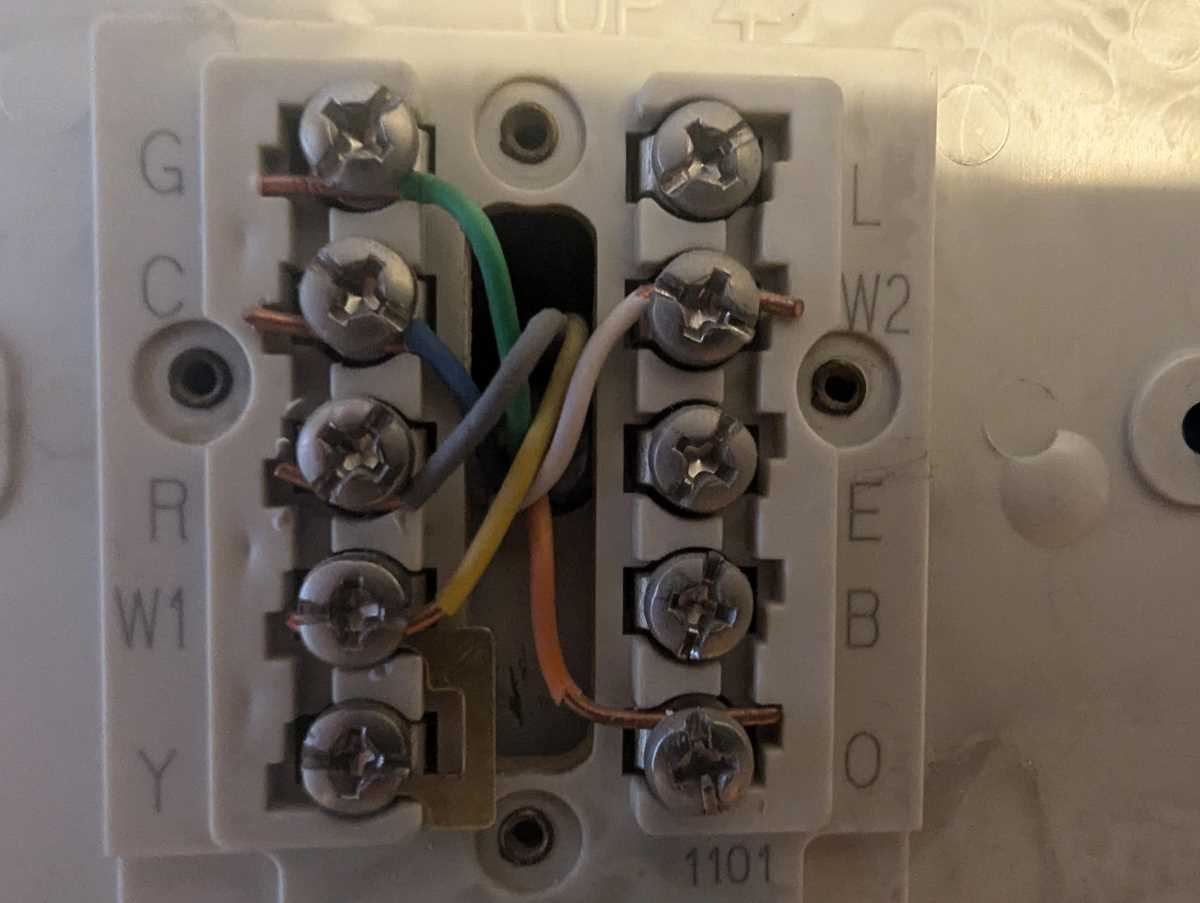

Identifying Control Unit Terminals and Color Codes
Locate each terminal on the base unit and compare to standard color assignments: red for 24V power, white for heat call, yellow for cooling call, green for fan activation, and blue or black for common return. Proper identification prevents misconnection and system faults.
Inspect each wire before connection for insulation damage, corrosion, or frayed ends. Replace any compromised conductors to maintain secure electrical contact and reliable system response.
Mapping Terminal Functions
Label terminals according to function before making connections. Use consistent codes on both ends of the control line to simplify installation and future troubleshooting. This helps prevent reversed connections that can cause continuous heating or fan operation.
Measure voltage at the power terminal using a multimeter. Ensure 24V AC is present before connecting other lines. Absence of voltage may indicate blown fuses or upstream control issues that must be corrected first.
Check each signal line individually by temporarily activating the control. Heat, cooling, and fan signals should trigger the corresponding relay inside the heating system base. If no response occurs, verify terminal assignments and wire integrity.
Color Coding Best Practices
Maintain standard color coding throughout the installation: red to R, white to W, yellow to Y, green to G, blue or black to C. Consistent use of color reduces errors during installation and simplifies maintenance for future service.
Document all terminal assignments and color matches in a simple chart. Visual records of connections reduce troubleshooting time and ensure anyone servicing the system can quickly understand the layout without guesswork.
Connecting Control Wires to Heating System Components
Match each control line to the correct relay or terminal inside the heating system unit. Red wire connects to the 24V power input, white to the heating relay, yellow to the cooling relay, green to the fan relay, and blue or black to the common return.
Step-by-Step Connection

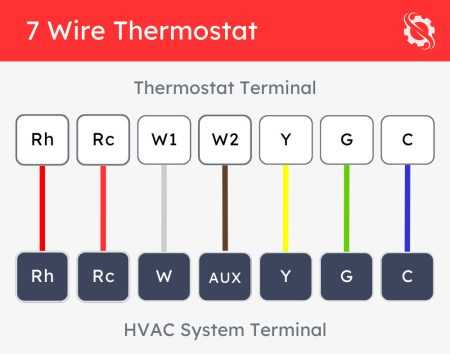

| Wire Color | Terminal/Function |
|---|---|
| Red | R – 24V Power |
| White | W – Heat Activation |
| Yellow | Y – Cooling Activation |
| Green | G – Fan Control |
| Blue/Black | C – Common Return |
Strip each conductor approximately 3/8 inch before insertion and tighten terminal screws firmly. Loose connections can cause intermittent operation or complete failure of heating, cooling, or fan cycles.
Verifying Connections
After securing each line, apply 24V AC and test each function individually. Heat, cooling, and fan relays should engage properly. Any non-responsive terminal requires rechecking color match, wire integrity, and screw tightness.
Label each wire at both ends and document the terminal assignments. This prevents confusion during maintenance or future system expansions and ensures each line can be traced quickly without risk of misconnection.
Testing System Operation and Troubleshooting Issues
Apply power to the heating system and check each control function individually. Activate the heating call, cooling call, and fan independently to confirm relays engage and cycles respond correctly. Observe any unusual noises or delays in response.
Measure voltage at each terminal during activation. Red to white should read approximately 24V AC when the heating signal is engaged, and yellow to common should show the same when cooling is activated. Deviations indicate poor connections or faulty relays.
Step-by-Step Diagnostic Procedure
- Verify power input to the control board using a multimeter.
- Check each colored line against its intended terminal for continuity.
- Activate each function separately and observe mechanical response of relays.
- Inspect all screws and terminal clamps for looseness or corrosion.
- Replace any damaged connectors or conductors and retest.
Check fan operation independently by sending a signal from the control unit. Ensure motor spins smoothly without unusual vibrations. Faulty fan signals often indicate incorrect terminal connection or a shorted relay coil.
Common Error Indicators
- No heating response: check red and white lines and fuse integrity.
- No cooling response: verify yellow line continuity and relay operation.
- Fan runs continuously: inspect green line for cross-contact or reversed connection.
- Intermittent operation: test for loose terminals and corrosion at connectors.
Document each test result and any corrections made. This allows future troubleshooting to proceed faster and reduces risk of repeating misconnection or ignoring minor faults that could escalate.
Retest all functions after adjustments to confirm stable system operation. Only close panels and restore full operation when heat, cooling, and fan cycles perform reliably under multiple activation scenarios.
