Use color-coded conductors with a minimum gauge of 16 AWG for brake and indicator connections to maintain voltage stability and reduce heat buildup. Secure terminals with corrosion-resistant connectors to prevent intermittent failures under vibration or moisture exposure.
Integrate inline fuses rated 10–15 A for each circuit branch. Route positive and negative lines separately to avoid electromagnetic interference from other onboard electronics and ensure consistent illumination across all lamps.
Test each path with a multimeter before final installation. Verify continuity, voltage drop, and signal polarity to ensure correct operation of brake, turn, and parking indicators without risking short circuits or blown bulbs.

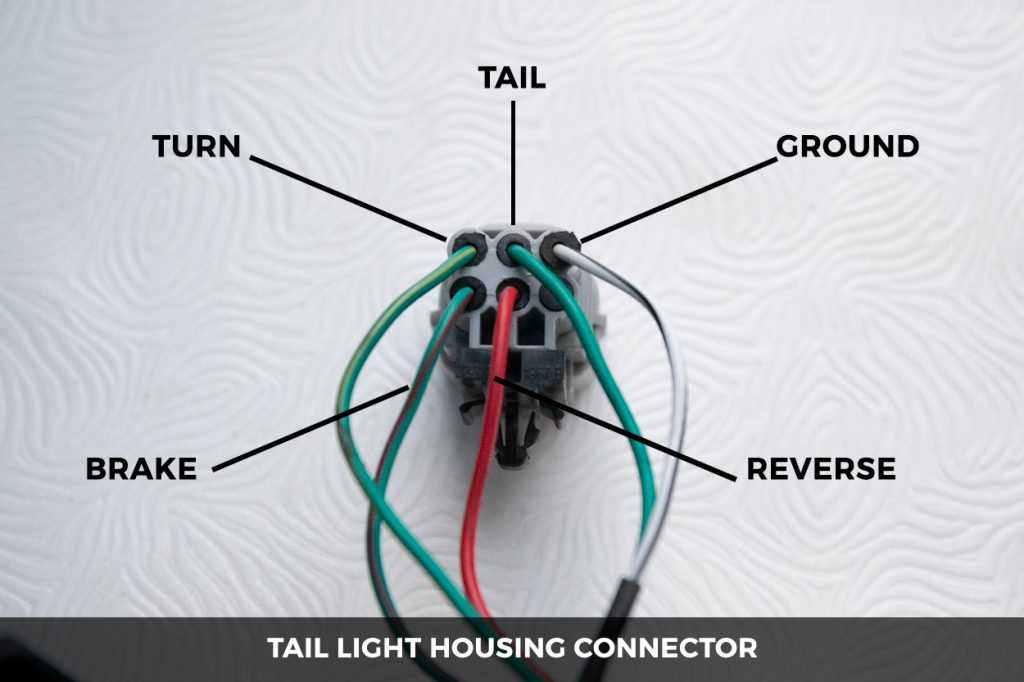

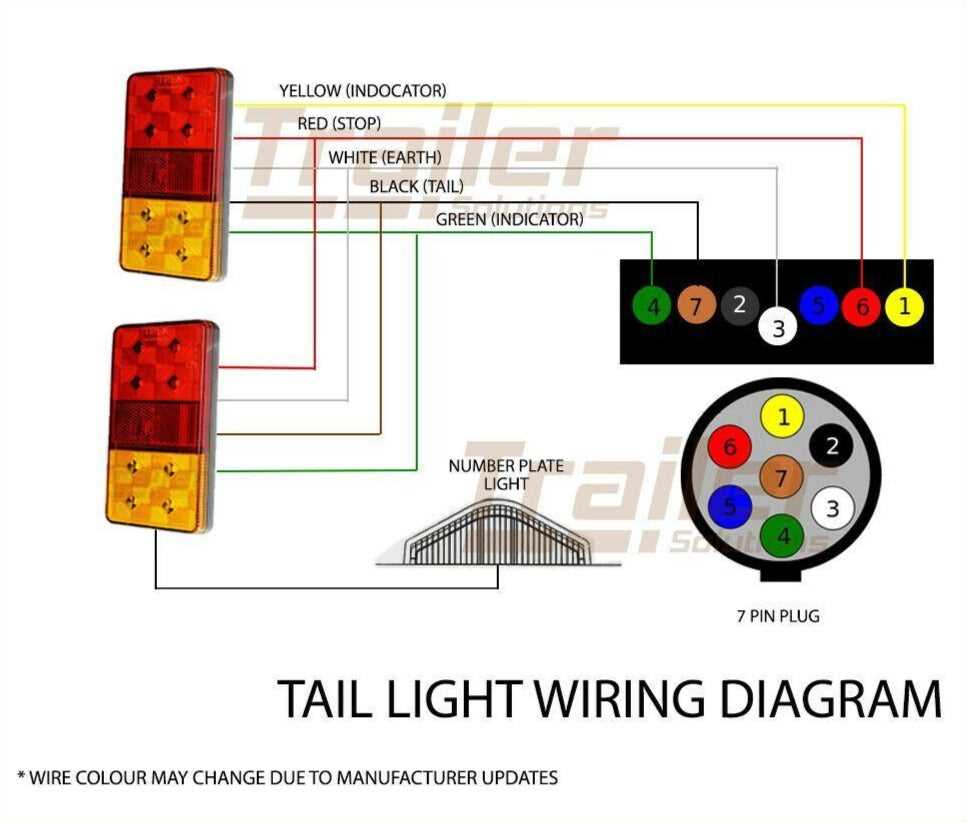

Rear Signal Connection Layout
Match color-coded conductors to their respective functions: red for brake, amber for indicators, and black for ground. Ensure connectors are crimped and insulated to prevent short circuits under vibration or moisture exposure.
Route power and return paths separately along the vehicle frame using clips or conduit. Maintain a minimum bend radius of 50 mm to avoid stress on insulation and prevent premature conductor fatigue, especially near hinge points or suspension mounts.
Test each section with a multimeter before final assembly. Check for correct polarity, voltage drop under load, and continuity to guarantee consistent performance of brake and indicator lamps and reduce the risk of blown fuses or flickering signals during operation.
Identifying Wire Colors and Signal Functions
Assign standard color codes for each signal path to simplify maintenance: red for brake activation, amber for indicators, green for running circuits, and black for chassis ground. Label each conductor with heat-shrink tags to prevent misconnection during assembly or repairs.
Separate high-current lines from signal lines to minimize electromagnetic interference. Use twisted pairs for return and ground paths in indicator loops to maintain consistent flashing patterns and prevent erratic operation.
Brake and Stop Signal Identification
Trace the brake conductor from the switch to the lamp socket using a multimeter. Verify voltage increase of 12–14 V when the pedal is depressed, ensuring the signal path is intact and fused correctly.
Indicator Function Verification
- Check left and right blinker paths by applying test current from the control relay.
- Observe pulse frequency of approximately 60–90 cycles per minute for proper timing.
- Ensure connectors are secure to prevent dimming or intermittent operation under vibration.
Ground lines require low resistance below 0.5 Ω for stable operation. Measure continuity between lamp socket and chassis to confirm reliable connection and avoid flickering during braking or signaling.
Color deviations can occur between models. Always cross-check manufacturer schematics and test each path before installation to maintain correct signal mapping and prevent fuse blows or short circuits.
Document every modification with a labeled sketch or table. Record conductor colors, functions, and fuse ratings to facilitate troubleshooting, future upgrades, or replacements without ambiguity.
