Install a single-pole controller to regulate illumination units directly from the main power line. Ensure that the live conductor feeds the switch box first, preventing backfeed into neutral paths and reducing the risk of short circuits. Label each conductor clearly using color-coded insulation for instant recognition during maintenance.
Use insulated terminals and secure junctions when extending feed lines to multiple ceiling luminaires. Avoid twisting bare conductors together; instead, rely on mechanical connectors or push-in terminals rated for the amperage of your system. Maintain consistent polarity to prevent flickering and voltage drop across the network.
Consider loop-in strategies for multi-point control of a single fixture. Running phase conductors in parallel with traveler cables allows multiple control points without overloading the circuit. Test each connection with a voltage meter before closing the junction box to ensure continuity and safe operation.
Grounding every metallic enclosure reduces stray voltage risks and enhances safety compliance. Attach ground conductors to mounting screws or dedicated lugs and verify continuity using a tester. Secure excess cable length in loops to minimize tension and mechanical stress over time.
Document each junction configuration with labeled diagrams for future troubleshooting. Note conductor colors, terminal points, and load ratings. This practice minimizes errors during upgrades and provides a clear reference for electricians handling modifications years later.

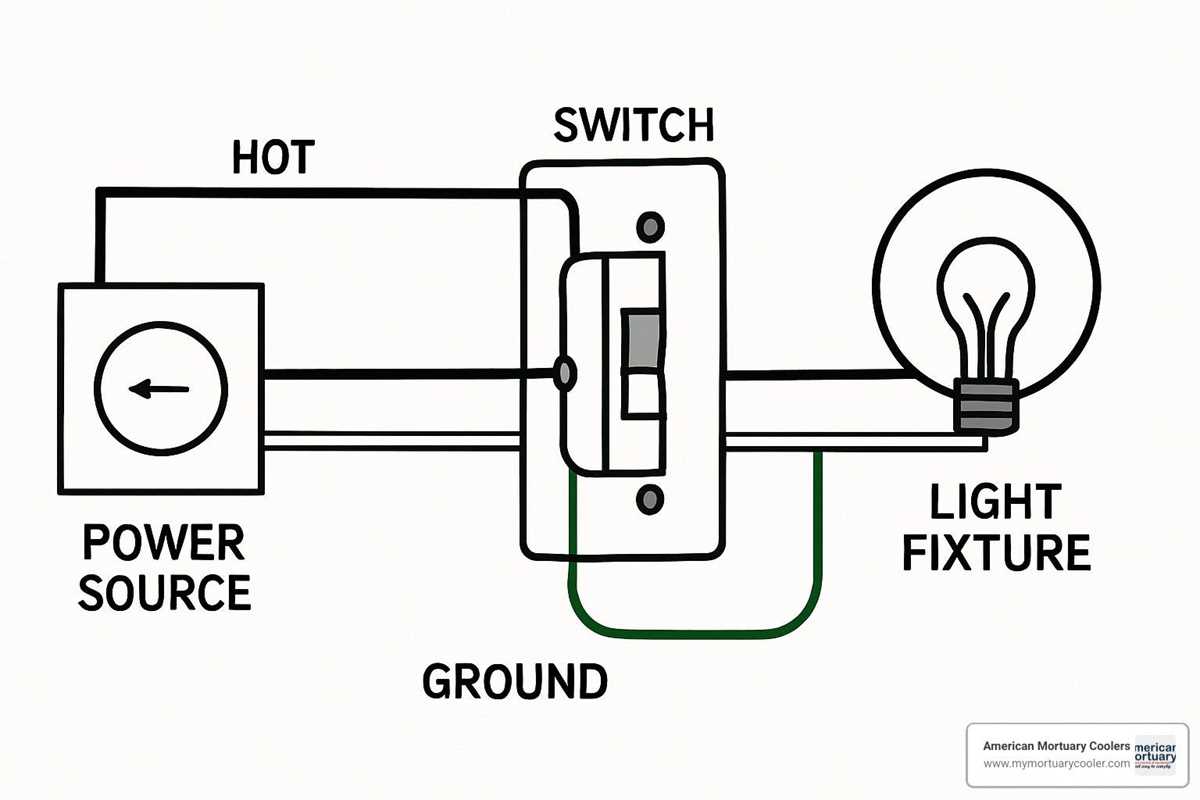

Switch and Light Wiring Diagram

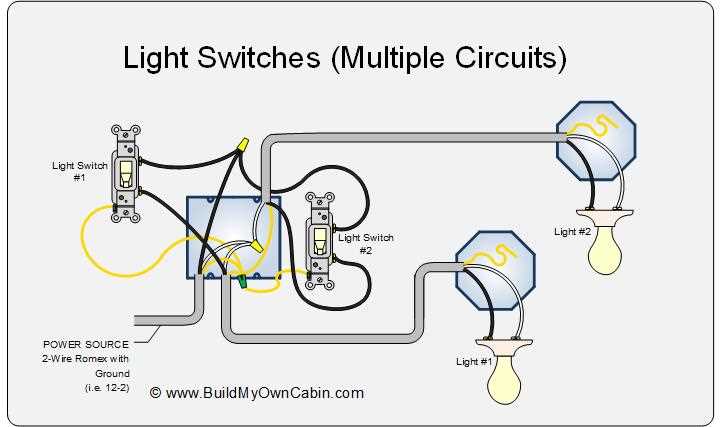

Install the toggle control on a dedicated circuit with a 14/2 NM-B conductor, ensuring the hot wire connects to the brass terminal while the neutral bypasses the actuator directly to the fixture. Ground the enclosure using a bare copper line to avoid shocks. For a single toggle controlling multiple luminaires, link the outgoing leads in parallel at the first junction box and confirm continuity with a multimeter before energizing the system.
For a three-way setup, run a 14/3 cable between the two toggles, assigning red and black travelers to the terminals marked for interchange, while keeping the white conductor as neutral continuity. Secure all connections with wire nuts rated for at least 600V and wrap with electrical tape for mechanical stability. Label each terminal with permanent markers to simplify future maintenance or troubleshooting of the electrical path.

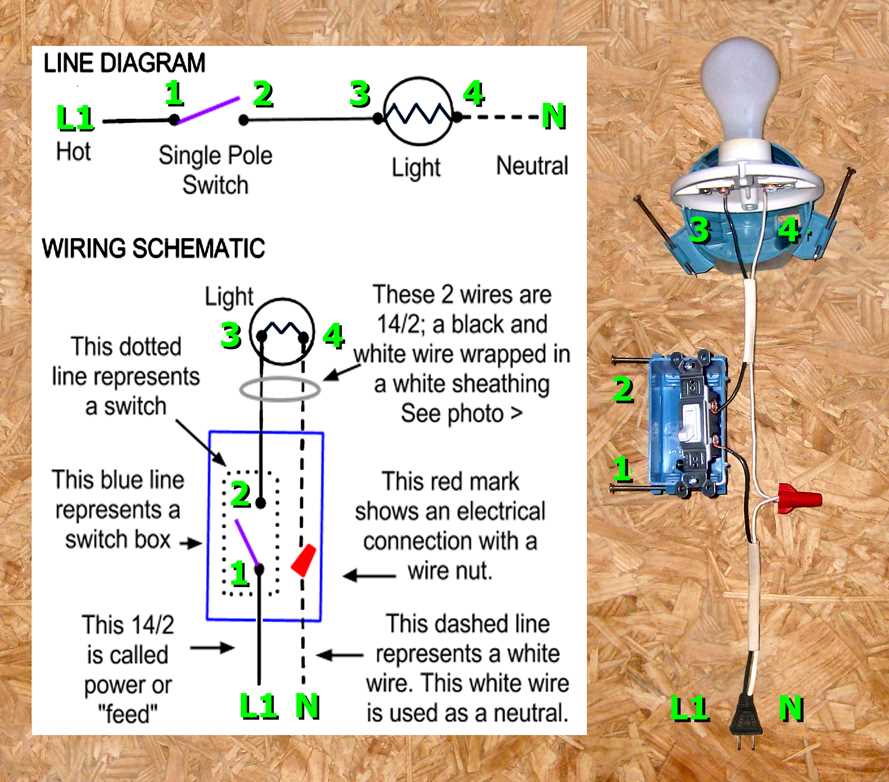

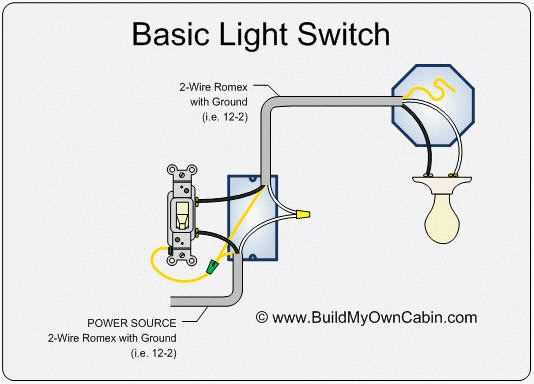

How to Connect a Single-Pole Switch to a Ceiling Light
Begin by cutting power at the breaker to prevent shocks. Confirm the absence of voltage using a tester before touching any copper conductors.
Locate the incoming hot cable and the outgoing cable leading to the fixture. Identify the black (live), white (neutral), and bare or green (ground) strands in each sheath.
- Attach the incoming hot wire to the first terminal on the toggle device.
- Connect the outgoing black conductor to the opposite terminal.
- Join all neutral wires directly with a wire nut inside the ceiling box.
- Twist the bare copper wires together, then connect to the metal screw on the switch plate if present.
Mount the toggle device into the wall box securely, ensuring no copper is exposed outside the terminals. Fold the wires neatly to prevent pinch points.
Ceiling Fixture Connections
At the overhead fixture, attach the black conductor from the switch to the brass terminal on the socket holder. Connect white cables together, and secure the ground to the fixture frame or green screw. Ensure firm connections to avoid arcing.
- Double-check that all connections are tight and insulated with approved wire nuts.
- Restore power at the panel and test the toggle mechanism.
- Replace the cover plate once operation is confirmed.
