Begin by identifying the main control port on your model board and matching each pin to the corresponding actuator or motor lead. Use color-coded cables to reduce connection errors and verify polarity before applying power.
Ensure that each channel is linked to the correct servo input. Label each cord and double-check alignment with the control interface, as mismatched signals can cause erratic movement or loss of control during operation.
For electronic speed units, connect the throttle line first, then secure ground and voltage paths. Test each motor individually with minimal power to confirm signal responsiveness and prevent damage to components.
Keep signal units and control boards separated from high-current wires to prevent interference. Use heat shrink tubing or insulating sleeves at exposed connections to protect against shorts and maintain stable performance.
RC Model Signal Module Connections
Connect the main control unit directly to the flight board using three-pin servo leads, ensuring the ground, signal, and voltage lines match the correct orientation. Incorrect polarity can damage the board instantly.

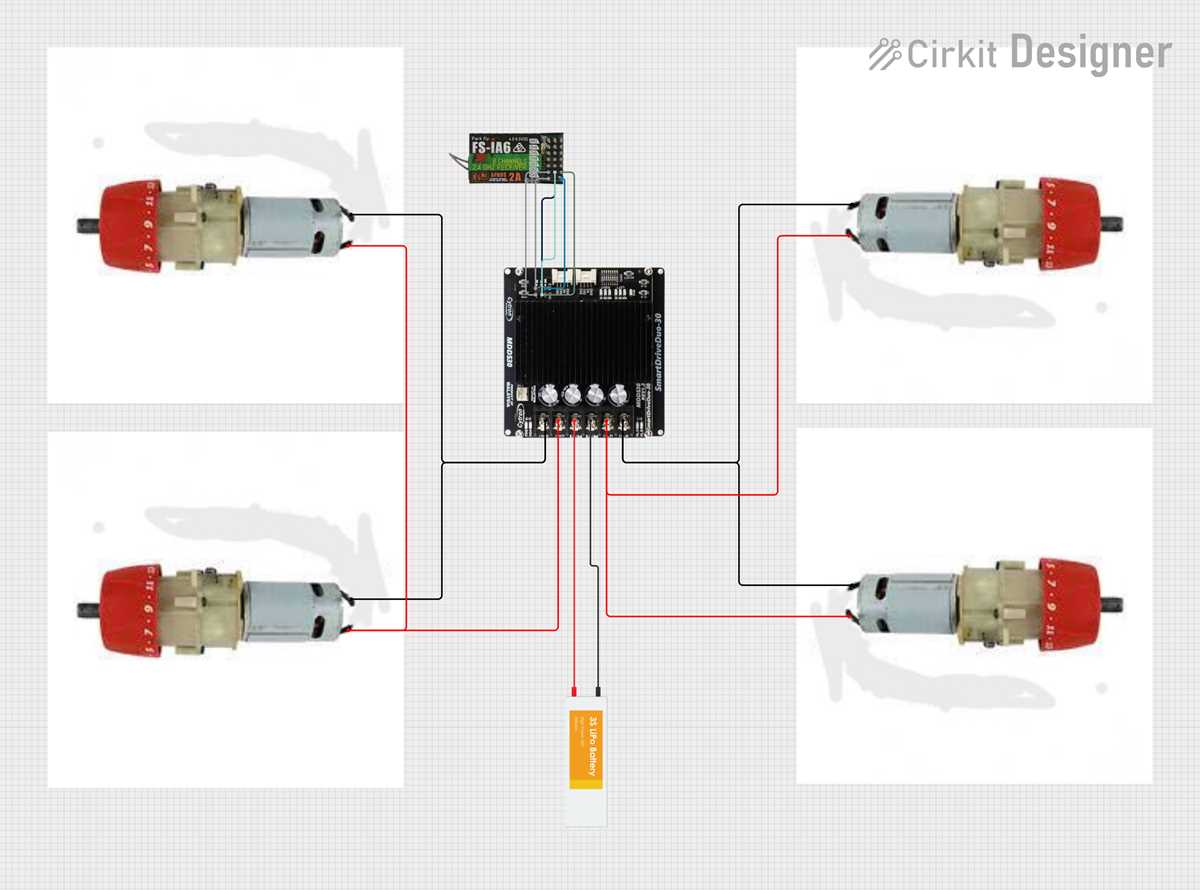

For multi-channel setups, assign each control line to a dedicated port. Label each extension and test signal flow individually before securing components inside the frame to prevent overlap or interference.

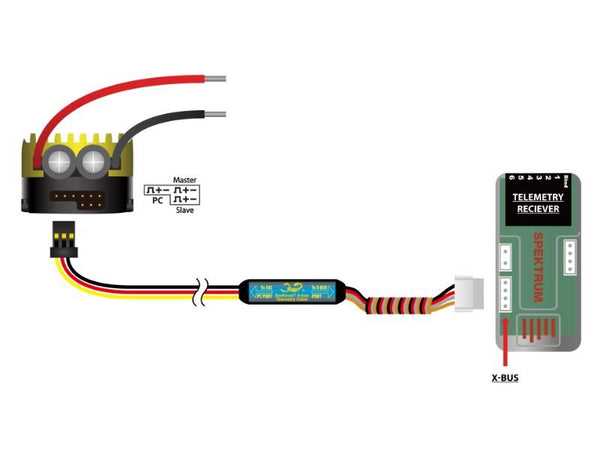

When linking electronic speed controllers, attach the throttle line first, followed by power and ground. Verify motor rotation after every adjustment and adjust endpoints in the transmitter for balanced response.
Securing and Insulating Connections
Bundle wires with zip ties or spiral sleeves to minimize movement and vibration. Exposed leads should have heat shrink tubing to reduce short-circuit risks and maintain consistent current paths during operation.
Troubleshooting Signal Issues
Check continuity of each path if servos or motors fail to respond. Use a voltmeter to confirm correct voltage at each channel. Swap connectors one at a time to isolate malfunctioning lines and prevent cascading errors.

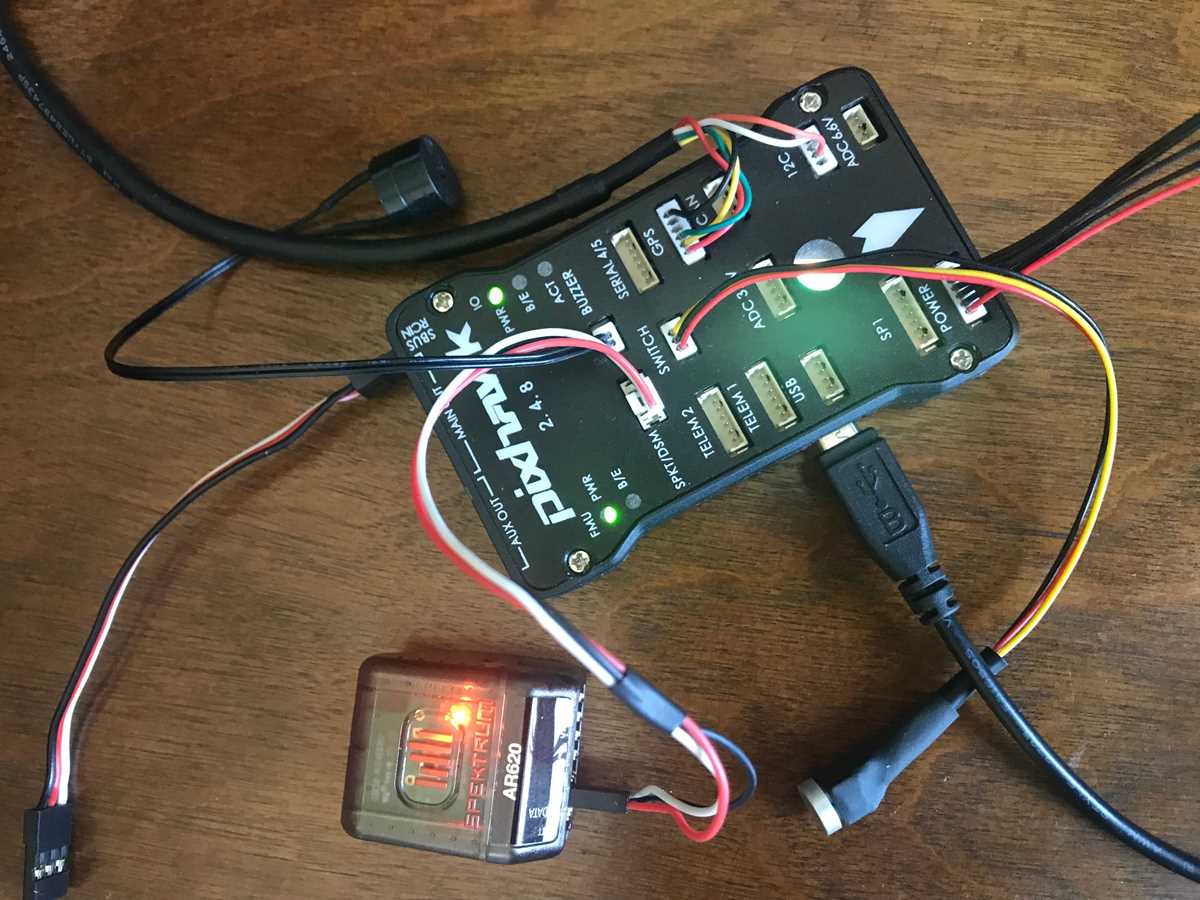

Connecting RC Control Module to Flight Board
Attach the signal unit directly to the flight controller using the designated three-pin ports. Ensure ground, voltage, and signal lines are correctly aligned to prevent damage and maintain stable communication.
For multi-channel configurations, assign each output to a unique port and mark the leads for easy identification. Test each connection individually by powering the board briefly before securing components inside the chassis.
Check that all telemetry and control feedback loops are active after installation. Use a small LED or multimeter to verify signal presence on each channel and confirm motor or servo response matches transmitter commands.
