For reliable audio signal transmission, use a two-wire or four-wire connection for loudspeakers. For standard 2-pin wiring, connect the positive and negative terminals of the speaker to the corresponding pins on the plug. For multi-pin setups, ensure the wiring follows the manufacturer’s specifications to avoid short circuits.
Ensure a secure connection by correctly matching the wire gauge with the current load. For higher wattage applications, use thicker cables to reduce resistance and prevent overheating. Always check the polarity to ensure proper signal flow and avoid phase cancellation issues.
Test the connection after assembly. Use a multimeter to verify continuity and inspect the wiring for potential shorts. If wiring for a professional sound system, take extra care in securing cables to prevent wear over time and reduce the risk of accidental disconnects during operation.
Understanding the Wiring for Audio Equipment
To achieve a stable audio signal, begin by selecting the right cable for your setup. For basic two-wire systems, use a cable with sufficient gauge to support the amplifier’s output. For more complex configurations with four or more wires, follow the exact color coding to maintain consistency and ensure correct phase alignment.
When connecting, pay close attention to the locking mechanism, ensuring that the plug is securely attached to avoid accidental disconnections. A solid, tight connection ensures the integrity of the audio signal, preventing noise or distortion during high-volume usage. Test each setup using a multimeter to verify the connection is both secure and free of short circuits.

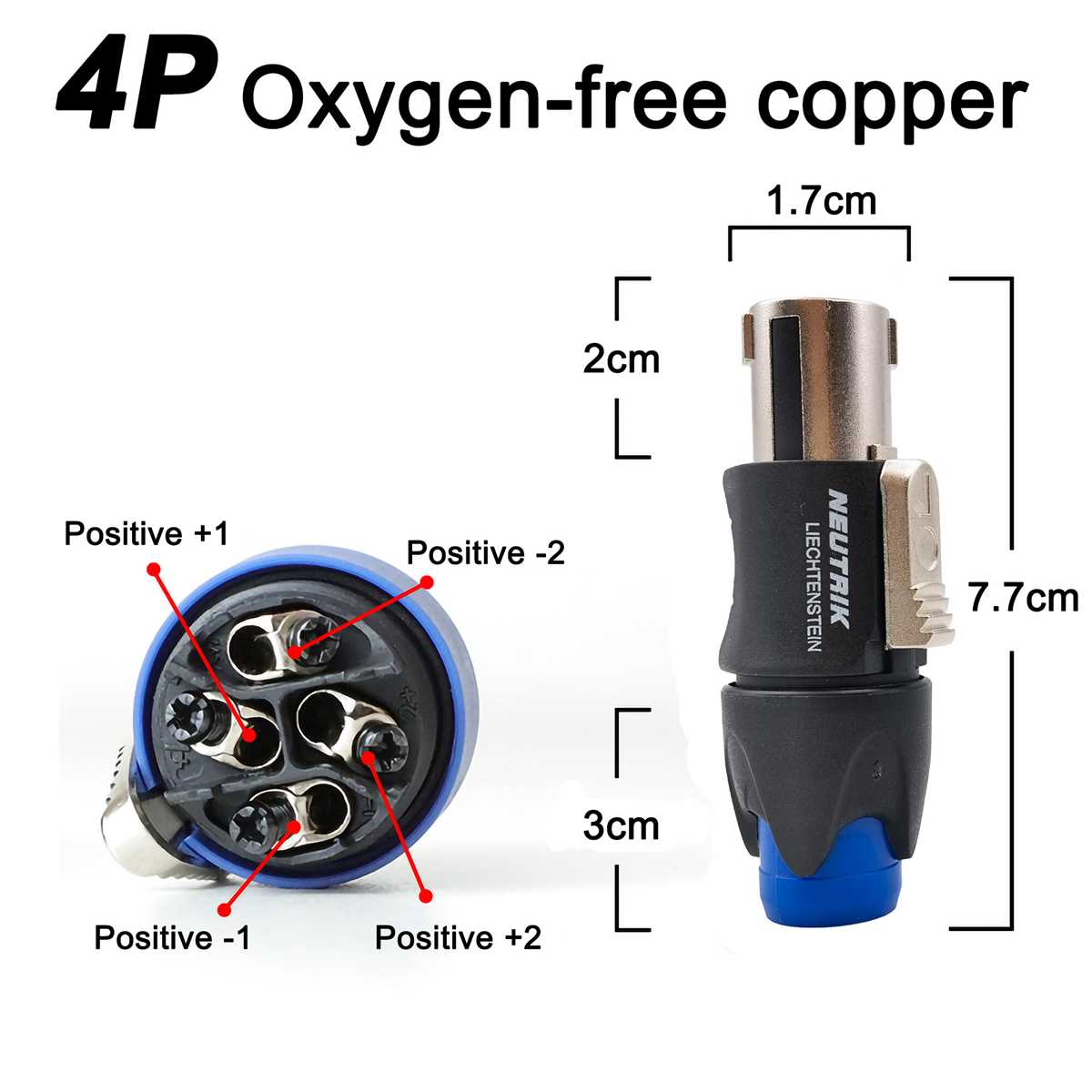

For multi-pin systems, each pin typically serves a specific purpose: two pins for signal, and the remaining pins for ground or secondary channels. Always consult the manual of the speaker and amplifier to confirm the correct configuration before proceeding. Incorrect pin assignments could result in low output or potential damage to the equipment.
How to Connect a Speakon Plug to a Speaker

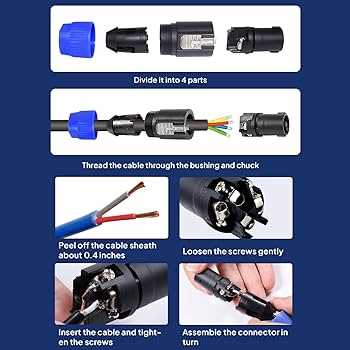

Start by preparing your cable and the necessary tools. You will need a pair of wire cutters, a small screwdriver, and a suitable cable. Choose a cable with appropriate gauge thickness to support the current requirements of the speaker and amplifier.
Next, strip the outer insulation from the cable, exposing the individual wires. Be careful not to cut into the internal wire strands. Once stripped, cut the inner wires to the appropriate length, allowing enough slack for the plug connection but not excessive cable length that could result in tangling.
Steps to Connect the Plug
- Insert the stripped wire into the appropriate terminal on the speaker’s input. Typically, the positive wire connects to the terminal marked as “+” or red, while the negative wire connects to the terminal marked as “-” or black.
- For multi-pin plugs, double-check the configuration: make sure the second pair of wires corresponds to the correct channels or ground connections as per the equipment’s requirements.
- Secure the wires in place by tightening the screws on the terminal to ensure a strong and reliable connection. Do not overtighten, as this may damage the cable or terminal.
Finalizing the Connection
Now, slide the assembled cable into the plug housing, ensuring the wires are properly seated inside. Align the locking mechanism with the corresponding slots in the housing. This ensures a secure connection and prevents the cable from coming loose during use.
Once the cable is inserted, tighten the screws on the plug to hold everything in place. Check that the housing is fully closed and that the cable is securely attached to the plug. Give the connection a gentle tug to make sure it’s firmly in place.
Before connecting the speaker to the amplifier, double-check the wiring to ensure proper polarity. An incorrect connection can result in no sound output or phase issues, leading to poor sound quality or potential damage to the equipment.
After completing the setup, test the connection with a low signal first to ensure everything is functioning properly. Gradually increase the volume, listening for any signs of electrical problems such as hums, buzzes, or crackling sounds.
Lastly, make sure to safely route the cable to avoid physical damage. Use cable ties or clips to secure it, and keep it away from sharp edges or any areas where it could be accidentally pulled or tripped over.
