Step-by-Step Guide to Solar Panel Wiring and Diagram Setup

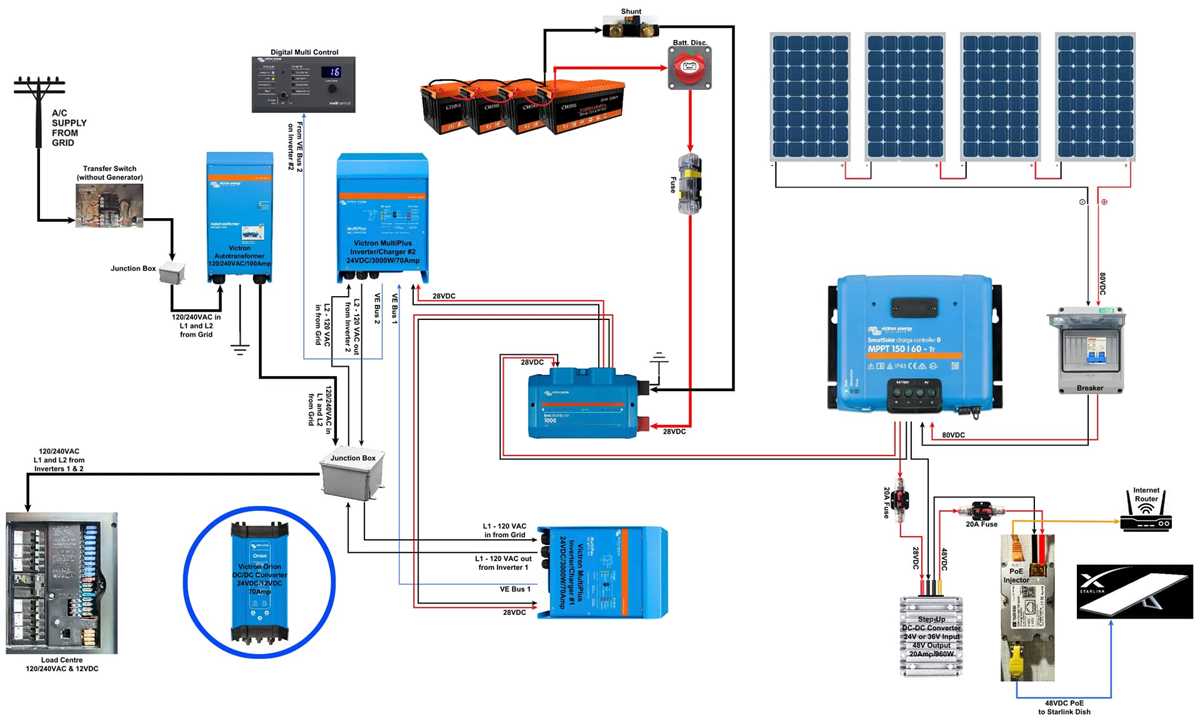

solar panel diagram wiring

To properly connect photovoltaic cells, start by choosing the correct voltage and current ratings for each component. Ensure that the wiring can handle the total load without excessive voltage drop. If you’re connecting multiple modules, decide whether a series or parallel configuration is best based on the required voltage and current output.

For series connections, connect the positive terminal of one unit to the negative terminal of the next. This increases the system’s voltage while maintaining the current. In contrast, parallel connections increase the current while keeping the voltage consistent, making it ideal for larger loads.

When selecting connectors and fuses, use components rated for the system’s maximum voltage and current to ensure safety and reliability. Check the manufacturer’s guidelines for each part, especially if the setup includes high-powered modules that may require specialized components to prevent overheating or short circuits.

It’s important to incorporate safety devices such as circuit breakers and fuses into your setup. These components protect against overloads and prevent fire hazards. Install the breakers at the power source and near other critical junctions in the system.

After the physical connections, inspect the system for any weak links or improperly connected terminals. A multimeter can help verify the integrity of the connections and confirm the expected output voltage and current before putting the system into operation.

Ensure proper grounding to protect against electrical surges. Grounding your system will reduce the risk of damage caused by lightning strikes or other electrical faults. Use proper grounding rods and wires according to local regulations for added safety.

Once all components are in place and properly connected, perform a final check to ensure that all connections are tight and secure. A poorly connected wire can result in heat buildup, leading to potential system failure. Always test the setup under load to confirm its efficiency and safety.

Solar Panel Wiring Diagram Guide

To set up a photovoltaic system, first select the appropriate voltage and current for your needs. Start by connecting the units in series or parallel based on the required output. A series connection increases the total voltage, while a parallel setup raises the current capacity.

For series connections, link the positive terminal of one unit to the negative terminal of the next. This method is suitable for systems requiring higher voltage. In parallel, connect all positive terminals together and all negative terminals together to increase current output without changing voltage.

  • Series: Increases voltage, keeps current constant.
  • Parallel: Increases current, keeps voltage constant.

Ensure that the cables used are rated for the system’s voltage and current to prevent overheating. Using cables that are too thin for the load can result in significant voltage drops and potential damage. Check the manufacturer’s recommendations for wire gauge and insulation type.

Include fuses or circuit breakers in the setup to protect against overloads. These components interrupt the flow of electricity if the system exceeds the safe operating range. Position these safety devices at the source and near critical junctions to provide protection in the event of a fault.

For grounding, connect the system to a grounding rod to prevent electrical surges from damaging the components. Proper grounding will protect against lightning strikes and power surges. Follow local electrical codes to ensure that the grounding system is correctly installed.

When making connections, ensure they are tight and secure. Loose connections can lead to heat buildup and potential failure of the system. A multimeter is useful for checking that the voltage and current match the expected values after the connections are complete.

Once everything is connected, test the system under load conditions. Verify that the output is stable and within the desired range. If any issues arise, check the connections, the components for any faults, and ensure that the wiring is free from damage or wear.

How to Wire Solar Panels in Series and Parallel

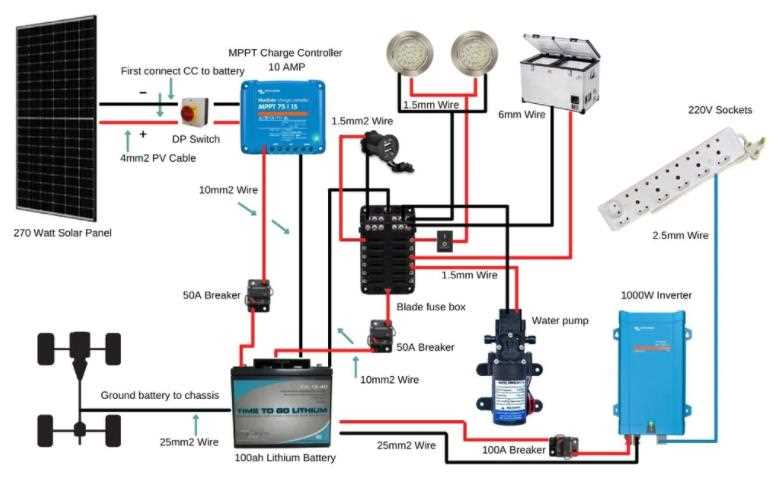

solar panel diagram wiring

To wire modules in series, connect the positive terminal of one module to the negative terminal of the next. This method increases the voltage output while maintaining the same current. Ensure the total voltage output matches the required level for your system. For example, if each module produces 12V and you need 48V, wire four modules in series.

For parallel connections, connect all the positive terminals together and all the negative terminals together. This will increase the current output while keeping the voltage consistent. Use this configuration when you need more current, such as for larger loads, without changing the overall voltage of the system.

When to Use Series vs Parallel

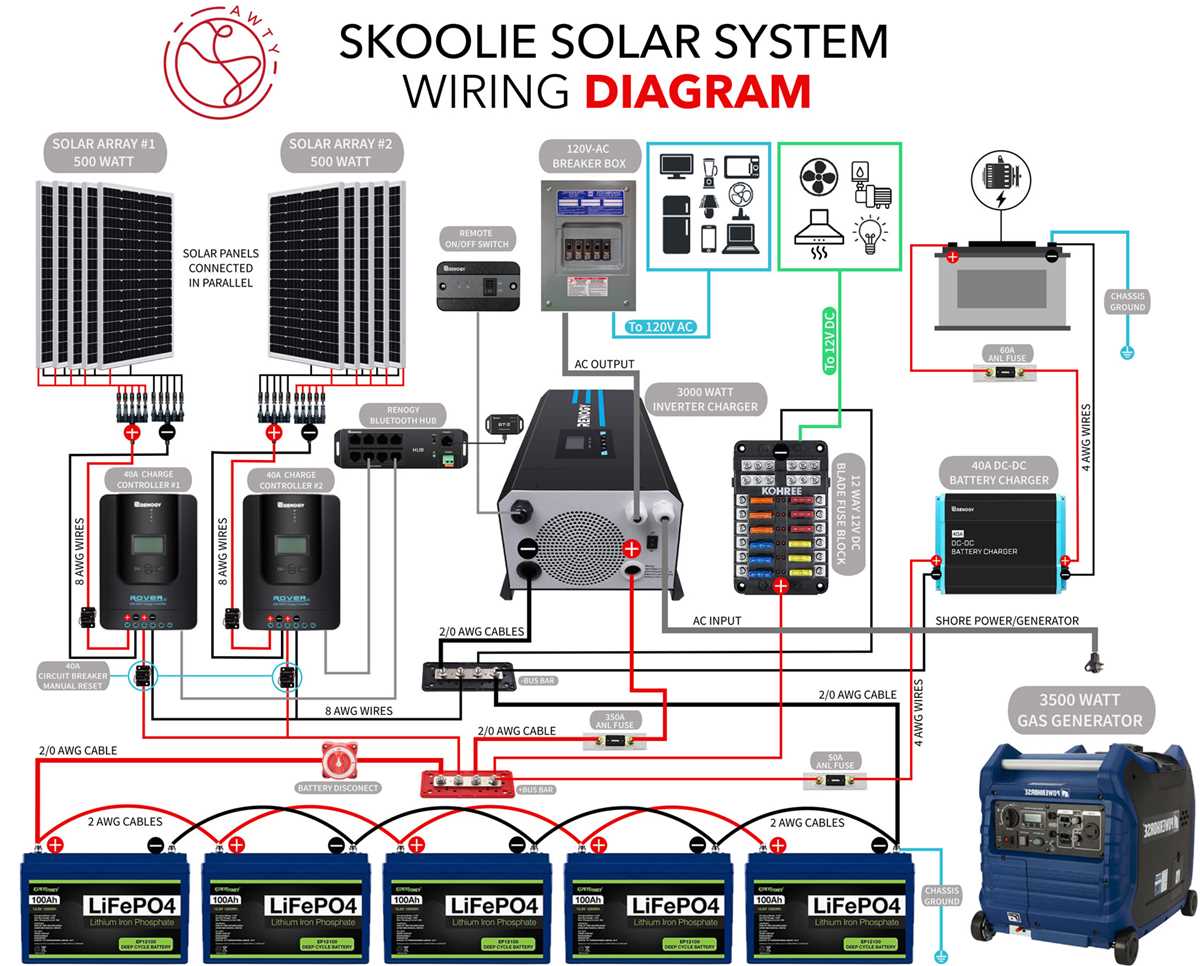

solar panel diagram wiring

Choose series wiring when higher voltage is required for specific applications, such as charging high-voltage batteries. Use parallel wiring when the system requires more current, for example, in low-voltage systems where the voltage needs to remain the same, but the load demands more power. Always consider the specifications of the components to avoid overloading the system.
