Start by identifying the components most commonly found in your flushing system. If you’re experiencing issues, refer to a detailed illustration to locate key elements like the flush valve, fill valve, and flush handle. Understanding the placement and function of each piece simplifies repairs or replacements.
The flush mechanism relies on a few core components. The fill valve controls the water supply, while the flush valve ensures that water is released into the bowl when activated. Knowing the exact layout will help you troubleshoot effectively, whether you’re dealing with a constant leak or low water pressure.
If you’re unsure which part needs attention, start by inspecting the fill valve and the flush valve assembly. These often wear out due to regular usage, causing inconsistent performance. A quick visual inspection using the diagram should highlight any worn-out or faulty parts that require replacement.

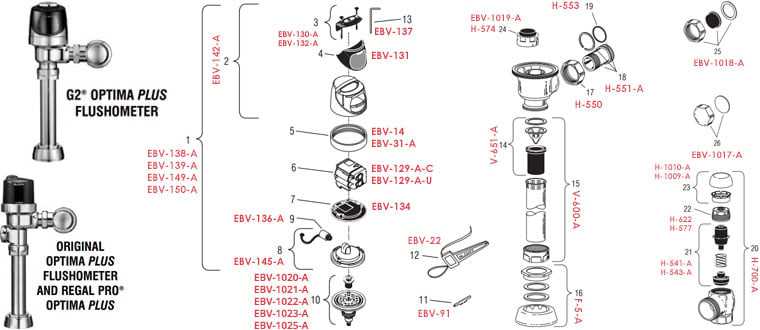

Sloan Toilet Parts Diagram
To fix common issues, begin by locating the key components in the flushing system. Start with the valve assembly and check for wear or damage. The flush valve and fill valve are the most likely culprits for malfunction, so carefully inspect their seals and parts for any leaks or cracks.
Next, identify the handle mechanism. A broken or loose handle may prevent proper activation of the flushing system. Verify the connection between the handle and flush valve; if there is any disconnect or corrosion, repair or replace the components immediately to ensure smooth operation.
Another area to examine is the water supply system. Check the supply line for blockages or issues with the inlet valve. A faulty inlet valve can lead to irregular water flow and inconsistent flushing. Ensure the supply valve is fully open and the tubing is free of kinks or debris.
How to Identify Common Sloan Toilet Parts in the Diagram
Begin by locating the flush valve, which is usually at the center of the system. This component controls the release of water from the tank into the bowl. Check for any cracks or signs of wear around the rubber seal, as this could lead to leaks.
Next, find the fill valve, typically situated on the opposite side of the flush valve. This controls the flow of water into the tank. If the system isn’t filling properly, the fill valve may be clogged or malfunctioning. Inspect the valve for mineral buildup or debris.
The flush handle mechanism should also be identified. It connects to the flush valve and activates the flushing process. If the handle feels loose or unresponsive, check the linkage to ensure it’s secure and functioning as expected.
Lastly, examine the water supply line and inlet valve. A faulty inlet valve can prevent proper water flow into the tank, leading to inconsistent flushing. Look for any blockages or leaks along the supply line and valve connections.
Step-by-Step Guide for Troubleshooting and Replacing Sloan Toilet Parts
First, turn off the water supply to the tank. Locate the shut-off valve near the base and twist it clockwise to close. Flush the system to drain excess water from the tank before proceeding.
Inspect the fill valve for any blockages or mineral buildup. If it’s not functioning properly, disconnect the water supply line and remove the valve by unscrewing it from the tank. Replace it with a new one, ensuring it fits tightly to prevent leaks.
If the flush valve is leaking or not sealing correctly, remove the tank lid and check the rubber gasket around the valve. If it’s worn or cracked, replace it with a new one. To remove the valve, unscrew the fasteners holding it in place and replace it with a new assembly.
For a malfunctioning handle, check the connection between the handle and flush valve. If the linkage is loose or damaged, adjust or replace the mechanism to ensure a secure connection. Tighten any loose screws that might be causing the issue.
Finally, inspect the water supply line for leaks or blockages. If the line is cracked, replace it with a new one. Reconnect the water supply and turn the valve back on to check for any issues.
