Use an exploded view of the cutting machine’s assembly before buying replacements: it shows how the blade hub, drive belt, recoil starter, carburetor linkages, and deck fasteners align, preventing mismatched orders and rework. Match the visual layout to your unit’s model and revision, then cross-check bolt lengths, washer types, and pulley offsets.
The layout clarifies common service points. For example, belt routing around the crank pulley and idler arm differs between push and self-propelled builds, while blade adapters vary by shaft diameter and keyway. Seeing these relationships helps select the correct adapter kit, torque spec, and spacer stack without trial fitting.
Pay attention to engine-side details in the schematic: choke rods, governor springs, and fuel line paths are shown in sequence. This prevents reversed springs, kinked hoses, and misaligned brackets after carburetor service. The visual order also highlights which gaskets and seals must be replaced during disassembly.
Deck hardware benefits most from a visual map. Height adjusters, axle bushings, and wheel spacers appear in their exact positions, revealing left-right differences and hidden shims. Following the view speeds reassembly and reduces vibration by keeping isolators and shoulder bolts where they belong.
For machines from a well-known American yard-care brand, rely on the exploded view tied to the serial range, not just the family name. Minor year changes affect pulleys, cables, and guards; the correct visual reference narrows choices and avoids returns.
Scotts Lawn Mower Parts Diagram

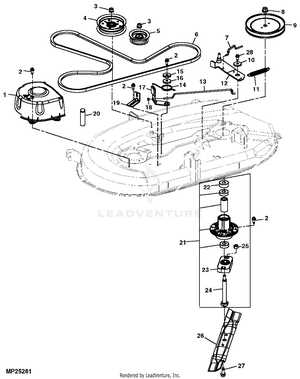

Use an exploded view to match each fastener, belt, and blade hub by position before ordering replacements. This prevents misalignment during reassembly and reduces repeat disassembly.
Locate the cutting deck assembly and trace the drive path from crankshaft pulley to traction belt. Measure belt width and length directly from the reference illustration; common sizes differ by a few millimeters and cause slippage if guessed.
Identify the blade carrier and note torque values printed near the mounting bolt in the schematic. Applying 45–60 ft-lb for most mid-size yard cutters avoids spindle damage and uneven cuts.
Cross-check the carburetion module layout: float bowl orientation, jet placement, and gasket order are shown sequentially. Install gaskets dry unless the illustration specifies sealant at the air intake flange.
For the ignition system, confirm coil air gap using the spacing indicated between flywheel magnets and the coil face, typically 0.010–0.014 inches. Incorrect spacing causes hard starts.
Compare wheel hub assemblies by axle diameter and bushing count as labeled in the visual guide. Mixing left/right hubs leads to tracking issues on slopes.
Print the schematic at 100% scale to verify fastener length against the drawn callouts. Keep the sheet beside the unit during service to tick off each assembly step without guesswork.

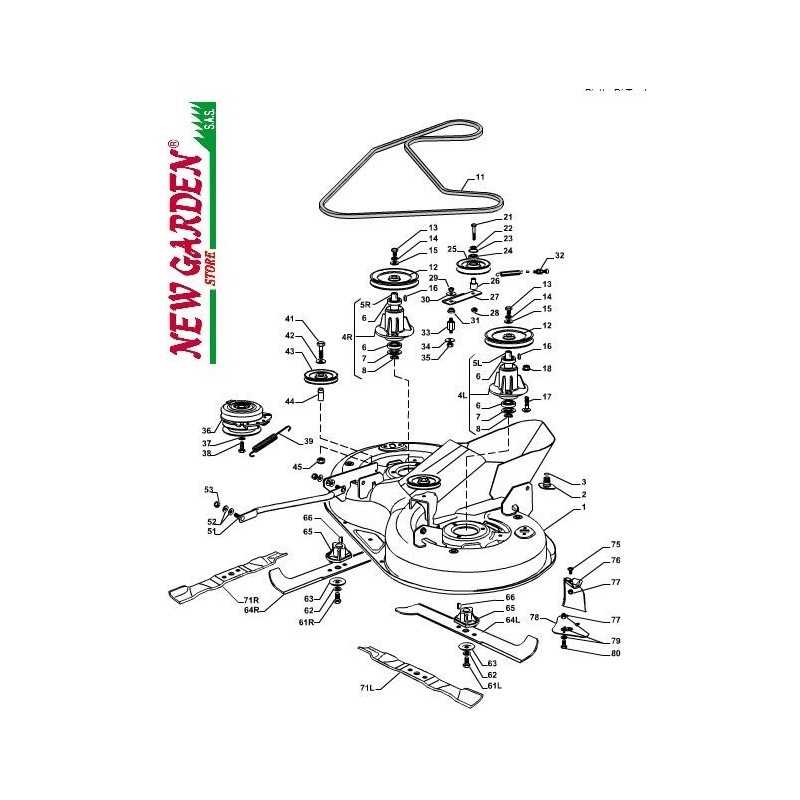

Identifying Blade, Belt, Engine, and Deck Components Using a Detailed Equipment Schematic
Use the illustrated breakdown to match each rotating edge, drive loop, power unit, and cutting housing by position and fastener count before touching any hardware.
The cutting edge is shown at the lowest plane, fixed to the spindle hub with a single center bolt or twin opposing bolts. Measure edge length and mounting hole shape against the drawing to avoid selecting a mismatched replacement. Check the orientation arrows in the illustration to confirm lift direction and curvature.
The drive loop appears as a continuous path linking the crankshaft pulley to the spindle or transmission pulleys. Count idler wheels and note their spring anchors as depicted; this reveals the correct routing pattern and tension points. A misrouted loop causes slippage and uneven rotation.
The power unit sits above the housing with labeled subassemblies such as carburetor, recoil starter, ignition coil, and air intake. Compare bolt spacing and connector locations in the schematic to identify the exact variant. This prevents ordering a starter or coil with incompatible mounting tabs.
The cutting housing outline highlights reinforcement ribs, discharge opening placement, and spindle towers. Match these shapes to the illustration to determine housing generation and deck width. Verify spindle spacing measurements shown to select bearings and seals that align with the existing towers.
Cross-check reference numbers next to each item with your equipment’s model plate. This pairing links the visual layout to exact component codes, reducing returns caused by similar-looking assemblies.
Matching Diagram Part Numbers to Correct Scotts Lawn Mower Replacement Parts
Verify the reference code stamped on the failed component against the schematic index before ordering any replacement. Cross-check the alphanumeric identifier printed next to the exploded-view callout with the catalog listing tied to your exact build series.
Locate the machine’s model and revision code on the chassis plate, then open the matching schematic sheet. Each callout number corresponds to a single component variant; similar shapes often hide differences in shaft length, bore size, or mounting offset.
Use the schematic legend to confirm quantity per assembly. Items such as fasteners, spacers, and bushings may appear once in the view while requiring multiples in reality. Ordering the correct count avoids rework during reassembly.
Compare material notes in the catalog line tied to the callout. For example, blades may share dimensions but differ by steel grade or coating, affecting balance and wear. Select the listing that matches the material spec shown for your serial range.
Check supersession notes next to the reference code. Manufacturers frequently replace older listings with updated versions; the schematic will flag substitutions that fit earlier assemblies without modification.
Measure critical interfaces on the removed component–inner diameter, thread pitch, and hub width–and match them to the catalog data tied to the same reference code. This step catches mid-year production changes not obvious in the illustration.
Confirm compatibility with adjacent assemblies shown in the schematic. Bearings, seals, and pulleys often depend on neighboring components; matching the reference code ensures proper alignment and torque values.
Finalize the order only after reconciling the schematic callout, catalog description, material notes, and measured interfaces. This method minimizes returns and restores the grass-cutting unit to factory fit and balance.
