Before beginning the installation, ensure you have the right power source. Use an energizer that matches the power requirements of the system. For standard setups, choose a 240V supply, but for high-load applications, you may need a 480V system. Always check the specifications for compatibility to prevent any issues during operation.
Next, focus on selecting the correct cables and connectors. Use cables with high-quality insulation to prevent short circuits. Copper cables are recommended for their high conductivity. Ensure each connection is secure and insulated to avoid any risk of electrical failure. Double-check that the cable gauge matches the current rating of your equipment for optimal performance.
After wiring, verify that the actuator is correctly connected and functioning. Use a voltmeter to check that the proper voltage is reaching the device. Make sure the terminals are tight and there is no risk of accidental disconnection. Always test the system under normal conditions to confirm that everything operates smoothly before full deployment.

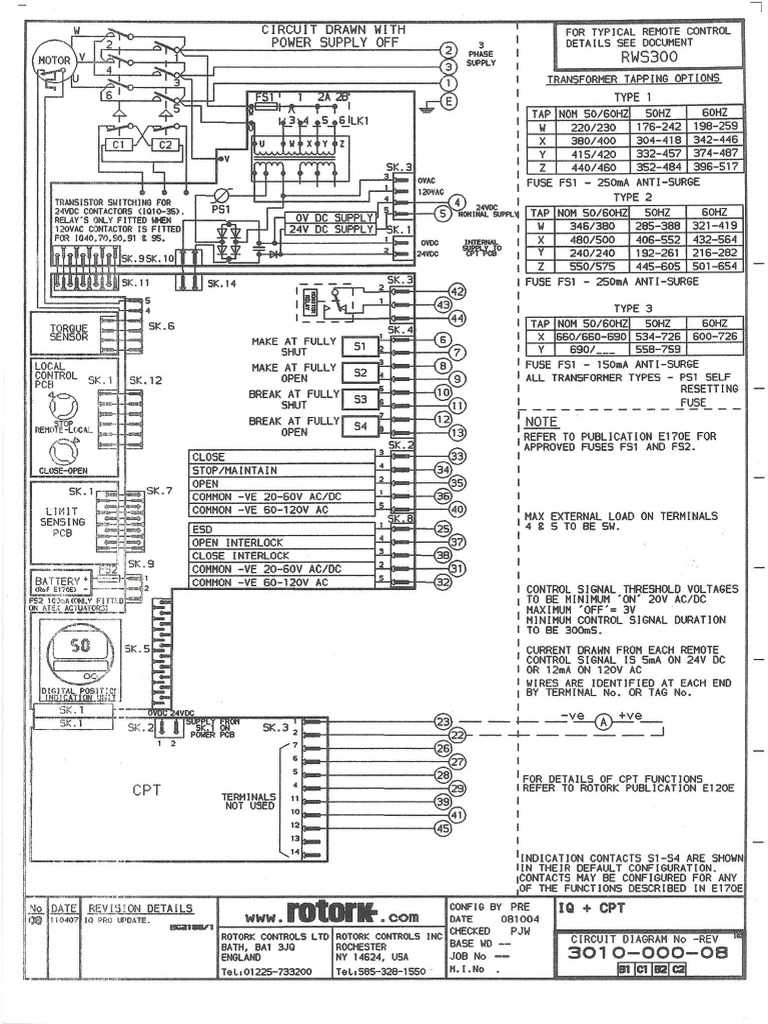

Rotork Wiring Setup and Troubleshooting

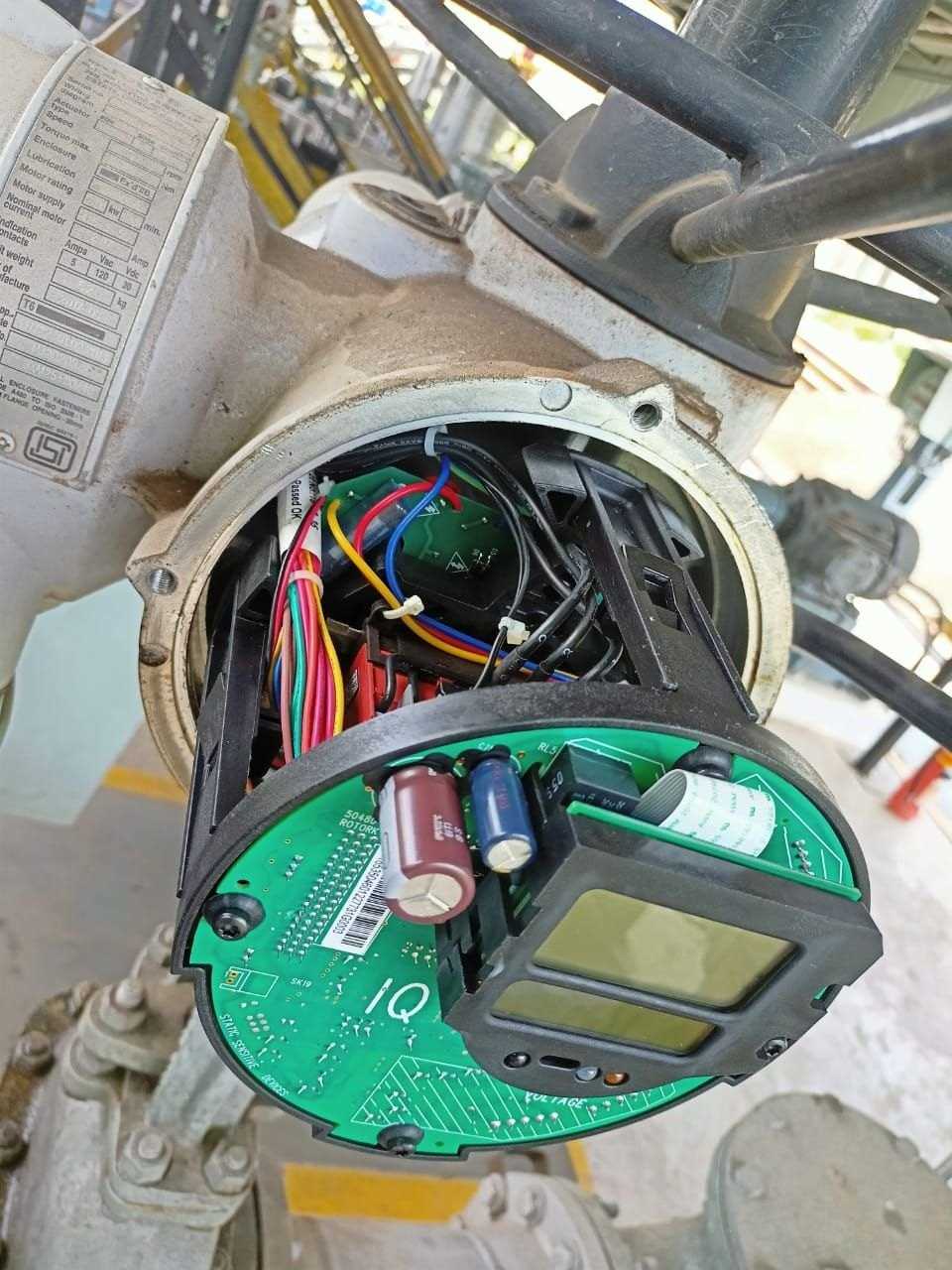

Ensure proper connections by first checking the power source and the electrical terminals on the actuator. Loose connections can often cause erratic behavior or failure to operate. Use a multimeter to verify voltage levels at input and output points; typical voltages range between 24V to 240V depending on the model. Confirm polarity, especially in DC configurations, and check for continuity in all leads. Any inconsistencies in voltage may indicate a fault in the power supply or an issue within the control circuit.
Common Issues and Fixes
If the actuator is not responding to control signals, inspect the control module for any error codes or malfunctions. A flashing LED or a constant red light can indicate an internal fault or communication issue. Replace any faulty fuses or relays, and ensure the controller’s wiring is intact. If the actuator is operating intermittently, check for moisture or corrosion around terminals, as these can cause poor contact and inconsistent performance. A clear and tight connection should resolve most of these problems.
Selecting the Right Power Supply for Rotork Systems
Select the correct power supply by matching the voltage requirements of the system with the power source. If the system operates on AC power, ensure the supply supports the necessary voltage, typically 110V, 230V, or 400V. For DC-powered systems, a stable 24V or 48V power supply is crucial. Verify the power supply’s output current to prevent overloading and ensure reliability over extended use.
Assess the total power consumption of the system before deciding on the power source. Calculate the required wattage by adding up the power demands of all connected components. A typical actuator might need anywhere from 30W to 100W, while sensors and controllers will add to this requirement. Always consider a buffer to account for surges or momentary peaks in power use.
Types of Power Supplies
There are two main types of power supplies for these systems: linear and switching. Linear supplies are simpler but less efficient, converting excess energy into heat. They are suitable for smaller, low-power applications where stability is critical. Switching supplies, on the other hand, offer greater efficiency and are typically used for larger systems with higher power needs.
When dealing with AC systems, opt for a transformer-based power supply for voltage conversion. Ensure that the transformer is rated for continuous operation at the system’s maximum load to avoid overheating. For DC systems, use regulated power supplies to ensure a constant output voltage despite fluctuations in input power.
Choosing Between Internal and External Supplies
Decide whether to use an internal or external power supply based on installation space and maintenance needs. Internal supplies are compact and reduce wiring complexity but may be more challenging to replace or service. External supplies provide more flexibility and are easier to maintain, as they are usually housed separately from the system.
Always account for the environmental conditions where the power supply will be installed. For outdoor or industrial environments, opt for enclosures that are weatherproof or rated for dust and moisture resistance, typically with an IP65 or higher rating. This protects the power supply from damage due to exposure to harsh elements.
Power Supply Protection and Reliability
Incorporate protection mechanisms such as fuses, surge protectors, and circuit breakers to safeguard the system from electrical faults. Overcurrent protection ensures the supply can handle unexpected spikes, while surge protectors shield the system from power surges. Use reliable backup power solutions like uninterruptible power supplies (UPS) to maintain operation during power outages or brownouts.
Finally, consider the total cost of ownership over time. While more robust power supplies may come with a higher initial price, their reliability and efficiency can reduce long-term maintenance and replacement costs. Evaluate the overall system’s requirements, balancing cost with performance to make an informed decision on the power supply.
