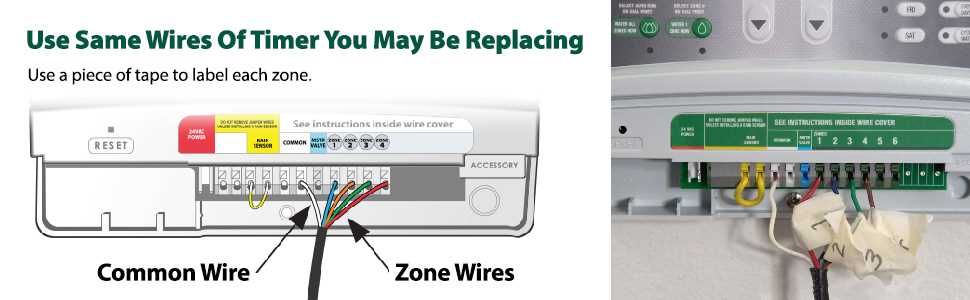

Turn off the main power before handling the control module. Identify the terminals for the main supply and each valve zone. Label each wire to prevent errors during installation and ensure a smooth setup process.
Use a multimeter to verify voltage at the input terminals. Connect the power leads securely and tighten all screws to avoid intermittent connections. Loose contacts can cause system failures or misfiring of zone valves.
Attach each solenoid to its corresponding zone wire. Follow the sequence printed on the control panel and ensure polarity matches the manufacturer’s specifications. Double-check connections before powering the system to prevent short circuits or valve damage.
After all connections are made, restore power and test each zone individually. Activate each valve manually from the controller and observe flow and pressure. Confirm timing and rotation of the sprinkling heads to ensure full coverage without leaks or dead spots.
Sprinkler System Connection Guide

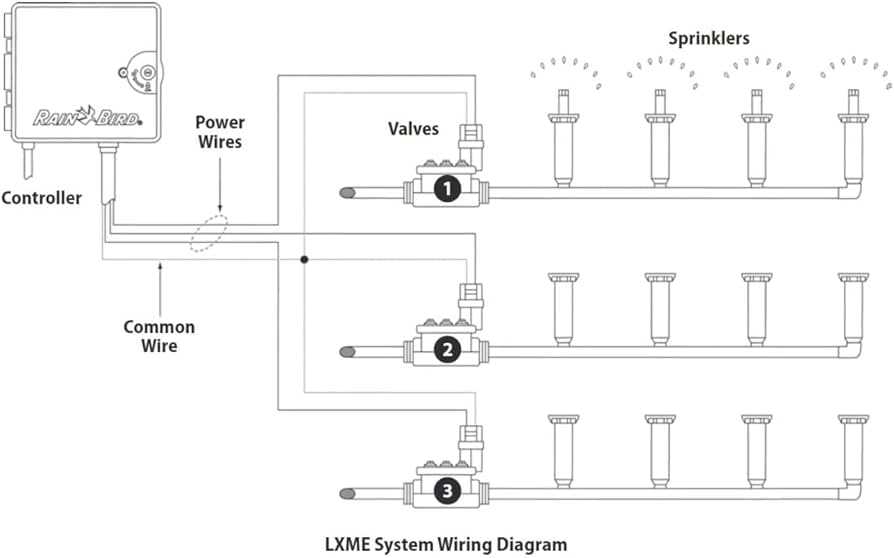

Turn off the main power before starting any connections. Identify the controller terminals and the zone lines that connect to each valve. Label all leads to prevent confusion during installation and ensure accurate connections.
Attaching Valve Solenoids

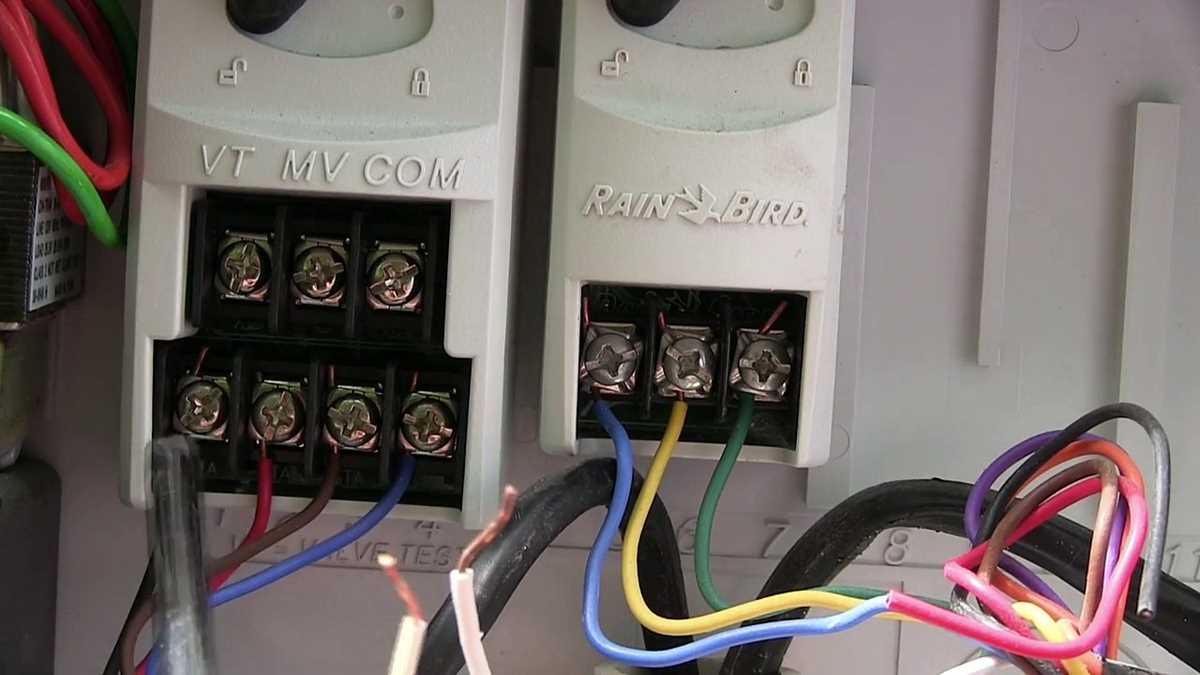

Connect each solenoid to its designated zone wire using wire nuts or crimp connectors. Verify that polarity matches the markings on the controller to avoid misfiring. Check for secure contacts to prevent intermittent operation or valve failures.
Testing and Verifying Operation
Restore power and test each zone individually from the controller. Activate one valve at a time and observe the flow, pressure, and head rotation. Adjust timing and coverage as needed to ensure uniform irrigation without leaks or dry spots.
Connecting the Control Unit and Power Supply
Switch off the main breaker before handling the controller. Identify the terminals for the primary power input and the neutral and ground lines. Label each conductor to prevent confusion and ensure correct placement.
- Strip approximately ¼ inch of insulation from each wire
- Insert the hot and neutral leads into the designated terminals
- Secure all screws tightly to maintain stable contact
Check that no strands touch adjacent terminals
to avoid short circuits.
Securing the Ground Connection
Attach the grounding conductor to the dedicated lug or screw on the metal enclosure. Ensure a firm connection by removing any paint or oxidation at the contact point. Proper grounding protects against shocks and prevents damage to the controller during operation.
Verifying Power Input
After securing all leads, restore power and measure voltage across the input terminals. It should read the expected line voltage. Confirm that the controller powers on and that no tripped breakers or sparks occur before connecting any zone valves or sensors.
