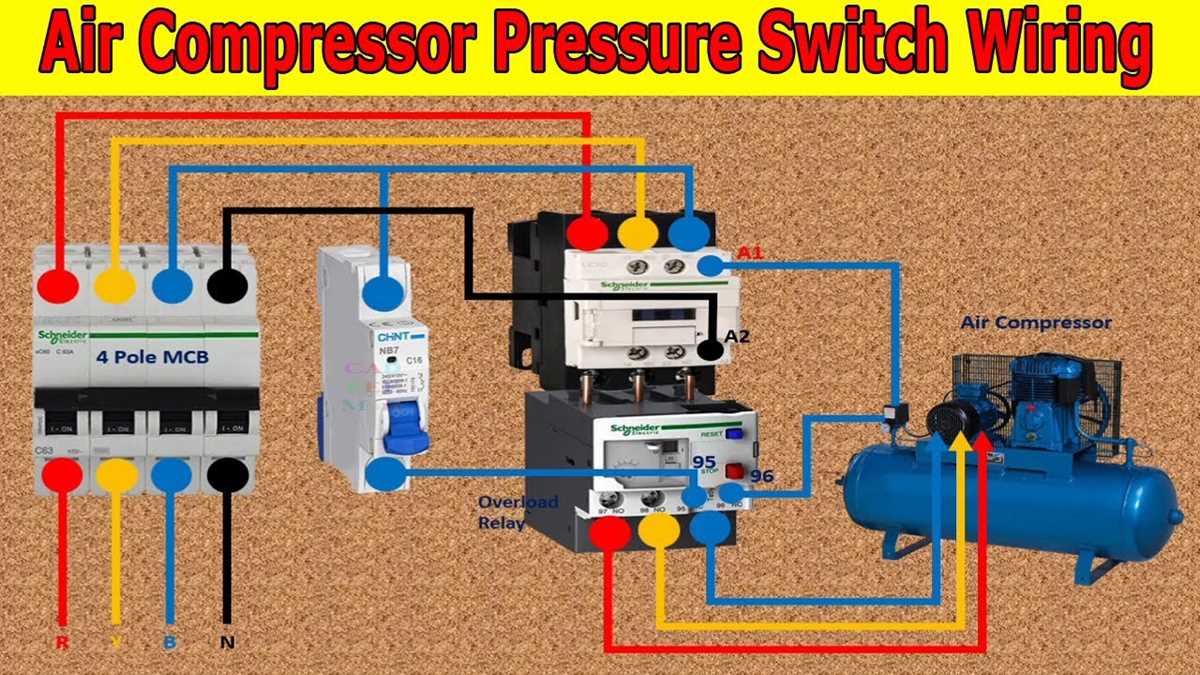

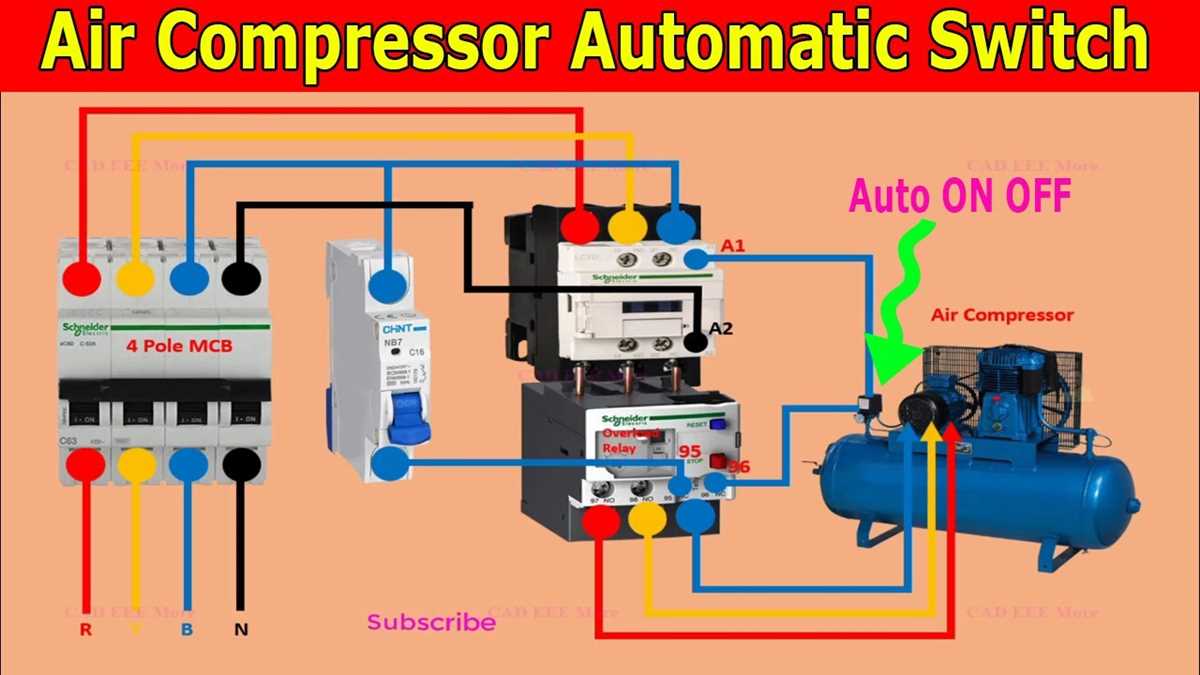

Pressure Switch Connections for Air Compressor Systems
Identify the main terminals on the control unit and label each conductor according to its function. Confirm the incoming line voltage matches the rated specifications of the unit to prevent overheating or component failure. Use a digital multimeter to test live and neutral paths before making any permanent connections.
Connect the output leads to the relay contacts that control the drive motor. Ensure all terminals are tightened to the recommended torque and insulated from surrounding metal surfaces. Verify the polarity on each connection to prevent reverse actuation of the motor circuit.
Grounding points should be cleaned of oxidation and debris.
- Attach the main chassis ground to a secure bolt.
- Verify continuity between ground points and the frame.
- Test for any voltage leakage that could interfere with sensor operation.
This maintains a stable and safe operation across the control system.
Install the signal line from the sensing chamber to the relay input. Check the integrity of insulation along the length of the cable to prevent shorts under high pressure cycles. Flexible conduit can be used to protect the wire from vibration or mechanical abrasion.
After all connections are made, simulate operation by manually adjusting the pressure chamber. Observe the relay response and motor engagement.
- Record the trip and reset points.
- Compare against manufacturer settings.
- Adjust the sensing element if readings deviate beyond tolerance.
This ensures reliable automation during normal operation.
Regular maintenance includes checking terminal tightness, corrosion, and signal continuity. Document each inspection to track performance over time and prevent unexpected failures in the pneumatic system.
Identifying Power and Ground Points for the Control Switch
Locate the main terminals on the control unit and confirm the line voltage using a multimeter. Mark each lead to distinguish live, neutral, and ground connections before attaching any conductors. Correct identification prevents short circuits and operational failures.
Inspect chassis grounding points to ensure they are clean and free of paint or corrosion.
- Connect the ground lug to a bare metal surface on the frame.
- Test continuity between ground and neutral terminals to verify a solid return path.
This stabilizes voltage levels and reduces electrical noise in the control system.
Trace the input feed from the power source to the control relay. Check that the insulation is intact along the full length of the conductor and that terminals are secured to the correct polarity. Loose or reversed leads can cause failure of the sensing circuit or intermittent activation.
After connections are made, simulate operation by engaging the sensing element. Measure voltage at the relay and output terminals while the system cycles. Adjust or retighten connections if readings deviate from expected values to maintain reliable engagement and safe operation.
