To connect pickups in a PJ setup, start by wiring the split-coil pickup to the tone and volume pots. The signal from the neck pickup goes to the tone control, while the bridge pickup is wired to the volume pot. This allows independent control of both pickups, giving you more tonal options.
Next, consider using 250k potentiometers for the tone and volume controls, as this works well with most pickups. If you’re using a humbucker alongside a single coil, ensure you’re wiring the humbucker correctly to avoid phase issues or weak output. Use a .047µF capacitor for the tone control to preserve clarity at higher frequencies.
Lastly, grounding is crucial in any setup. Ensure the ground wire from the pickups connects to the common ground point on the potentiometers. Proper grounding will minimize noise and hum in the final output. Double-check all connections before finalizing the assembly to ensure a clean signal path.
PJ Bass Wiring Setup
Begin by connecting the neck pickup to the tone control. This will allow you to adjust the overall tonal range of the neck pickup. Connect the hot lead from the neck pickup directly to the input terminal of the tone potentiometer, ensuring the grounding is properly attached to the back of the potentiometer.
The bridge pickup should be wired to the volume control, with the signal flowing to the input terminal of the potentiometer. This allows you to independently adjust the volume of the bridge pickup, giving you the flexibility to blend the two pickups to your preference.
Use 250k potentiometers for both volume and tone controls. This value is commonly used in most setups for a balanced response when adjusting frequency ranges. The tone control will act as a low-pass filter, with the capacitor determining how much of the higher frequencies are allowed to pass through to the output signal.
For the tone control capacitor, opt for a value between 0.047µF and 0.1µF, depending on the type of tone you desire. A 0.047µF capacitor provides a balanced, smooth tone with moderate roll-off, while a 0.1µF capacitor gives a more pronounced low-end cut and a slightly brighter sound overall.
Grounding is a critical part of the setup. Connect the ground wire from the neck pickup and bridge pickup to the common ground point on the potentiometers. This helps to reduce noise and hum. Ensure that the back of the potentiometer is properly grounded to complete the circuit.
Finally, check all your connections before soldering. Verify that the signal paths are correctly routed and that all components are securely connected. A solid setup will ensure the signal is clear, without interference or hum, delivering a clean sound from both pickups in various configurations.
How to Wire a PJ Setup with Split and Single Coil Pickups

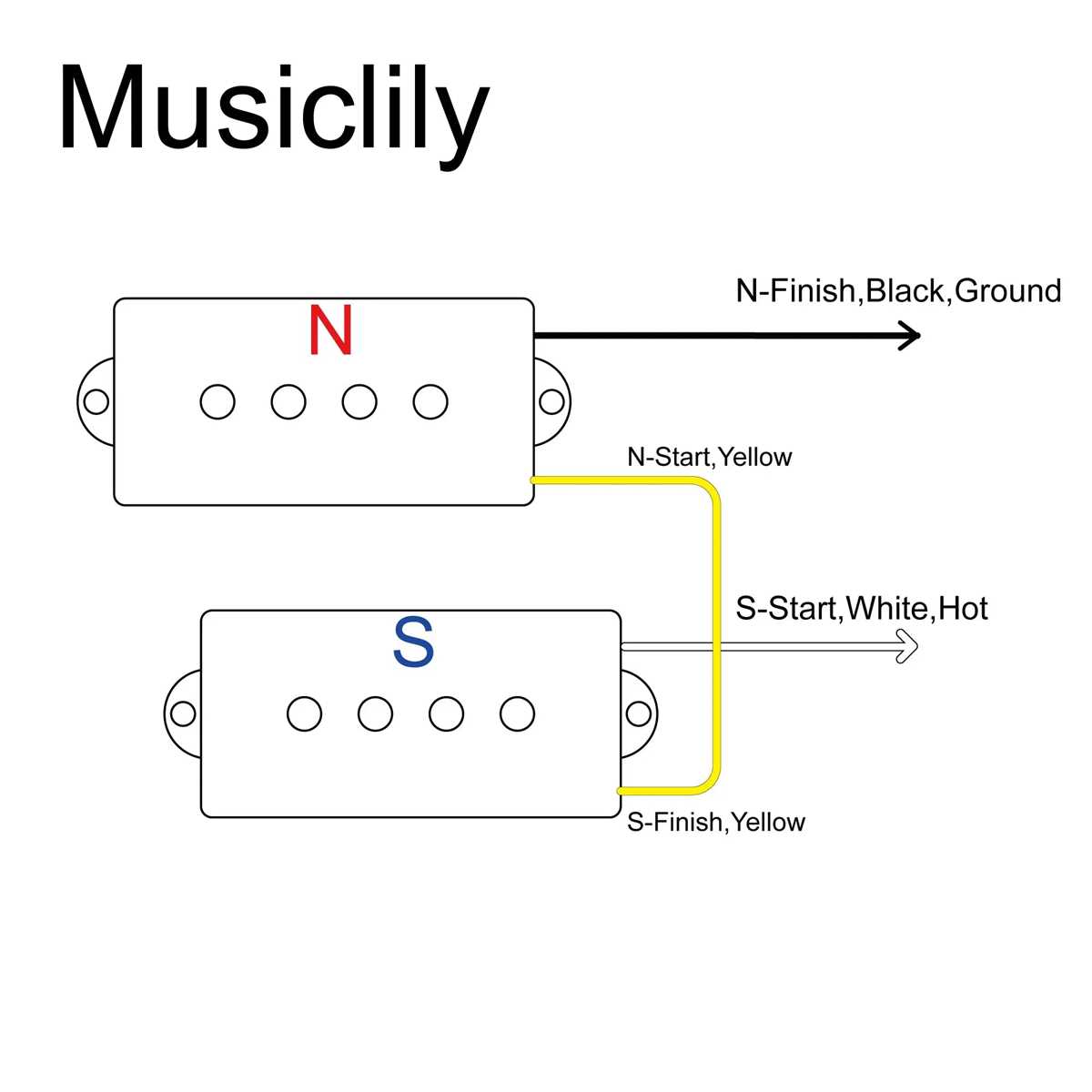

Start by connecting the neck pickup (split-coil) to the tone control. The signal wire from the neck pickup should be connected to the input terminal of the tone potentiometer. This allows you to shape the tone of the neck pickup independently, with the ability to cut high frequencies.
For the bridge pickup (single coil), wire it directly to the volume control. This configuration lets you control the volume of the bridge pickup separately from the neck pickup. The hot lead from the bridge pickup should be soldered to the volume potentiometer’s input terminal.
Ensure both pickups share a common ground. Connect the ground wire from the neck pickup to the back of the potentiometer. Then, wire the ground from the bridge pickup to the same point to ensure proper grounding. This step is crucial to prevent noise and interference.
- Use 250k potentiometers for volume and tone controls, as they provide an optimal balance for these pickups.
- For the tone control capacitor, a 0.047µF or 0.1µF capacitor works well, depending on how much high-end roll-off you prefer.
After all components are connected, test the setup by adjusting the volume and tone controls. Ensure both pickups are functioning and the tone knob smoothly reduces high frequencies without distortion. Once confirmed, solder all connections securely and check for any loose or ungrounded wires.
