Understanding the framework that supports the movement of a cycle is key for anyone seeking to optimize performance or make repairs. Start by identifying the components that form the outer boundary of the ride. The metal frame, often shaped in a circular manner, provides the foundation for a smooth rolling experience. The spoke arrangement connects the central hub to the edge, balancing tension and distributing force evenly. The role of these spokes cannot be overstated, as they ensure durability and strength.
Next, focus on the central area where rotation begins. This hub plays a pivotal role in transferring energy from the pedals to the surrounding components. It’s housed in bearings, allowing smooth spinning without friction. Additionally, the rim itself is made of durable materials designed to withstand wear and external pressures. It serves as the base for attaching tires, ensuring a secure fit while contributing to overall stability.
Additionally, consider the tire as an integral part of the structure. Its grip on the ground determines the ride’s efficiency and safety, as its tread pattern interacts with different surfaces. Proper air pressure within the tire is vital for optimal function, ensuring minimal resistance while maintaining a responsive feel on varying terrains. Each of these elements, from the hub to the tire, plays an interconnected role in how well the cycle performs on every ride.

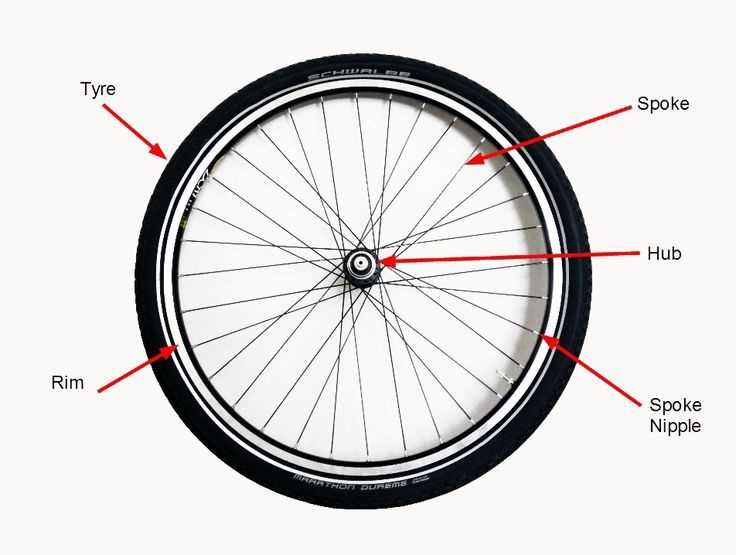

Elements of a Cycling Rim Assembly Schematic
Choose a laced rim assembly that matches axle spacing and brake interface, then verify each element below aligns with your riding style and load demands.
The outer hoop defines tire fit and braking compatibility. Common internal widths range from 17–25 mm; wider profiles stabilize larger casings at lower pressure. Materials include aluminum alloys for daily use and carbon composites for reduced mass and tuned stiffness.
Spokes transmit load from the hoop to the center shell. Counts of 24–36 balance mass and strength; thinner gauges flex more for comfort, while straight-pull designs cut stress at the head. Lacing patterns such as three-cross improve torque handling on driven sides.
Nipples secure spoke tension at the hoop. Brass resists corrosion and rounding during adjustments; aluminum trims grams but needs precise torque. Use thread prep to maintain stable tension over time.
The central hub shell houses bearings and anchors spokes. Flange diameter affects bracing angle; wider spacing boosts lateral rigidity. For disc setups, confirm rotor mounts (six-bolt or centerlock) and flange offset match frame standards.
Bearings enable smooth rotation. Sealed cartridges suit wet conditions and simplify swaps; loose-ball systems allow fine preload tuning. Match axle diameter to frame dropouts for proper fit.
The axle supports the assembly within the frame. Through-axles add stiffness for disc braking; quick-release options favor lighter builds. Verify length and thread pitch before installation.
Rim tape or sealing strips protect inner air chambers and, for tubeless use, create an airtight bed. Select width that fully covers spoke holes without creeping up sidewalls.
Valves control inflation. Presta suits high-pressure road use; Schrader tolerates rough handling. Tubeless stems need removable cores and tight grommets to hold sealant.
Understanding the Function of Each Component in a Bicycle Wheel
Hub: Acts as the central part of rotation, connecting the axle to the rest of the structure. It ensures smooth motion by enabling the rim to spin freely around it, allowing the rider to propel forward efficiently.
Spokes: These thin rods maintain the structural integrity of the structure. They balance the forces exerted during pedaling and provide strength to the entire assembly. Spokes are tensioned to distribute load evenly, preventing deformations.
Rim: This outer ring holds the tire in place and forms the contact point with the ground. It bears the weight and friction, contributing to stability and traction during rides. It must be durable to withstand impacts and the pressure from inflation.
Tire: Provides grip on various surfaces. It absorbs shock, reducing strain on the other components. A properly inflated tire ensures better control, comfort, and efficiency when maneuvering on different terrains.
Axle: Acts as the shaft around which the hub rotates. It connects the hub to the frame or fork and supports the load of the rider, ensuring smooth and stable operation. The axle’s integrity is vital for a safe, stable ride.
Bearings: Located within the hub, these reduce friction by allowing smooth movement between the hub and axle. Quality bearings enhance performance by minimizing resistance, making pedaling less strenuous and extending component lifespan.
How to Identify and Maintain Bicycle Wheel Components for Longevity
Inspect spokes regularly for tightness. Loose or broken spokes affect structure and cause unnecessary stress. A spoke wrench helps maintain proper tension. Tighten them evenly, checking for any irregularities that might cause wobbling.
Rims should be free of cracks or significant wear. After every ride, wipe down the rim’s braking surface to remove dirt or grit, which can cause premature wear of brake pads. A visual inspection helps spot small dents or signs of damage early.
The hub requires lubrication at regular intervals. Grease it periodically, especially after wet conditions. If you notice resistance or odd noises while rotating, the hub might need attention, either with new grease or a full rebuild depending on wear.
Check the tire regularly for proper inflation. Under-inflated tires increase friction, causing the components to work harder and wear out faster. Follow the manufacturer’s recommendation for tire pressure, adjusting based on riding conditions and load.
Bearings in the axle and hub need periodic checks. Clean them thoroughly and apply fresh grease every season. If you feel any roughness or resistance while spinning, it may indicate that the bearings need replacement.
For rim brakes, inspect pads for wear. Replace them when the surface becomes smooth or worn down. Misaligned pads can create uneven wear on both the brake pads and rims, reducing overall performance.
Avoid excessive pressure on the rims during high-impact activities like curb jumps or potholes. Overloading can distort the shape of the rim, leading to a higher risk of damage. Consider reinforcing the structure with heavier-duty components if frequent rough rides are expected.
