Identifying the correct engine parts is key to maintaining a small engine, like the popular models used in lawn equipment. Familiarize yourself with each individual component to ensure proper assembly, replacement, and troubleshooting. When repairing or assembling, accuracy is crucial, as even a minor mistake can lead to inefficient performance or damage.
Examine the key engine sections: crankshaft, cylinder, camshaft, and valves. These work in harmony to drive the engine’s operation. Pay close attention to wear and tear, particularly with gaskets and seals, as these can significantly affect performance if damaged. Regular inspection of these elements will help prevent common issues such as oil leaks or misfiring.
Having access to a reliable reference guide will ensure that you can easily identify each piece and understand its function. Being able to cross-reference parts with your manual or a detailed breakdown will save time and effort during maintenance. Accuracy is paramount when dealing with engines, especially when parts need to be ordered or replaced.
Assembly Breakdown for Small Engine Models
Start with checking the correct positioning of the engine’s crankshaft. Ensure it aligns with the flywheel to guarantee proper ignition timing. For smooth operation, examine the air filter housing–this component must be securely fastened to avoid debris entry.
The valve assembly is another key point. When disassembling, confirm that the intake and exhaust valves are free from carbon buildup. A clean valve seat ensures optimal compression levels. Verify the timing marks are aligned correctly before reassembling the cylinder head.
For fuel delivery, inspect the carburetor carefully. The fuel bowl must be clean, and the gasket should create a tight seal to prevent leakage. Pay close attention to the choke and throttle linkages to ensure they move freely without obstruction.
The ignition coil needs to be placed accurately to maintain the correct spark plug gap. Tighten the screws gently, as over-tightening can damage the coil. Ensure the spark plug is clean and the electrode is undamaged for consistent engine firing.
Don’t forget to check the starter assembly. The recoil spring should be tensioned correctly, and the rope should be free of any knots or frays. Proper maintenance of this part reduces the risk of malfunction during startup.
Examine the lubrication system next. Ensure that the oil filter and the drain plug are tightly sealed to avoid oil leaks. Regular oil changes and filter replacements keep the engine running at peak efficiency.
After reassembly, conduct a thorough inspection of all fasteners. Loose screws or bolts can lead to serious engine damage. Finally, start the engine and observe its performance to make sure all components function smoothly without unusual noises or vibrations.
How to Read and Understand the Parts Breakdown for Honda GCV160 Engine
Begin by identifying the engine’s main sections. These are typically grouped by function, such as fuel, ignition, or cooling systems. Pay close attention to numbers next to each component–these are unique identifiers that help you match the item with the corresponding description in the manual.

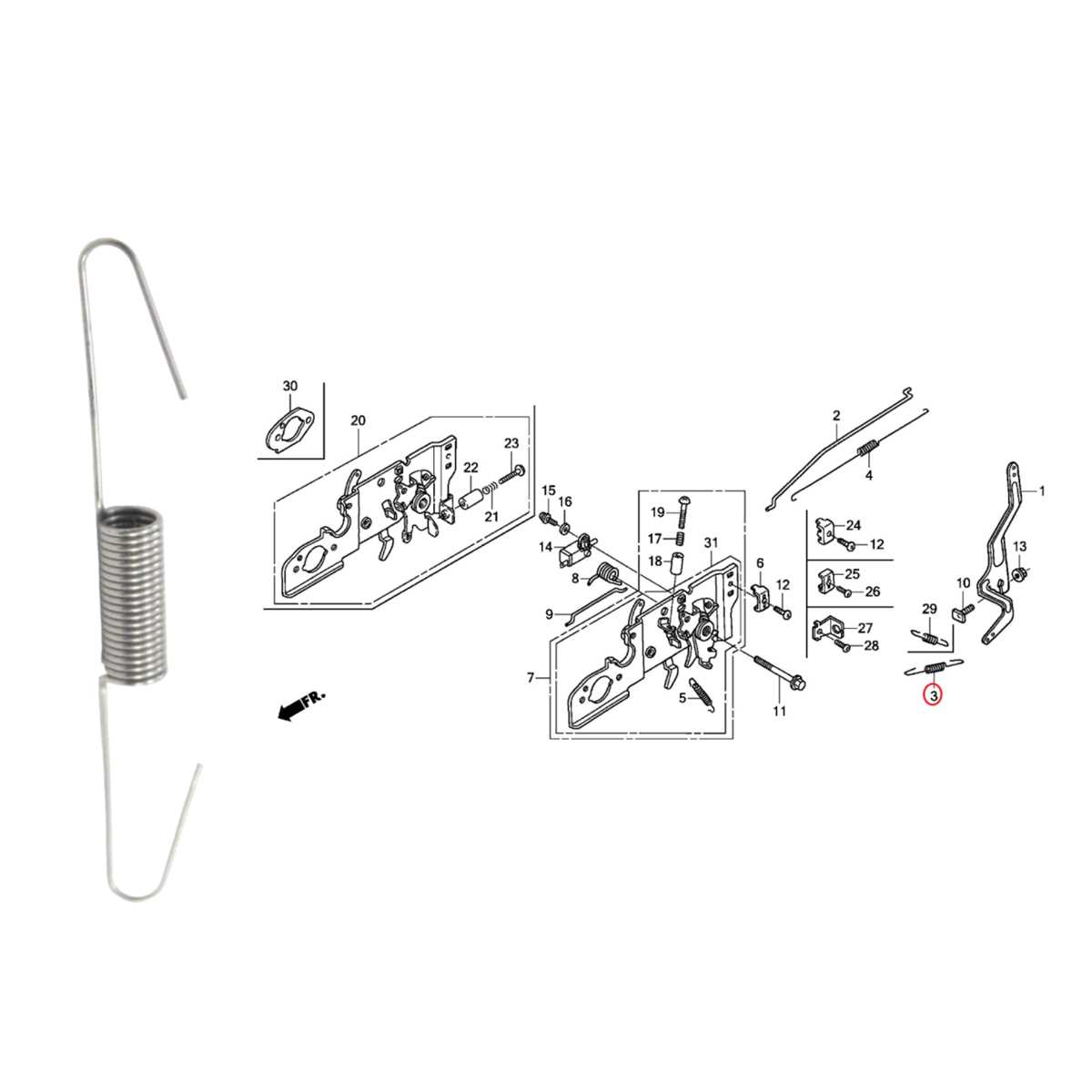

Each visual representation includes various symbols to indicate the type of connection or installation. Arrows typically point to assembly directions, while shaded areas or dashed lines mark specific parts that interact with others. Be mindful of exploded views, which show the positioning of elements relative to each other.
Look for reference numbers in the visual. These should correspond to the parts list, where you’ll find detailed information like part numbers and sometimes specific quantities, which is helpful for ordering replacements. If the breakdown has multiple views, each one focuses on a different part of the engine, so ensure you examine all perspectives to get a complete understanding.
Focus on specific assemblies and their placement within the engine structure. For example, you’ll often find components like the carburetor, cylinder head, or crankcase marked clearly, as these are crucial for understanding the engine’s operation. Each group will have related parts like screws, washers, and seals, showing how everything fits together.
Use the part numbers to cross-check items in the exploded view against the actual engine. This will ensure accuracy when identifying worn or damaged components, and help you understand the order of disassembly and reassembly.
Double-check any notes or additional instructions that may appear, as they often contain important details about maintenance or installation. These are typically placed near the visual to clarify complex steps.
Identifying Common Replacement Components Using the Honda GCV160 Component Breakdown
For quick replacement of malfunctioning elements, first check components like the air filter, spark plug, carburetor, and fuel cap. These parts are frequently worn out due to heavy use or lack of maintenance. A worn-out air filter causes poor engine performance and increased fuel consumption. Replace it regularly to ensure optimal airflow.
Next, inspect the ignition system. The spark plug can wear down after prolonged use, causing hard starts or engine misfires. Refer to the correct model and type for your engine to avoid compatibility issues.
The carburetor can accumulate dirt or debris over time, affecting fuel mixing and leading to rough idle or stalling. If cleaning does not restore function, replacement is necessary. Fuel lines and seals often degrade, causing leaks or fuel delivery issues; check these regularly and replace any brittle or cracked sections.
Lastly, check the valve cover gasket. If it shows signs of wear or leakage, replace it to prevent oil loss and engine damage. Keep the replacement components in stock for quick maintenance. Ensure each part matches the exact model specifications for smooth operation and longevity.
