Connect the module to a stable 5-volt DC source with at least 500mA capacity to prevent voltage drops that can distort output. Ensure polarity matches the marked terminals to avoid permanent damage to internal components.
Use short, shielded leads for input signals to reduce interference and maintain clean sound reproduction. Differential signals or standard line-level outputs work best with this configuration.
Match speaker load carefully between 3 and 5 ohms per channel. Exceeding recommended impedance can trigger thermal shutdown, while lower loads risk overcurrent that can damage the output stage.
Include decoupling capacitors near the power pins of the module. Values of 100nF ceramic and 470µF electrolytic capacitors stabilize voltage and reduce high-frequency noise.
Maintain proper ventilation for the module when enclosed. Small heatsinks or airflow openings prevent temperature-related distortion and extend the component lifespan.
Route input and output connections separately to avoid crosstalk. Keeping signal paths distinct ensures the stereo channels remain isolated and preserves dynamic range.

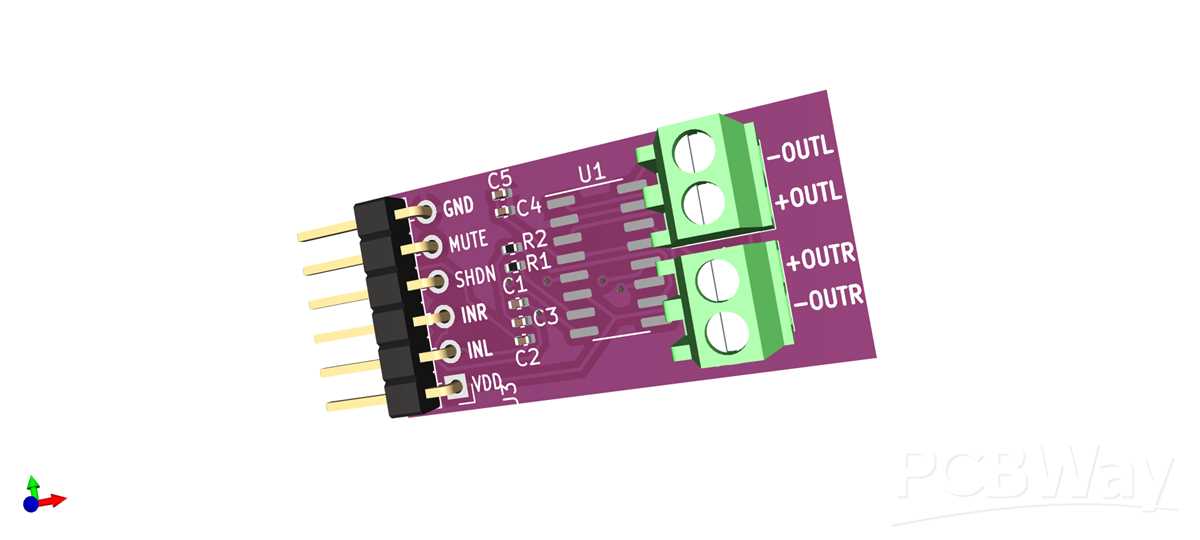

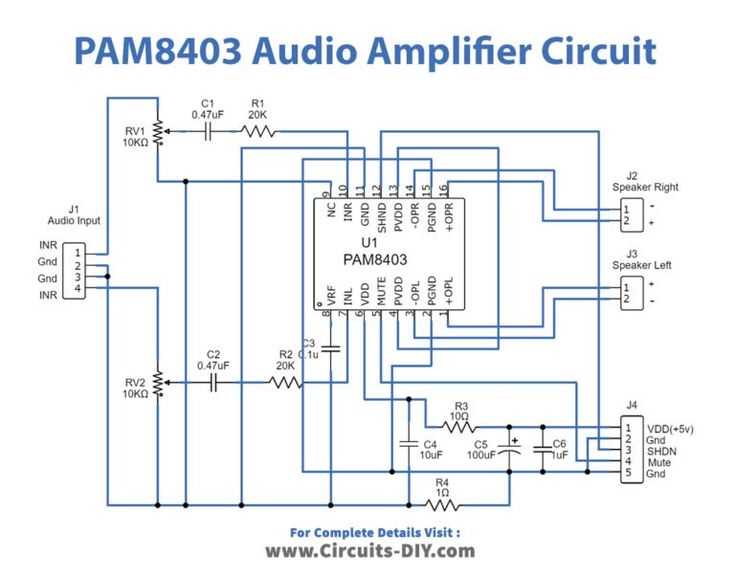

PAM8403 Module Component Setup and Connection Guide
Supply a regulated 5V DC source directly to the power pins and confirm voltage stability with a multimeter. Incorrect voltage levels can cause output distortion or trigger internal protection circuits.
Connect input signals through short shielded leads and match impedance with the source device. Line-level inputs from small media players or microcontroller outputs provide optimal clarity without overloading the module.
Attach speakers with impedance between 3 and 5 ohms to the output terminals. Avoid connecting loads below 3 ohms, as this may force the module into thermal shutdown or reduce its lifespan.
Position decoupling capacitors close to the power pins using values such as 100nF ceramic and 470µF electrolytic. This arrangement stabilizes voltage spikes and filters high-frequency noise that could interfere with audio performance.
Pin Functions and Voltage Requirements for PAM8403 Modules
Apply a steady 5V supply to the VCC and GND pins to maintain proper operation. The input and output terminals are clearly marked, with left and right channels separated for stereo configuration. Ensure input signals are line-level and do not exceed 2V peak-to-peak to prevent distortion.
Identify the mute and shutdown pins for controlling power states. Connecting the mute pin to ground disables output without affecting the supply, while pulling the shutdown pin low fully powers down the module. Maintaining voltage within 4.5V–5.5V prevents overheating and preserves audio clarity across both channels.
