If you need to ensure consistent functionality for sensitive equipment during sudden interruptions, setting up a reliable backup solution is the first step. A robust system for maintaining voltage flow without interruption typically involves key elements such as rectifiers, inverters, and batteries, each playing a crucial role in stabilizing the output. Understanding the connection and operation of these components will help you design a system that responds quickly to fluctuations, ensuring seamless protection against outages.
For anyone planning to assemble such a setup, it’s important to pay close attention to the exact roles of the various components. Rectifiers convert alternating current (AC) into direct current (DC), providing the necessary charge to the battery, while the inverter will ensure the smooth transition back to AC when needed. Each piece must be appropriately matched to avoid potential overloads and efficiency loss.
Once you’ve outlined your setup, careful planning is needed for layout and wire connections. Selecting the right type of battery based on your load requirements and ensuring proper ventilation are essential aspects often overlooked. Incorrect wiring or component failure can lead to severe inefficiencies or equipment damage, which can nullify the reliability of your backup plan.
Understanding the Structure and Functionality of a UPS System
The system designed to protect sensitive devices from voltage drops and blackouts includes several core components: rectifiers, inverters, and energy storage units. The rectifier plays a key role in converting AC to DC, providing charge to the battery. The inverter, on the other hand, is responsible for converting the stored DC back to AC when the grid is unavailable. A well-structured layout ensures that the transition between these states happens seamlessly, providing stable and continuous output.
Component Selection and Wiring Considerations
Choosing the right components is crucial. The inverter should be rated for the specific load it is expected to handle. For example, a high-capacity inverter may be required for more demanding equipment like servers or medical devices. When selecting batteries, consider both the voltage and the total energy capacity, which should be sufficient to run connected devices during an outage. Proper wiring is equally important; incorrect connections can lead to efficiency losses or even component damage. Ensure that wiring is rated for the expected load to avoid overheating and ensure safety.
Key Challenges and Troubleshooting Tips
Common issues in these systems often stem from improper maintenance or design flaws. If the inverter fails to function as intended, it could be a result of overloading or incorrect component sizing. Regular battery testing and voltage checks should be performed to ensure the system is in optimal working condition. If the system is underperforming, inspect for wiring errors, worn-out batteries, or malfunctioning rectifiers. Taking proactive steps such as routine inspections and proper installation can prevent these issues from affecting the overall performance.

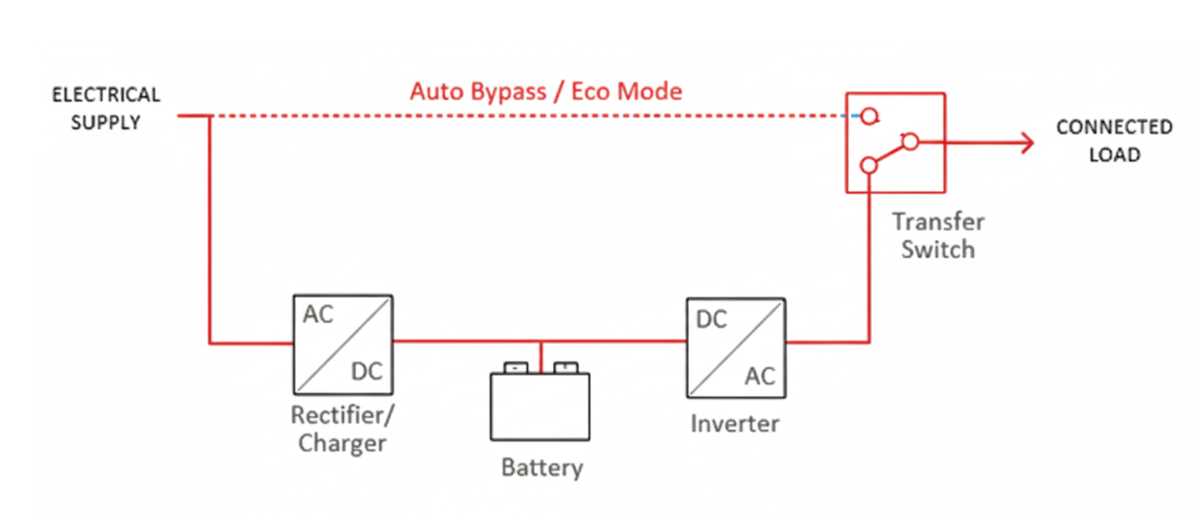

Components and Working Principle of an Online UPS System
The primary components of a backup system include rectifiers, inverters, and batteries. The rectifier converts the incoming alternating current (AC) into direct current (DC), charging the battery. When the system detects a disruption in the main power supply, the inverter kicks in to convert the stored DC energy back to AC, supplying the connected equipment without any delay.
Key Components Breakdown
- Rectifier: Converts AC to DC to charge the battery and ensures a stable voltage supply to the inverter.
- Inverter: Converts stored DC back to AC when the grid power is unavailable, maintaining a constant voltage output.
- Battery: Stores the energy needed to maintain operations during an outage, typically using lead-acid or lithium-ion cells.
- Bypass Switch: In some systems, this allows a smooth transition to grid power in case of a failure in the UPS system.
How the System Operates
The system continuously monitors the incoming AC voltage. As soon as it detects any fluctuation or power loss, the inverter immediately switches to DC from the battery, providing unbroken service. The system then keeps recharging the battery via the rectifier when the grid supply is stable. This seamless operation prevents any disruptions in critical operations, which is vital for servers, medical equipment, or industrial machinery that require consistent voltage.
