Start by identifying the key wires involved in the installation process. Make sure to carefully label and match each wire to the correct terminal on your control unit to avoid any issues. The correct placement of each wire ensures that the system will operate properly.
The next step is connecting the power and ground wires to their respective terminals. A poor connection can lead to malfunctioning or cause a short circuit. Ensure the power supply is stable, and the ground is connected to a clean, unpainted metal surface for optimal performance.
Check the signal wires as they play a crucial role in transmitting commands to the heating and cooling systems. A misconnected wire here can prevent your system from responding to adjustments or schedules. Pay attention to the color coding to ensure proper identification of each signal wire.
Once all wires are securely connected, perform a test to ensure everything is working as expected. This step will allow you to identify any potential issues before you complete the setup. A quick check of the system’s response will help avoid larger problems later on.
Wiring Guide for Smart Climate Control Systems
Ensure that all power sources are turned off before starting the installation. Begin by identifying the terminal for the power wire and securely connecting it to the main power input. Check the color codes carefully to confirm the correct placement of each wire to avoid any errors. Pay special attention to the ground wire, ensuring it connects to a clean metal surface for a stable connection.
Once the primary wires are in place, proceed to connect the signal wires according to the wiring plan provided by the manufacturer. These wires communicate with your HVAC system to manage temperature settings. After connecting, use a voltage tester to check for any shorts and confirm that all connections are tight and secure before powering the system back on.

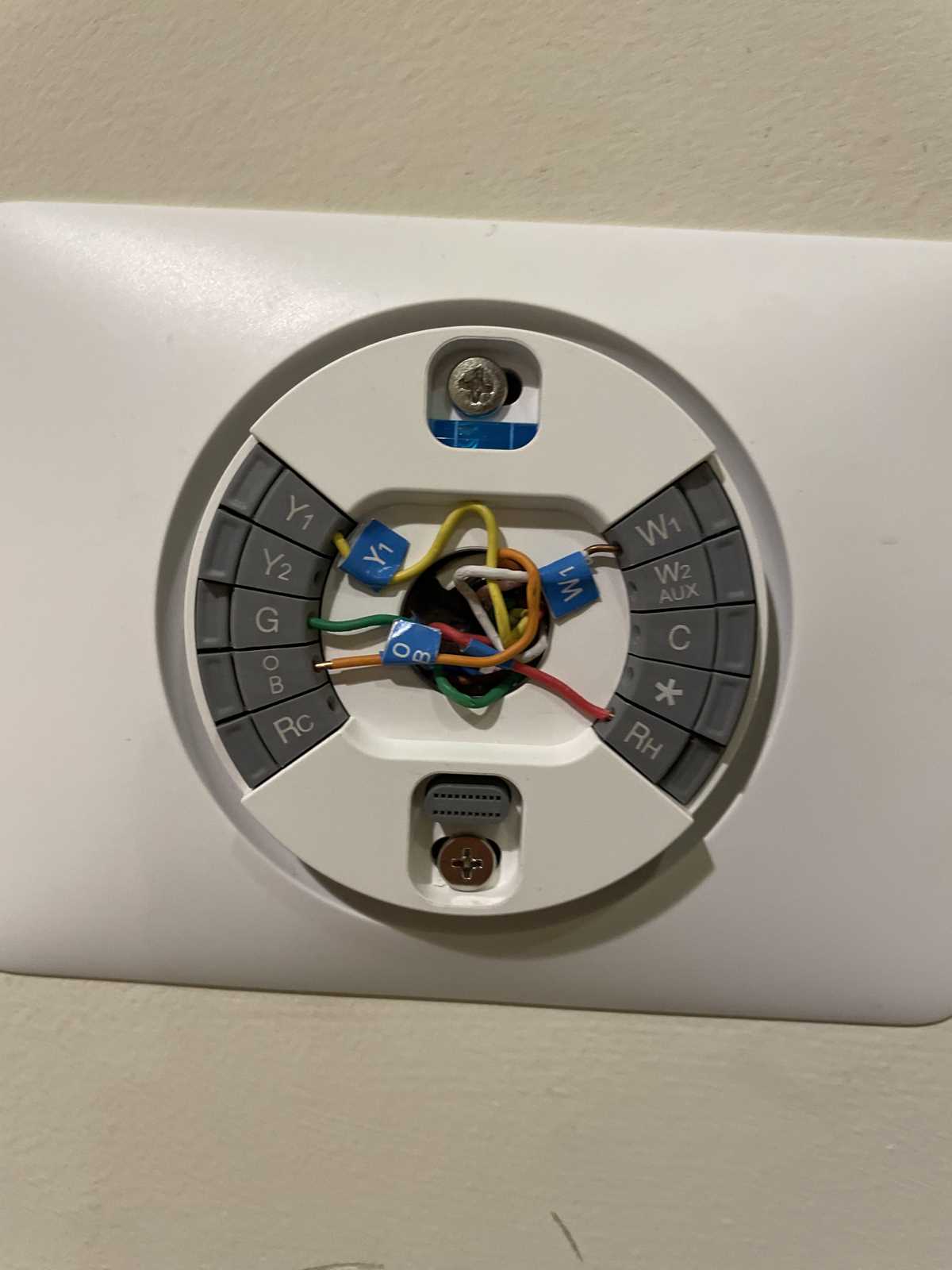

Identifying the Wires for Smart Climate Control Installation
Start by locating the main power input terminal. The power wire is usually labeled with a letter such as “R” or “C,” and it should be connected securely to its corresponding terminal. The red wire typically serves as the power wire, while the common wire may be blue or black. Double-check the color coding to prevent any confusion.
Next, identify the heating and cooling terminals, usually labeled with “W” and “Y” respectively. These wires control the heating and cooling systems of your unit. The “W” wire is connected to the heating relay, while the “Y” wire controls the cooling system. Make sure each wire is placed in the correct terminal to ensure proper system response.
- Red (R) – Power wire
- Blue (C) – Common wire
- White (W) – Heating control
- Yellow (Y) – Cooling control
Finally, check the auxiliary wires that might be needed for advanced features, such as the fan control (“G”) or emergency heat control (“E”). These wires vary depending on the system, so consult your unit’s documentation. A clear understanding of each wire’s function will streamline the installation and reduce errors during setup.
