Identify hot, neutral, and ground terminals before making any connections. Use a digital multimeter to verify voltage on each lead and ensure the panel power is turned off to prevent electric shock.
Use properly rated wires with at least 10 AWG gauge for 30 A load. Keep conductors short and route them away from sharp edges or areas prone to mechanical stress to avoid insulation damage.
Secure the outlet in a grounded box and attach the ground wire to the metal enclosure. This provides a safe path for fault currents and reduces the risk of electrical hazards during use.
Install a circuit breaker or fuse matching the outlet rating. A 30 A breaker will protect the appliance and prevent overheating of wires during overload conditions.
Check connections visually and tighten all screws to prevent loose contacts. Loose terminals can cause arcing and localized heating, which may damage the outlet or connected devices.
Electrical Connections and Step by Step Installation Guide
Start by turning off the main breaker and confirming that no voltage is present on the circuit. Identify the two hot terminals, the neutral, and the ground to ensure proper connection sequence.
Attach each conductor securely using screw terminals or approved connectors. Tighten screws to the manufacturer’s torque specification to prevent loose contacts, which can cause overheating and arcing.
Mount the outlet in a grounded enclosure and route all conductors neatly. Use cable clamps to prevent movement and protect wires from abrasion or accidental disconnection during use.
Test the installation with a multimeter after completing connections. Verify that hot lines carry 120 V each relative to neutral, that ground continuity is intact, and that the device is ready for safe operation before restoring full power.
Identifying Hot Neutral and Ground Terminals

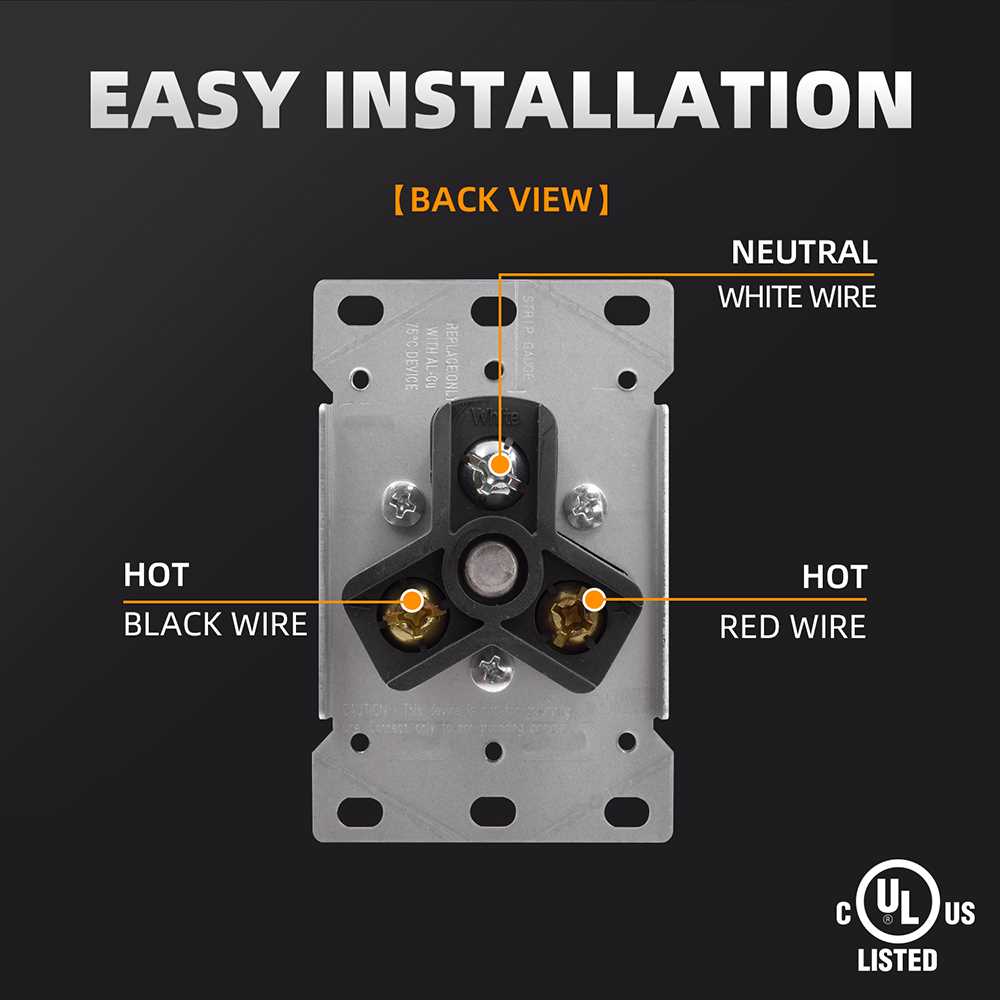

Start by labeling each conductor according to its function: two hot lines, one neutral, and a ground. Use color-coded markers or electrical tape–black or red for hot, white for neutral, and green or bare copper for ground.
Verify voltage on each line with a digital multimeter. Each hot conductor should read approximately 120 V relative to neutral, and the two hots should show 240 V between them. No voltage should be detected between neutral and ground.
Check continuity of the ground connection using the multimeter’s ohm setting. A low-resistance reading confirms that the grounding path is intact and capable of carrying fault current safely.
Tools and Safety Measures
Use insulated tools when handling terminals to avoid accidental short circuits. Always turn off the main breaker before disconnecting or connecting any conductors to reduce the risk of electric shock.
Inspect terminal screws and connectors for corrosion or damage. Clean or replace components as needed to ensure reliable contact, which prevents overheating and potential fire hazards.
Marking and Documentation
Mark terminals clearly on the outlet and panel to avoid confusion during installation or future maintenance. Create a small schematic noting which conductor connects to each terminal, including polarity and grounding reference.
Double-check all identifications before applying power. Confirm that hot, neutral, and ground lines match the outlet specifications and the appliance requirements to ensure safe and proper operation.
