To design an effective audio amplifier, start with selecting the right operational amplifier. The key to achieving clear sound reproduction lies in the op-amp you choose. Opt for a dual high-performance device, ideal for low-noise applications like audio processing. This specific component offers the necessary precision and stability for a wide range of audio systems, from basic amplifiers to more advanced setups.
Begin by calculating the gain for the amplifier. Select resistor values accordingly to ensure proper signal amplification without introducing distortion. A typical configuration involves feedback resistors and capacitors to control the bandwidth and reduce noise. Pay attention to the input and output impedance, as they are vital for achieving balanced sound output and preventing unwanted feedback.
Additionally, proper layout design is crucial. Ensure that the components are placed close together to minimize parasitic inductance and capacitance. Use high-quality capacitors to filter power supply noise and maintain consistent output. With correct design and assembly, you’ll create a circuit that not only delivers superior audio performance but is also robust against power fluctuations and other external factors.
NE5532 Circuit Design
When designing with this high-performance operational amplifier, start by selecting appropriate resistor and capacitor values to establish gain and stability. A typical configuration includes feedback resistors to control amplification. Adjust these components according to your desired output level, ensuring they work within the op-amp’s specifications. Capacitors placed in the feedback loop help stabilize the frequency response and minimize unwanted oscillations.
For an optimal setup, pay close attention to the power supply and grounding. A clean, stable power supply is critical to minimize noise and prevent fluctuations that could affect the output. Use bypass capacitors close to the power pins to filter high-frequency noise. Proper grounding ensures that unwanted signals don’t interfere with the desired output, especially in audio applications where clarity is key.

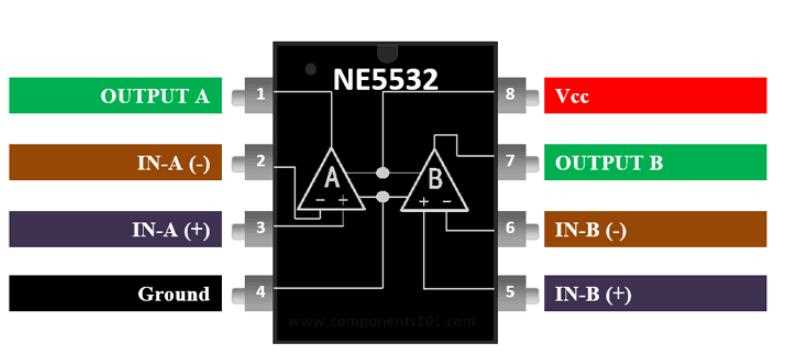

Pin Configuration and Function
Understanding the pin layout of the op-amp is necessary for proper assembly. The typical configuration involves input and output pins along with power supply pins. Ensure that the non-inverting and inverting input pins are connected correctly for the desired operation. Connect the output pin to the load while observing the voltage levels that the amplifier is designed to handle.
Another crucial step is designing the feedback network. Use resistors to determine the overall gain of the amplifier. A standard method for calculating gain is using the formula: Gain = 1 + (R2/R1), where R2 is the feedback resistor, and R1 is the resistor connected to the input. Adjust the resistor values to suit the desired output level and avoid distortion.
Thermal Management and Protection
When dealing with higher power levels, managing heat dissipation is key. Overheating can lead to performance degradation or permanent damage to the components. Consider adding a heat sink or choosing components rated for higher temperatures. Also, implement current-limiting resistors and protection diodes to safeguard the amplifier and the connected components. These measures ensure the longevity of the design and enhance its reliability in real-world applications.
How to Build a Simple Audio Amplifier Using the NE5532
Start by gathering the necessary components: a high-performance op-amp, resistors, capacitors, and a power supply. Begin with the selection of a low-noise op-amp to ensure clear, undistorted audio output. Choose resistors to set the desired gain, and capacitors for frequency response and noise filtering. The power supply should provide clean and stable voltage, with bypass capacitors close to the power pins to reduce ripple and prevent distortion.
The first step is to connect the op-amp’s pins correctly. The non-inverting input will be connected to the audio signal, while the inverting input goes to a resistor that controls the gain. The output pin is then connected to the load, which could be speakers or a subsequent audio stage. Ensure that the power supply connections are secure to avoid noise and power instability.
Setting Gain and Frequency Response
To adjust the gain, place a feedback resistor between the output pin and the inverting input. The gain formula is simple: Gain = 1 + (R2/R1), where R2 is the feedback resistor and R1 is the resistor connected to the inverting input. Use capacitors in parallel with the feedback resistor to limit the bandwidth and shape the frequency response. The capacitor’s value will determine the cutoff frequency and prevent unwanted high-frequency noise from passing through.
Next, add capacitors to filter the power supply. A 100nF ceramic capacitor placed across the power supply rails will help eliminate high-frequency noise. For better filtering, use a larger electrolytic capacitor, such as 10uF, at the power input. This ensures stable voltage delivery to the op-amp and improves overall performance.
Final Assembly and Testing
Once all components are connected, carefully inspect the layout for any potential short circuits or loose connections. Use a breadboard for prototyping before soldering the final design. After assembling, power on the amplifier and test it with a low-power audio source. Start with a low volume to avoid damage to the op-amp or other components. Measure the output using an oscilloscope to ensure that the signal is clean and free from distortion.
If the amplifier works as expected, transfer the design to a permanent board. Pay attention to component ratings, ensuring that the resistors, capacitors, and op-amp can handle the intended power levels without overheating. Properly enclose the amplifier in a case to prevent accidental shorts and interference from external sources.
