To begin, always connect the power supply to the first unit. From there, you can extend the line to additional units, ensuring that each device receives power in sequence. Be sure to maintain a proper ground connection to prevent any electrical faults or hazards.
Next, calculate the total load that will be placed on the system. Ensure that the wire gauge and circuit breaker rating are adequate for the combined load of all connected devices. Overloading can result in circuit failure or fire hazards.
When extending power to additional units, make sure the connections are secure and insulated. Use wire nuts or terminal blocks to prevent exposed wires, which could cause short circuits or shock hazards. Properly labeling each wire and connection will also help during maintenance or troubleshooting.
Always check the local electrical code to ensure that your setup is in compliance with safety standards. If unsure, consult an electrician to verify that the installation is correct and safe.

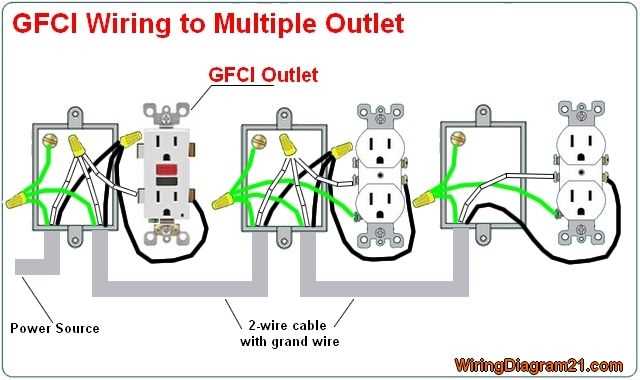

How to Wire Multiple Outlets in Series
Start by determining the total length of wire needed. Measure the distance from the power source to the last device in the sequence, accounting for all connections between devices. Ensure you use the correct wire gauge for the combined load to prevent overheating or voltage drops.
Begin by connecting the power source to the first device. The hot (live) wire should be connected to the input terminal, while the neutral wire should go to the corresponding terminal on the outlet. Ensure the ground wire is also connected to the device for safety.
Next, run the wires from the first device to the second. The live wire from the first unit connects to the live terminal on the second device, and similarly for the neutral and ground wires. Repeat this process for each additional unit in the series.
As you continue with the installation, pay close attention to the junctions between the units. Ensure that all connections are tight and secure, with no exposed wires. Use wire nuts or crimp connectors to join the wires to prevent any risk of short circuits.
- Double-check each connection for any loose or exposed wires before moving on to the next step.
- Ensure each device is securely mounted and there are no grounding issues that could lead to electrical hazards.
Once all devices are connected, it’s important to test the system. Use a voltage tester to verify that each device is receiving power properly. Ensure that the total voltage matches the supply voltage, and there is no significant drop between the first and last devices.
In series, the total voltage is distributed across the devices, so you must ensure that the combined voltage requirements of all the units do not exceed the supply voltage. If the devices are rated for different voltages, additional components like resistors may be necessary to balance the load.
Finally, after testing and ensuring the system is properly installed, consider adding a circuit breaker or fuse to protect the entire setup from overcurrent. This step is crucial for preventing potential fire hazards or electrical damage due to a short or overload.
Parallel Outlet Wiring Setup and Best Practices
To wire several devices in parallel, connect each unit directly to the power source. This ensures each unit receives the full voltage, without dividing it. Begin by connecting the live (hot) wire to each unit’s input terminal, followed by the neutral wire to the corresponding terminal on each device. Make sure the ground wire is also connected properly to each device for safety.
Optimizing Wire Gauge and Current Handling
When running several lines in parallel, it’s important to use the correct wire gauge. The wire gauge should be sufficient to handle the total current load without excessive voltage drop or overheating. For example, a 14-gauge wire is suitable for most residential applications, but you should calculate the total current draw to ensure it matches the wire’s capacity.
Testing and Verifying the Setup
After completing the installation, test the system with a voltage tester to ensure each device is receiving the correct voltage. Check all connections for tightness and any signs of potential short circuits. Lastly, ensure the breaker panel is rated to handle the combined load of the devices connected in parallel.
Safety Considerations and Troubleshooting for Multiple Outlets
Before starting any electrical project, ensure the power is turned off at the breaker panel to avoid electrical shock. Always use a voltage tester to confirm the circuit is de-energized before working on any wires or connections. Additionally, wear rubber gloves and use insulated tools to further reduce the risk of injury.
Proper Grounding and Circuit Breakers
Each connected unit should be properly grounded to prevent electric shock in case of a fault. Use a dedicated ground wire for each device and make sure it’s securely attached. Additionally, ensure the circuit is protected by an appropriately rated breaker. The breaker should be rated for the total load, and it should trip if there is an overload or short circuit.
Identifying Common Problems and Solutions
If a connected device is not receiving power, check the connections first. Loose wires can cause poor contact, leading to a loss of power. If everything appears secure but the unit still doesn’t work, use a multimeter to check the voltage at the terminals. If there’s no voltage, check the breaker to ensure it’s functioning properly and not tripped.
Another common issue is overloads. If too many devices are connected to one circuit, it could cause the breaker to trip. Always calculate the total wattage of all devices and ensure they don’t exceed the capacity of the circuit. Use a separate circuit if the total load is too high for one line.
Finally, if you notice any signs of overheating, such as melted wires or burnt smells, immediately disconnect the power and inspect the system. Overheating can be a sign of poor connections or undersized wiring. Replace any damaged components before restoring power.
