Connect the launch-control limiter module directly to the ignition control unit and battery before routing any trigger leads. The power conductor should run straight to the positive battery terminal with a fused line rated around 12–15 amps, while the ground lead must attach to bare chassis metal or the battery negative post. Poor grounding creates unstable rpm limiting, misfire bursts, or delayed limiter engagement during launch.
The activation circuit normally links to a clutch pedal switch so the limiter engages only while the pedal is pressed. A thin trigger lead from the module connects to the switch output that becomes grounded during clutch depression. Once the pedal is released, the signal breaks and the ignition system returns to the primary rev limit. This arrangement keeps engine speed steady during staging, usually between 3000 and 5500 rpm depending on traction and engine torque.
Correct signal routing between the limiter unit and ignition controller is required for stable rpm control. A tach signal lead must connect to the ignition box tach output terminal, allowing the limiter circuit to read engine speed pulses. Install the rpm plug-in module that matches the desired launch speed; common values include 3500, 4000, and 4500 rpm. Keep signal wires away from coil primary leads and alternator charge cables to reduce electrical noise that can interrupt rpm sensing.

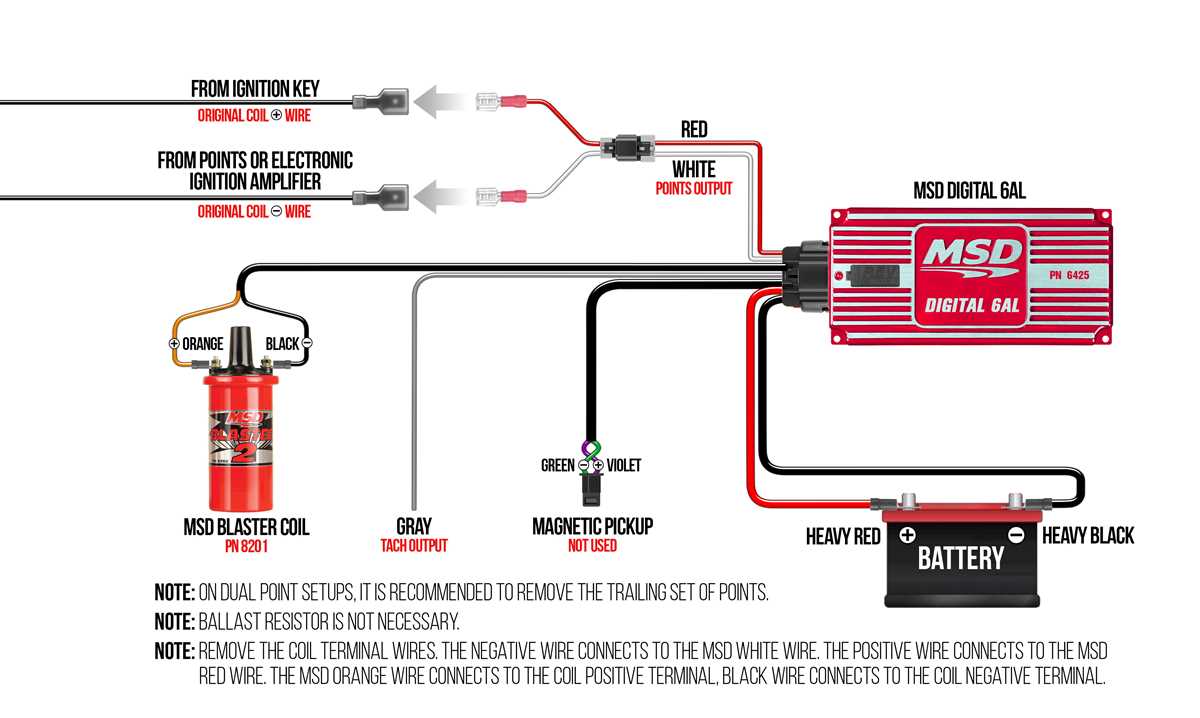

MSD 2 Step Wiring Diagram With Ignition Box Clutch Switch and Launch RPM Setup
Connect the launch limiter module directly to the ignition control unit using the designated trigger and power leads. The red conductor must run to a switched 12-volt source that remains active during cranking, while the black conductor attaches to a clean chassis ground or the battery negative terminal. Keep this ground point free of paint and corrosion; resistance above 0.2 ohms can cause unstable rpm limiting.
The activation lead should route through the clutch pedal switch so the limiter engages only during staging. Use a normally open switch that closes when the pedal is fully pressed. One terminal connects to chassis ground and the other to the module trigger input. Pressing the clutch completes the circuit, allowing the ignition control unit to receive the launch control signal.
Route the tach signal lead from the limiter module to the tach output terminal on the ignition controller. This connection allows the limiter circuit to read engine speed pulses generated by the ignition box. Avoid routing this conductor alongside alternator charge cables or spark plug leads, since electromagnetic interference can distort the rpm signal and cause irregular ignition cut patterns.
Select the launch rpm using plug-in modules or rotary limit selectors depending on the hardware version. Typical drag launch settings range between 3200 and 4800 rpm for naturally aspirated V8 engines with manual transmissions. High-torque turbocharged combinations may require 4500–5500 rpm to build boost before clutch release.
Mount the limiter module at least 8–10 inches away from ignition coils, distributor bodies, and high-current relay blocks. Heat and electromagnetic fields from these components can interfere with signal processing. Secure the unit to a metal panel using rubber isolators to reduce vibration.
Use 18-gauge insulated conductors for trigger circuits and 14–16 gauge leads for power supply lines. Strip approximately 6–7 mm of insulation, crimp insulated terminals, and apply heat-shrink tubing over the connection. Poor crimps increase resistance and may cause intermittent limiter activation during staging.
After completing all connections, test the system with the vehicle stationary. Press the clutch pedal while lightly applying throttle; engine speed should stabilize exactly at the chosen launch limit. Release the clutch and confirm that the primary rev limiter of the ignition controller resumes normal operation without delay.
Red and Black Power Lead Connections Between MSD 2 Step Module and Vehicle Battery
Connect the red power lead directly to the battery positive terminal or to a fused distribution block tied to the battery. Use a fuse rated between 12 and 15 amps placed within 12 inches of the battery to protect the limiter module from short circuits. Route the cable away from exhaust manifolds and steering shafts, securing it with insulated clamps every 8–10 inches. Use 14–16 gauge copper conductor to maintain stable voltage under load.
The black lead must attach to a low-resistance ground point. Fasten it to the battery negative terminal or a bare metal chassis location connected to the battery by a heavy ground strap. Remove paint and oxidation from the contact surface before tightening the ring terminal. Electrical resistance between the ground point and battery negative should remain below 0.2 ohms. Keep this conductor short and avoid stacking it with high-current accessories such as cooling fans or starter relays, which can introduce voltage fluctuations that interfere with the ignition limiter module.
