Start by selecting the correct wiring components that can handle the electrical load for proper lighting operation. Use wires that are thick enough to avoid voltage drop and ensure safe operation. Most systems will use 18 AWG or 16 AWG for connections to ensure durability and minimal heat generation.
Next, ensure that each connection is properly insulated to prevent short circuits. Use high-quality electrical tape or heat shrink tubing to secure the connections, especially where wires connect to lights or switches. Proper insulation will also help prevent moisture damage that can cause the system to malfunction.
It’s also important to route the wires carefully along the frame, avoiding places where they may be pinched or exposed to extreme conditions. Ensure that the wires have enough slack to prevent strain but are tight enough to avoid loose connections. Always check the integrity of your connections after installation, as even small loose points can cause flickering or complete failure of the lights.

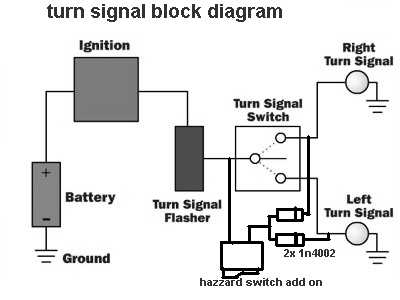

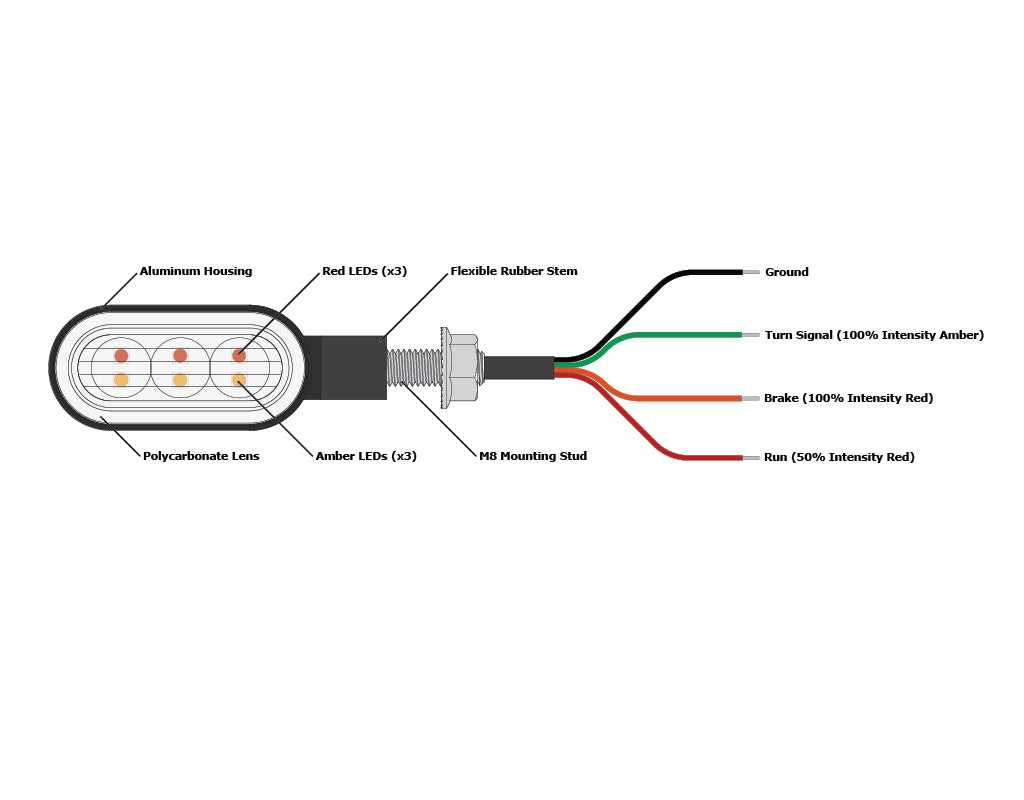

Motorcycle Turn Signal Wiring Diagram
To begin, ensure that the correct wire gauge is selected for the job. For most systems, 18 AWG wire will suffice for the connections to the lights, but always check the specifications for your specific setup. Using a thicker gauge can help prevent voltage loss and overheating during operation.
Proper grounding is key to a functioning electrical system. Attach the ground wire securely to the frame, ensuring it is free of rust or paint. A clean, direct ground connection will reduce the risk of flickering lights or malfunction. Additionally, make sure the ground wire is long enough to avoid stretching or pulling that could cause loose connections.
- Ensure proper insulation on each connection to avoid short circuits.
- Secure wires with zip ties to prevent chafing against the frame or other components.
- Check for proper voltage at each connection point using a multimeter to verify functionality.
Lastly, when connecting the lights, follow the specific instructions for your model. Some setups use a relay to control the flow of current to the lights, while others rely on a direct connection through the switch. Test the lights after installation to ensure everything is working correctly, and inspect the system regularly to check for wear and tear or potential issues.
How to Wire Motorcycle Turn Signals for Accurate Function
Start by connecting the positive wire from the lights to the switch, ensuring that the wire is securely attached and insulated to prevent accidental shorts. Use an appropriate connector, such as a bullet connector or a spade terminal, for a reliable, secure connection. Double-check the polarity to avoid incorrect current flow, which could cause malfunctioning lights.
Next, route the negative wire to a clean grounding point on the frame. Make sure the grounding connection is solid and free from rust, paint, or debris that might prevent proper conductivity. A loose or poor ground connection can lead to flickering or non-functional lights, so this step is critical for stable operation.
Finally, after all the connections are made, test the system to ensure all lights function correctly. Use a multimeter to check the voltage at each connection point, and verify that the lights illuminate as expected. If any issues arise, inspect the connections, and ensure that the fuses are intact and that the ground wire is properly connected.
