Millermatic 135 parts diagram and guide for easy repair

millermatic 135 parts diagram

If you’re facing issues with your welder, identifying the faulty components can often be the first step toward a quick fix. Start by reviewing the layout of the internal elements and connections. Having a clear visual of the machine’s assembly helps pinpoint which part might need replacement or repair. Whether it’s the drive motor, contactor, or the torch, understanding the function of each part simplifies troubleshooting and maintenance.

The detailed breakdown of each section allows for easier access to the right tools and procedures for replacing or fixing malfunctioning pieces. For instance, when the wire feed isn’t working correctly, you may find that a worn-out feeder or blocked liner is causing the issue. These kinds of problems are easier to address once you know exactly where everything fits together and how they interact.

By closely examining the layout, you can also prevent common mistakes during reassembly. Each part has a specific location, and understanding this will save you time and effort in the long run. A detailed diagram offers more than just a reference; it becomes a guide to maintaining the performance and longevity of your equipment.

Millermatic 135 Parts Breakdown

millermatic 135 parts diagram

When facing performance issues with your welder, start by identifying the exact components that may be malfunctioning. A clear understanding of the system layout and the role each part plays can significantly speed up the repair process. Begin by examining the wire feed mechanism. A blocked or damaged liner can impede wire movement, which often causes the most common issues with feeding.

Next, inspect the drive motor and rollers. These components are essential for consistent wire delivery. If the motor is not running smoothly, check for wear on the drive gears or potential misalignments. For any issue related to overheating or power loss, focus on the internal circuit board and associated components. Overheating could be a result of faulty relays or damaged fuses, and knowing where they are located will help you quickly address this problem.

Lastly, the torch assembly and consumables, such as the nozzle and contact tip, should be checked regularly. These parts often experience wear and tear, affecting the quality of your welds. Understanding where each component fits and how they connect will prevent unnecessary breakdowns and keep the welder operating at full capacity.

Understanding Key Components of the Welder

millermatic 135 parts diagram

The drive motor plays a pivotal role in feeding the wire to the welding gun. When troubleshooting, check if the motor is running smoothly. A malfunctioning motor can cause erratic wire feeding or a complete failure to feed, requiring either motor repair or replacement. Also, inspect the drive rollers for any signs of wear or blockage, as these can significantly affect wire movement.

The contactor is another key part, controlling the flow of electricity to the welding torch. If the contactor isn’t engaging properly, the welder won’t generate enough heat for welding. Ensure the contactor is clean, and the spring mechanism is not worn out, as any malfunction here will prevent the welder from functioning as intended.

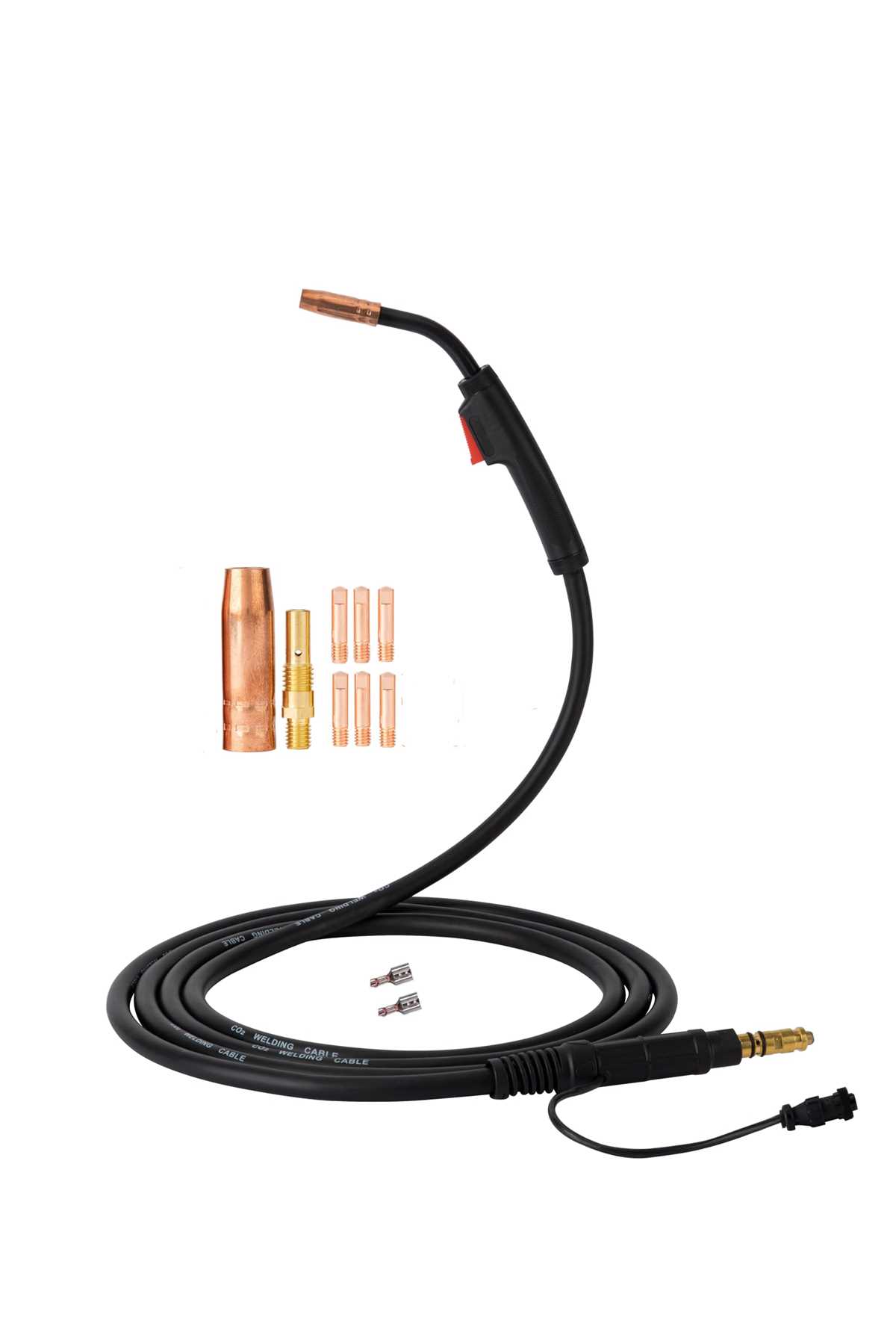

Another important component to check is the torch assembly. Over time, the nozzle and contact tip can degrade due to heat buildup. If the welding arc appears unstable or the welds are uneven, inspect these parts and replace them as necessary. Proper maintenance of the torch is critical for high-quality welds.

Step-by-Step Guide to Repairing Common Welder Components

If the wire feed mechanism isn’t functioning properly, begin by disconnecting the welder from the power source. Open the cover to access the wire feeder. Check the rollers for any blockages or debris that could hinder smooth movement. Clean or replace the rollers if needed. Also, verify the condition of the wire liner. A blocked or worn liner will cause feed issues, so replace it if it shows signs of wear or buildup.

If the contactor is malfunctioning, start by checking the power supply to ensure it’s stable. Inspect the contactor for visible signs of damage or wear. If the contacts are dirty, clean them with a fine abrasive or contact cleaner. If cleaning doesn’t resolve the issue, the contactor may need to be replaced. Reassemble the unit and test for proper engagement by activating the machine.
