Step by Step Guide to Setting Up Max7219 LED Matrix with Pin Layouts and Power Connections

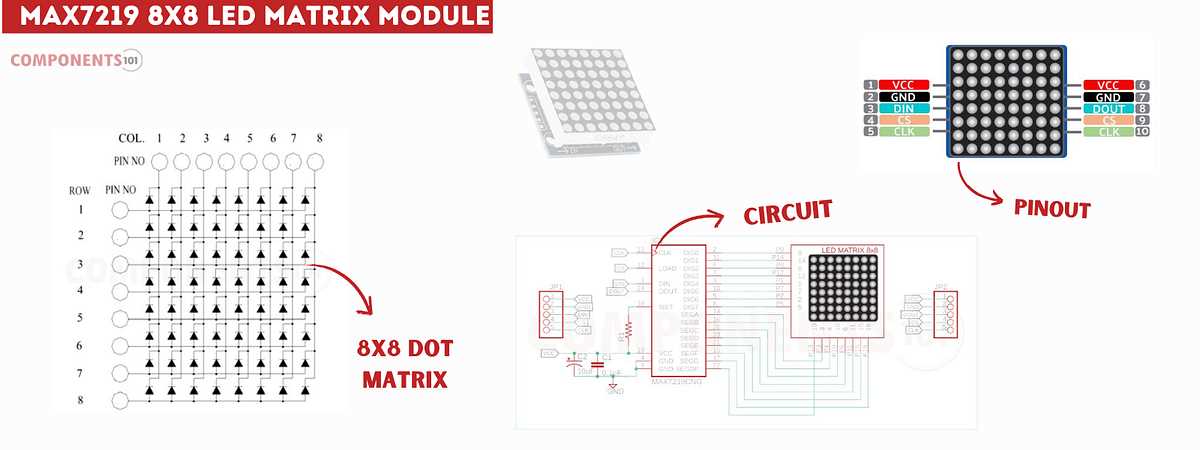

max7219 led matrix circuit diagram

Connect the control unit directly to a stable 5V power source to prevent voltage drops that could cause flickering or incomplete activation of segments. Ensure all ground connections are securely fastened to maintain signal integrity.

Prioritize serial data alignment when linking multiple display units. Incorrect sequencing can result in reversed patterns or missing columns. Use consistent labeling of input and output pins to streamline expansion and maintenance.

Adjust the brightness level gradually during testing to avoid overheating the resistive elements. A setting between 40% and 60% provides clear visibility without generating excessive heat, extending module lifespan.

Use short, shielded cables for data lines to reduce electromagnetic interference, especially when modules are stacked or arranged in tight configurations. This improves responsiveness and reduces timing errors during rapid updates.

Display Module Setup and Connection Guide

Connect the control chip to a regulated 5V power supply and ensure all ground points are linked to prevent signal drops or incomplete activation of the segments. Confirm that the data input aligns with the correct pin order to maintain proper sequencing.

When chaining multiple panels, link output pins from the first unit to the input of the next while maintaining consistent orientation. Use short, insulated cables for data and clock lines to reduce interference and prevent flickering during rapid updates.

Understanding Pin Assignments and Signal Flow

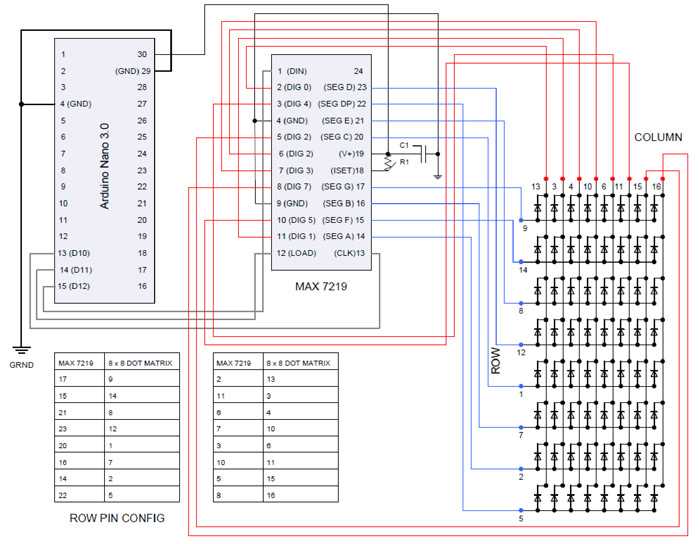

max7219 led matrix circuit diagram

Verify each pin assignment carefully before powering the module. Connect data in, clock, and load lines according to their specified positions, and maintain a clear mapping to prevent overlapping signals that can cause flickering or incorrect patterns.

Follow the recommended signal flow from the control unit to each segment driver. Ensure the propagation path from output to input of consecutive modules is uninterrupted, and use proper grounding and decoupling capacitors to stabilize voltage levels and maintain consistent brightness across all sections.
