Connect the main power lead directly to the sensor positive terminal using a 5–10 amp inline fuse to protect the unit from short circuits. Use 18 AWG stranded copper for cable runs under 3 feet and 16 AWG for longer distances to maintain accurate readings.
Attach the ground wire securely to a clean metal surface or engine block to ensure stable reference voltage. Check for corrosion and tighten connections to avoid signal fluctuations that can affect performance.
Route all conductors away from heat sources, moving components, and sharp edges. Use split loom tubing or flexible conduit where wires pass through brackets or panels to prevent insulation damage.
After completing the connections, measure voltage at the signal pin while the engine is idling. Expected readings typically range from 0.5 to 4.5 volts depending on airflow. Deviations indicate poor contact, incorrect pin assignment, or damaged conductors.
Sensor Electrical Connections
Connect the positive lead directly to the sensor terminal using a 5–10 amp inline fuse to protect the unit from short circuits. Use 18 AWG stranded copper for runs under 3 feet and upgrade to 16 AWG for distances over 3 feet to maintain consistent signal integrity.
Secure the ground wire to a clean, unpainted metal surface or engine block. Loose or corroded connections can cause voltage fluctuations, resulting in inaccurate sensor readings or erratic performance.
Route all conductors away from hot surfaces, sharp edges, and moving parts. Use split loom tubing or flexible conduit for sections passing through metal brackets or panels. Secure cables with non-conductive clamps every 12 inches to reduce wear from vibration.
- Label all leads to distinguish power, ground, and signal wires for easier troubleshooting.
- Measure voltage at the sensor output pin with the engine idling; expected values range from 0.5–4.5 volts depending on airflow.
- Monitor the temperature of connections during initial operation; excessive heat indicates loose terminals or undersized conductors.
- Perform periodic continuity checks to ensure reliable operation and maintain accurate sensor output.

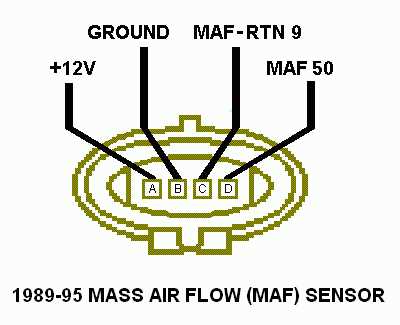

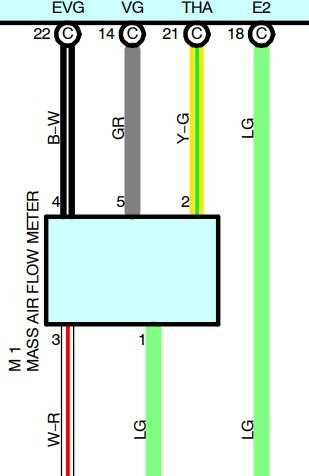

Identifying Pins and Signal Wires
Locate the sensor connector and identify each pin according to the service manual. The power pin is usually marked with a red or pink wire, the ground with black, and the signal wire varies but often is yellow or blue.
Use a multimeter to verify pin functions before connecting. Measure voltage between the power and ground pins with the ignition on; typical values range from 4.5 to 5 volts. Signal pins should show minimal voltage until the engine starts drawing air.
Mark each conductor with numbered or color-coded labels. This helps prevent misconnection during installation or future troubleshooting and ensures the sensor communicates correctly with the engine control unit.
- Check connector terminals for corrosion or bent pins before connection.
- Confirm continuity of each wire from the sensor to the control module.
- Document pin assignments to reference during maintenance or replacement.
- Re-test signal voltage after installation to verify correct sensor output under idle and load conditions.
