Install the power transformer close to an outdoor GFCI outlet and route a 12-volt garden illumination circuit from this unit to each fixture using direct burial cable. A typical system reduces household 120V supply to a safer level for yard lamps, path markers, and accent spot units placed along walkways, trees, or patios.
Use 12-gauge or 14-gauge underground cable for most residential yard light installations. Cable runs longer than 30–40 meters often require thicker conductors to prevent brightness loss at distant fixtures. Place the cable in shallow trenches about 10–15 cm deep and secure it with plastic stakes near each luminaire.
The transformer distributes current through a main line that branches to several fixtures. Each lamp connects with insulation-piercing connectors or sealed junction clips designed for outdoor use. Correct polarity between the two conductors helps maintain stable lamp output, especially with LED fixtures.
Plan the cable layout so the total wattage of all fixtures stays below the transformer rating. For example, a 150-watt unit can power ten 12-watt path lamps or a mix of spot units and deck lights. Mapping the cable routes and fixture positions before digging prevents unnecessary splices and keeps the installation organized.

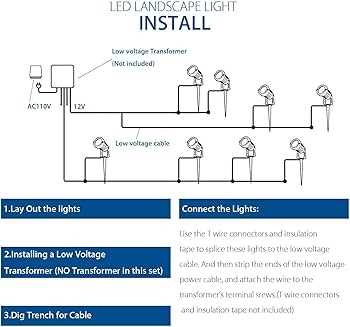

Low Voltage Landscape Lighting Wiring Diagram With Transformer and Outdoor Light Connections
Mount the step-down transformer on an exterior wall near a weather-protected 120V outlet and route the two-conductor garden power line from this unit toward all yard fixtures. The device converts household current to 12V or 15V output, allowing safe operation of pathway lamps, spot units, and deck luminaires placed around patios, trees, and walkways.
Use direct burial cable rated for outdoor use and match the conductor thickness to the distance from the transformer. Typical residential setups rely on:
- 14-gauge cable for runs up to about 15 m
- 12-gauge cable for runs between 15 and 30 m
- 10-gauge cable for longer circuits or higher lamp counts
Each fixture taps into the main cable using sealed piercing connectors that clamp through insulation and contact the copper conductor. These connectors avoid cutting the cable and reduce moisture entry. Keep joints above soil level during installation, then cover them with mulch or shallow soil after testing the system at night.
Plan the fixture connection order before digging trenches. A typical yard system follows this routing:
- Transformer output terminals
- Main two-conductor garden cable
- Branch connection to pathway or accent lamp
- Continuation of the main line to the next fixture
- Final lamp at the end of the circuit
This arrangement distributes current evenly and prevents brightness drop across distant lamps while keeping cable paths short and easy to maintain.
Transformer connection layout and main cable routing for 12V garden lighting systems
Mount the step-down power unit at least 30–50 cm above ground level on a wall or solid post near a protected 120V outlet. This device converts household current into a 12-volt supply that feeds yard lamps through a two-conductor outdoor cable.
Connect the primary side of the transformer to the household outlet through a weather-rated plug or junction box. The secondary side contains two screw terminals where the garden cable attaches. Use copper conductors rated for burial and tighten the terminal screws firmly to prevent heat buildup.
Main cable routing strategy
Route the main line from the transformer toward the first group of fixtures using the shortest practical path. Keep the cable about 10–15 cm below soil level and avoid sharp bends around stones or edging materials. Leave a small service loop near each lamp position so the fixture can be moved slightly during maintenance.
Typical conductor sizes for yard illumination circuits:
14-gauge for short runs with a small number of lamps.
12-gauge for medium distances around patios or walkways.
10-gauge for longer paths exceeding 30 meters or higher wattage loads.
Fixture connection pattern
Attach each lamp to the main cable using sealed clamp connectors designed for outdoor use. These connectors pierce insulation and contact the copper core without cutting the cable. Position them above ground during testing and press them into soil or mulch only after confirming that all lamps illuminate evenly.
A simple routing layout normally follows this order: transformer output → main two-conductor cable → first fixture tap → continuation of the cable to the next fixture → final lamp at the end of the run. This arrangement keeps conductor length predictable and simplifies troubleshooting if one section stops supplying power.
Keep total lamp wattage below the transformer rating. For example, a 150-watt unit can support roughly twelve 12-watt fixtures or a mix of path lamps and spot units while maintaining stable brightness along the entire cable route.
