To build a basic amplifier for small sound systems, the first step is to ensure that the correct components are in place. Focus on connecting the appropriate pins from the power supply to the amplifier’s input and output terminals. Ensure that the input signal is properly conditioned and that the output is suitable for driving speakers.
The circuit should include a stable power supply that provides the required voltage for the amplifier to function correctly. Use a filter capacitor to stabilize the power input and prevent noise from interfering with the output. Additionally, ensure that the proper resistors and capacitors are connected to fine-tune the amplifier’s gain and frequency response.
Once the initial connections are made, verify that the output is free from distortion and has enough power to drive the connected speakers. If any issues arise, check for incorrect connections or faulty components. A multimeter can help verify voltage levels, ensuring the system is working as intended.

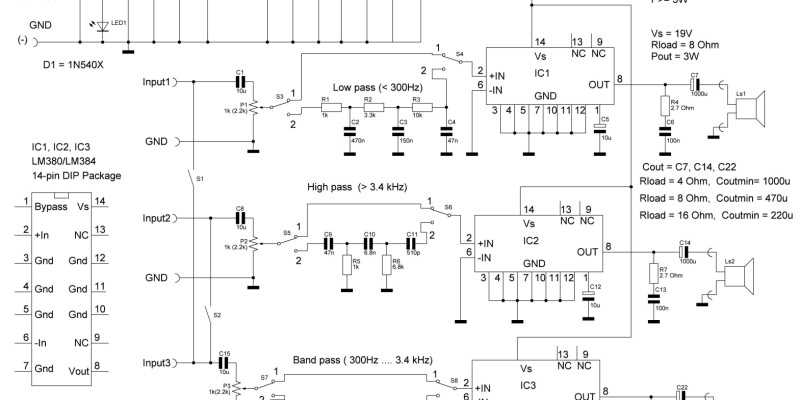

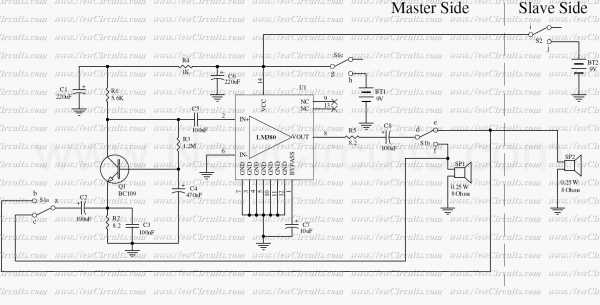

LM380 Audio Amplifier Circuit Design
Start by ensuring the input and output terminals are properly connected. The input should be linked to the signal source, while the output connects to the load, such as a speaker. Check that the power supply provides the correct voltage, typically around 14V to 18V, depending on the application. Proper grounding is also crucial to minimize noise and interference in the system.
Next, make sure that the capacitor between the output and ground is chosen carefully. This component helps filter out any high-frequency noise that could distort the signal. Use a capacitor with a value of about 100nF for standard applications. Similarly, resistors placed at the right spots determine the gain of the system. Adjusting these resistors allows for tuning the amplification power for your specific needs.
After wiring, check the stability of the system. A multimeter should be used to verify the voltage at various points to ensure that there is no overload or underperformance. Additionally, ensure that the circuit functions as expected by testing the output with different frequencies. This process helps ensure the system’s performance matches the desired specifications.
Understanding the LM380 Amplifier Pinout and Connections
The LM380 has a specific pin configuration that must be followed to ensure proper operation. Pin 1 is the ground pin, which must be connected to the system’s ground to complete the circuit. Pin 2 is the input pin, where the signal is fed into the system. It is important to note that this pin is where the audio or signal source should be connected for amplification.
Pin 3 is the output, where the amplified signal is sent to the speaker or the load. The signal at this point will be stronger than the input signal, as it has been processed by the internal amplification circuitry. Pin 4 is used to connect the feedback loop. This pin controls the gain of the amplifier and is where feedback components, like resistors or capacitors, should be placed.
Pin 5 is another key pin; it is used for the power supply, providing the necessary voltage to the system. For the LM380, this voltage typically ranges from 14V to 18V, ensuring the proper operation of the internal circuitry. Pin 6 is the bypass pin, often connected to a capacitor to filter out high-frequency noise. The capacitor helps maintain a cleaner output signal, ensuring minimal distortion in the final sound.
Pin 7 is the output ground, which works in conjunction with Pin 1 to form the ground path for the amplifier. A clean and stable ground connection is crucial for minimizing noise and interference in the amplified signal. Finally, Pin 8 is the power supply pin, connected to the positive side of the power source. This is where the voltage input from the external power supply is applied to the internal amplifier system.
Practical Tips for Pin Connections
- Ensure Pin 1 is securely connected to ground to avoid interference or unstable operation.
- When connecting the input (Pin 2), use a signal source that matches the required input specifications to prevent damage to the system.
- Use a filter capacitor between Pin 6 and ground to reduce high-frequency noise and improve signal clarity.
- The feedback loop at Pin 4 should include components that adjust the gain as needed for your application. Typical values are between 10k and 100k ohms.
Common Mistakes to Avoid
- Connecting the power supply voltage to the wrong pins can damage the device. Double-check the voltage requirements before powering up.
- Using improper feedback components can lead to distortion or undesirable amplification characteristics.
- Not providing a stable ground connection at Pin 1 can introduce hum and noise into the output.
Understanding these pin connections and the role each one plays is key to designing a reliable system. Make sure to follow these guidelines closely and verify your connections before powering up the device to ensure optimal performance.
