To properly connect electrical circuits, first identify the source and the destination of power. The input wire carries the current from the power supply to the switch or outlet, while the output wire delivers electricity to the connected device. Understanding these connections is crucial for ensuring safety and functionality.
For correct installation, begin by connecting the input wire to the power source, ensuring it’s securely fastened. Then, attach the output wire to the component that requires power. This will complete the flow of electricity and allow the device to function properly when activated. Always use the appropriate gauge of wire for each connection to avoid overheating or voltage issues.
When wiring switches, carefully connect the incoming power to the correct terminal on the switch. Then, the outgoing wire should be attached to the terminal that leads to the device being powered. Incorrect connections can cause malfunctions or even short circuits, so double-check all terminals before powering the system.

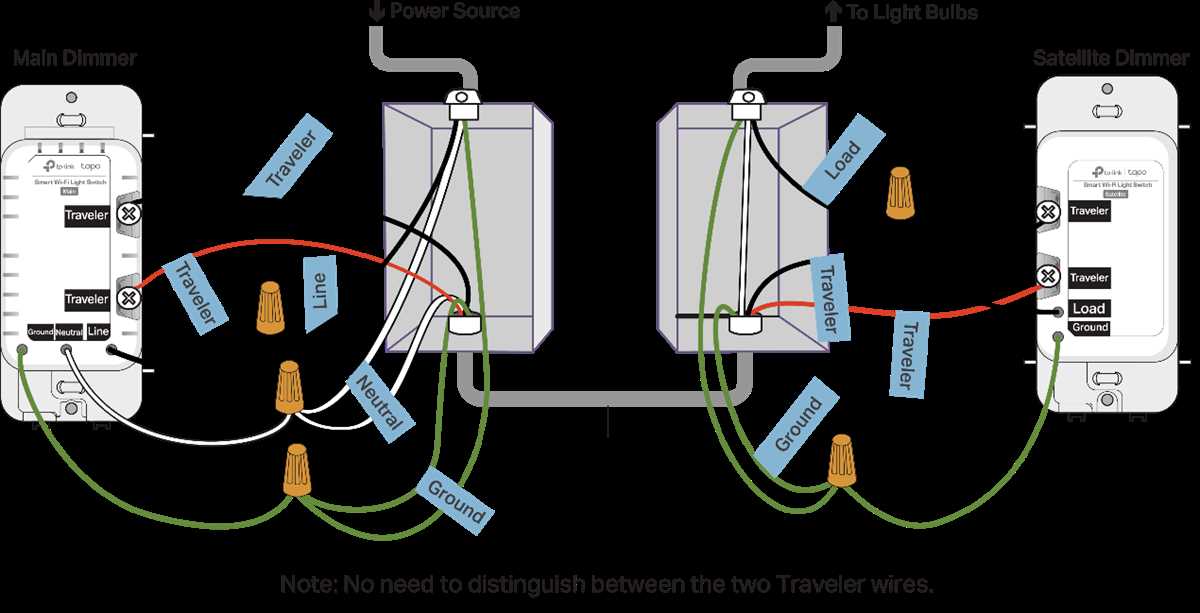

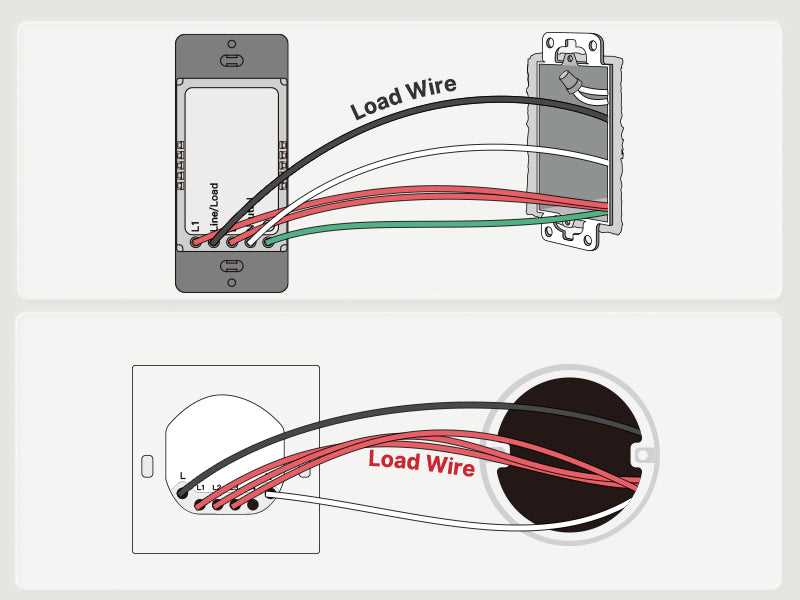

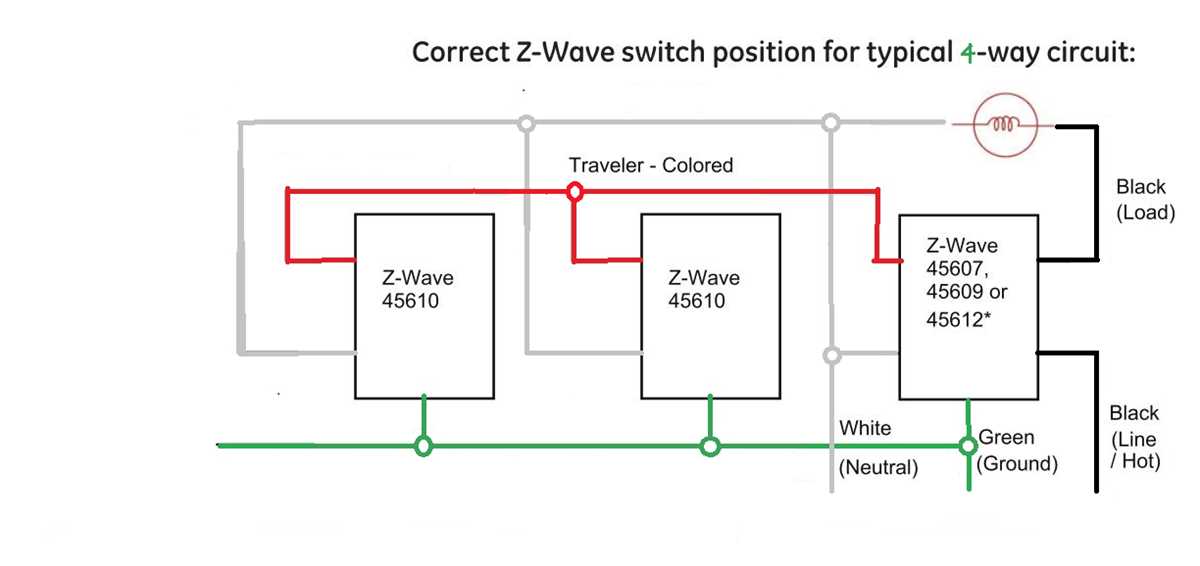

Line and Load Wiring Diagram
Begin by identifying the incoming power wire, which is typically connected to the circuit breaker or fuse. This wire is responsible for bringing the electricity into the system. Make sure this wire is properly rated to handle the electrical load to avoid overheating or potential damage.
Next, attach the outgoing wire to the load terminal. This wire should connect to the device that will use the electricity, such as an outlet, light, or appliance. Ensure the wire is securely connected and capable of handling the expected current to prevent any electrical issues.
When working with switches, connect the incoming wire to one terminal on the switch. Then, connect the outgoing wire from the other terminal of the switch to the appliance or device. This allows the switch to control the flow of power to the device when activated or turned off.
For safety, always use the proper gauge of wire based on the amperage of the circuit. A thicker wire is required for higher amperage, as it can safely carry more power without excessive heat buildup. Check the specifications of your circuit to ensure you are using the correct size.
Before finalizing the connections, inspect each terminal and connection point. Tighten any loose connections to prevent arcing or sparking, which could lead to electrical fires. Also, ensure that no bare wires are exposed, as this can cause short circuits or electric shocks.
Finally, test the system by turning on the power and checking the device to ensure it functions correctly. If there are issues, check all connections again for tightness and proper placement. A quick troubleshooting step involves testing the continuity of the wires using a multimeter to detect any issues in the circuit.
How to Identify Line and Load Wires in Electrical Circuits
Start by looking at the color of the wires. Typically, the incoming wire that brings power will be black or red, while the outgoing wire is usually white or blue. However, colors can vary, so always double-check with a voltage tester.
Use a Voltage Tester
To verify which wire is bringing current, use a non-contact voltage tester. Place the tester near each wire, and the one that emits a signal is the power wire. This helps ensure that the correct wire is connected to the power source.
Follow the Circuit Path
If you’re still unsure, trace the circuit back to the source. The wire connected directly to the breaker or fuse box is typically the input wire. The wire that leads from the switch or to the load will be the output wire, completing the circuit to the device.
Another tip is to check the connector terminals. The terminal labeled “in” or “power” is for the incoming wire, while the one labeled “out” or “load” connects to the device. Many switches and outlets are labeled for easier identification.
Finally, use a multimeter to test for continuity between the wires and the connected devices. This method will confirm which wire carries the current to the appliance, ensuring that you have the correct connections in place.
