To successfully install a multi-location lighting control setup, start by turning off the main power to avoid any electrical hazards. Next, gather all necessary tools, such as a screwdriver, wire stripper, and electrical tape, along with the correct type of device for controlling your lighting system from multiple points.
First, remove the existing control unit if replacing an older model. Then, connect the power wire to the appropriate terminal. This unit usually has a common terminal and two additional terminals for traveler wires. It’s important to verify the connection locations to ensure proper function.
Once all connections are made, securely fasten the unit to the electrical box, ensuring no wires are exposed. Test the system by restoring power and checking the functionality of the control at each location. If the system fails to respond, double-check the wiring for any loose or incorrect connections.
Preparing for 3-Location Lighting Control Installation
Before beginning the installation, ensure the power is completely turned off at the breaker to avoid any electrical shocks. Use a non-contact voltage tester to confirm that the circuit is de-energized. Gather all the necessary materials: the new control unit, wire cutters, a screwdriver, electrical tape, and wire strippers.
Inspect the existing electrical box to ensure it’s large enough to accommodate the new device. If the current box is too small, consider replacing it with a larger one. Verify the compatibility of the device with the number of control points you plan to use, ensuring it can handle multiple locations without issues.
Preparing the Existing Connections
If you’re replacing an old control, carefully remove it from the electrical box and examine the existing wiring. Label the current connections to avoid confusion during installation. Take note of the common wire, which will be attached to a specific terminal, and the traveler wires, which connect the control points. This will help ensure accurate placement of wires in the new unit.
Safety Precautions
Before proceeding, double-check all your tools and ensure you have the proper personal protective equipment, such as insulated gloves. If you’re unfamiliar with electrical work, it’s a good idea to consult a licensed electrician to assist with the installation or verify your setup. Always prioritize safety to prevent accidents.
Once all preparations are complete, you’re ready to begin the actual installation. Test the device at each location to ensure proper functionality and that the control works as expected before securing everything in place.
Step-by-Step Wiring Process for 3-Location Lighting Control
Start by turning off the power at the breaker. Use a voltage tester to confirm that the circuit is de-energized. This is critical to ensure safety during installation.
Remove the existing device from the electrical box. Note the positioning of the wires and take photos if needed to ensure you can correctly replicate the connections. Label the wires to prevent confusion during reinstallation.
Identify the common terminal. This is where the power supply wire will connect. The common terminal is usually marked and located at a distinct position on the device. This is the first connection to make.

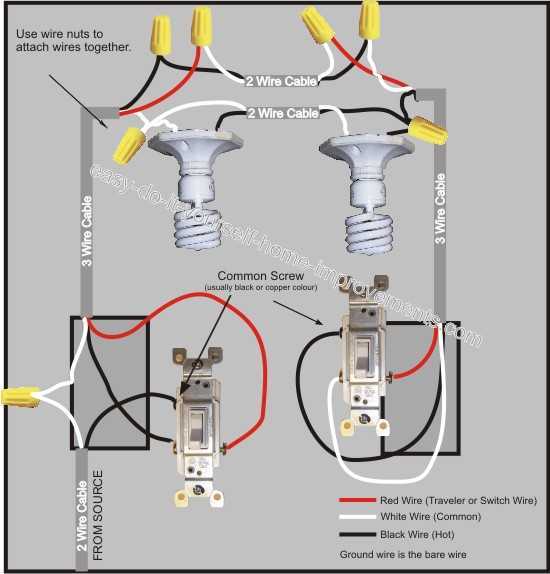

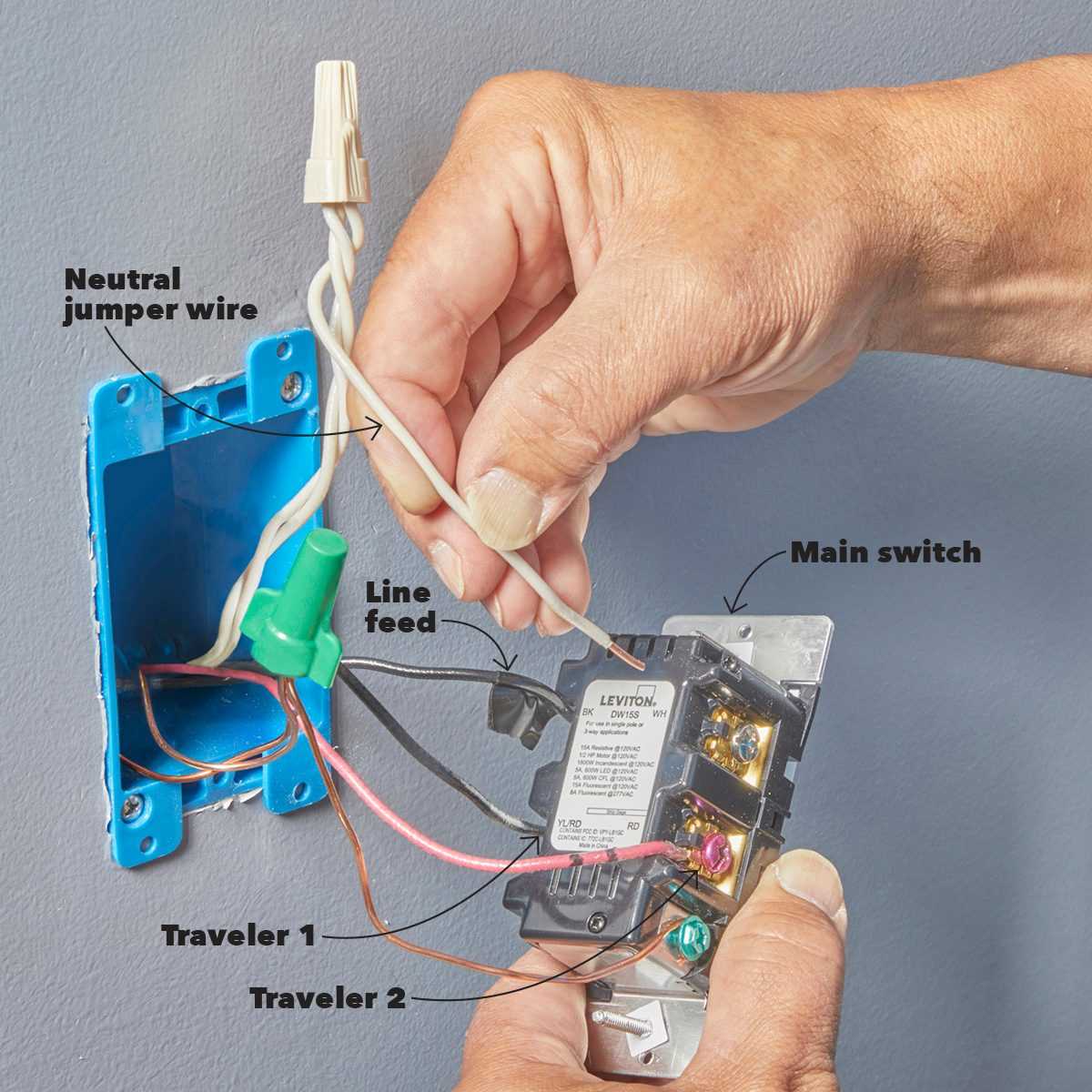

Next, connect the traveler wires to their designated terminals. These are the two wires that will carry the current between control points. Attach them securely to the terminals labeled for traveler connections.
If your setup includes a ground wire, ensure it is attached to the ground terminal. This is typically a green screw. It’s important to securely connect this wire for safety purposes, as it prevents any electrical faults.
After connecting the wires to their respective terminals, carefully tuck the wires back into the box. Ensure no wires are pinched or exposed. Position the device into the electrical box, ensuring it sits securely without strain on the wires.
Once the device is mounted, tighten the screws that hold it in place. Double-check the connections for any loose wires or poor contact. Tighten them if needed to ensure proper electrical flow.
Finally, restore the power at the breaker and test the device at each location to ensure proper operation. If the system doesn’t function as expected, verify each connection for accuracy, ensuring all terminals are correctly wired and secure.
Common Troubleshooting Tips for 3-Location Lighting Control
If your control isn’t functioning properly, the first step is to check if the power is properly restored at the breaker. Verify that all the terminals are securely connected and that no wires are loose or disconnected.
Testing Each Connection
Inspect each wire connection carefully to ensure they’re attached to the correct terminals. The power wire should be on the common terminal, while the traveler wires should be connected to the respective traveler terminals. A simple misconnection could cause the device to malfunction.
Check for Faulty or Worn Components
If the connections are secure but the system still isn’t working, the issue may lie in the components themselves. A faulty or worn-out device could prevent proper functionality. Consider replacing the device or checking the manufacturer’s troubleshooting guide for specific error codes.
- Verify that all connections are tight and free of corrosion.
- Check the functionality of the control by testing it in different positions.
- If necessary, replace the faulty component or check for any visible damage to the parts.
Another common issue could be a mismatch between the control and the light fixture. Ensure that the control is compatible with the specific type of light bulb you’re using. Certain dimmable fixtures may not work correctly with the control model, requiring you to adjust the configuration or change components.
