Start by identifying the correct components and understanding how to route the signals between your vehicle’s audio system and external amplifiers. Ensure you have a proper ground connection to avoid noise or hum in the audio output. If using a signal-to-line-level adapter, connect it directly to your head unit’s output to get a clean, balanced signal for amplifiers.
Once the connections are in place, check that you have the correct color coding for each wire. Typically, a consistent pattern across manufacturers ensures that the left and right channels are distinct, with additional wires for ground and power. Be sure to follow the provided schematic for the specific adapter you are using, as slight variations can lead to poor performance or even equipment damage.
If you encounter issues with sound clarity or connectivity, start troubleshooting by confirming that all connections are secure, and check for potential signal interference or grounding problems. Double-check wire insulation and connections to prevent short circuits. These steps ensure a smooth installation and optimal sound quality from your system.
Detailed Guide for Wiring a Line Output Signal Adapter
Start by selecting the right adapter model for your audio setup. If you are integrating an amplifier into your system, ensure that the adapter is compatible with your head unit’s output. Look for a high-quality device that supports proper signal conversion for both left and right audio channels.
Identify the signal inputs and outputs on the adapter. Typically, the input will be a speaker-level signal from your stereo system, while the output will be a pre-amp level signal. Ensure the adapter is designed to handle the power levels your stereo provides, and make sure the output matches the input requirements of your amplifier.
Before proceeding with the connections, turn off the vehicle’s audio system and disconnect the battery to avoid any accidental short circuits or damage to components during installation. This precaution is important for safety and preventing electrical issues.
Now, connect the speaker wires from your head unit to the input terminals of the signal adapter. Ensure that each wire is securely attached, following the color codes: the left channel (usually marked with a green or white wire) and the right channel (typically marked with a red or gray wire). Double-check the ground wire, usually black, to ensure it is properly connected.
After the signal input is wired, move on to the output side. Connect the output terminals of the adapter to your amplifier’s input connections. These typically consist of RCA connectors, so use the appropriate cables for a secure connection. Again, check the left and right channel connections carefully, ensuring proper polarity for optimal sound quality.
For grounding, find a clean metal surface in your vehicle to attach the ground wire from the adapter. This is crucial to avoid any electrical noise or hum. Make sure the ground connection is solid, as a poor ground connection can lead to significant audio quality issues.
Once all connections are made, carefully recheck each wire to ensure proper insulation and secure attachment. Loose connections or exposed wires can cause shorts or degraded audio performance. Reconnect the vehicle’s battery, and power on the audio system.
Finally, test the system by playing audio through the stereo. Adjust the volume and check the output quality from your amplifier. If there is distortion or noise, check the wiring again for potential issues such as loose connections, improper grounding, or mismatched signal levels. Troubleshoot and adjust the setup until you achieve clear and clean sound output.
How to Connect the Line Signal Adapter to Your Audio System

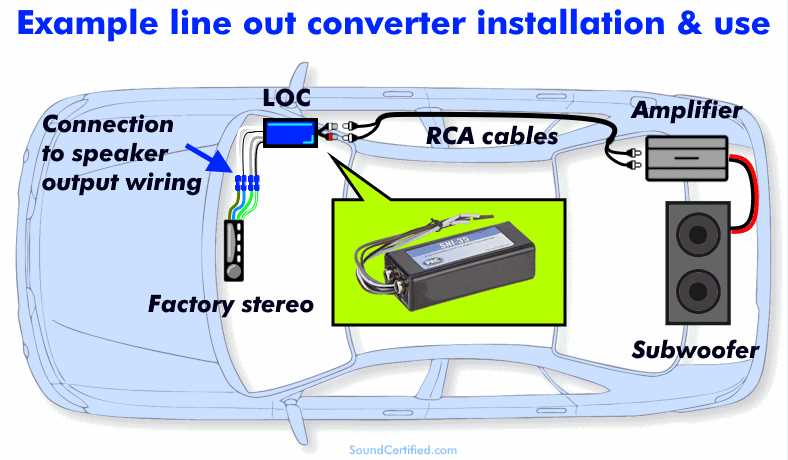

To begin, power off your audio system and disconnect the vehicle’s battery to ensure safety during installation. Identify the speaker-level output on your stereo system, which will serve as the signal source for the adapter. Use the provided connectors to securely attach the speaker wires from the stereo to the corresponding inputs on the adapter. Ensure the wires are tightly connected to avoid any signal loss or interference.
Next, connect the output terminals of the adapter to the amplifier’s RCA input connections using high-quality RCA cables. Double-check that the left and right channels are connected to the correct ports–left (usually white or green) and right (red or gray). Properly secure these connections to prevent any loose connections that could affect sound quality or signal transmission.
Finally, establish a solid ground connection by attaching the adapter’s ground wire to a metal surface in the vehicle. A good ground will minimize electrical interference, which could cause noise or hum in the audio system. After securing the ground wire, reconnect the vehicle’s battery, power on the stereo, and test the system. If you experience any distortion or noise, review the connections and ensure that all components are properly wired and grounded.
