Connect the D-type flip flops in series with the Q output of each feeding the D input of the next stage. Use short, insulated leads to prevent interference and maintain signal integrity.
Attach the clock input to all stages simultaneously using a stable square wave source. Verify that each stage toggles correctly by observing LED indicators or logic probes across outputs.
Integrate the reset line to clear all stages at startup. Ensure that the reset pulse is sufficient in duration to propagate through all flip flops without causing miscounts or skipped states.
Label each output with its corresponding sequence number. This practice simplifies troubleshooting and helps track progression through the expected sequence of logic states.
Johnson Counter Circuit Guide

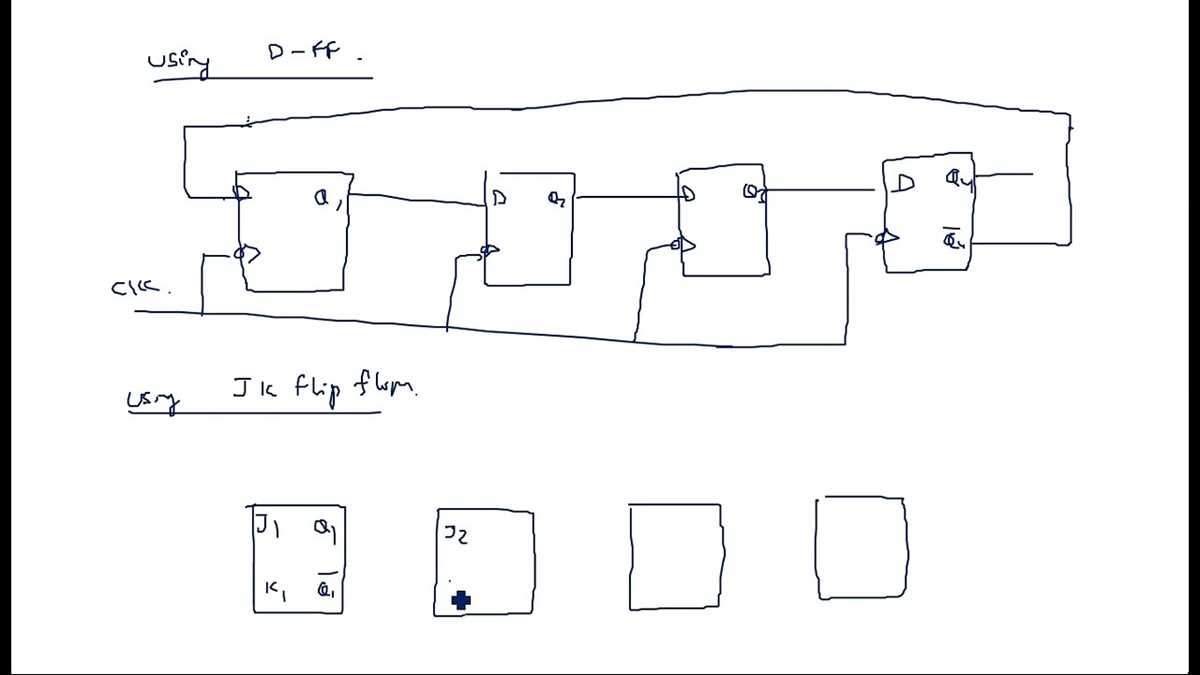

Connect each D-type flip flop in a series configuration, routing the inverted Q output back to the D input of the first stage. Use short, insulated leads and secure connections to prevent signal degradation and ensure accurate sequential toggling.
Integrate the clock and reset lines carefully, applying a clean square wave to the clock inputs of all stages and a brief high pulse to the reset line at startup. Verify that each output progresses through the expected logic sequence and that LEDs or logic probes confirm proper state transitions without overlap or missed counts.
Identifying Flip Flop Inputs and Outputs
Locate the D input on each flip flop and verify its connection to the previous stage’s inverted output. This ensures the sequence progresses correctly and prevents logic errors during toggling.
Check the Q and Q̅ outputs on every stage. Q provides the main logic signal, while Q̅ feeds back into the following stage or reset line depending on the design. Misidentifying these outputs can disrupt the entire sequence.
Mark the clock terminals to confirm consistent timing. All stages must receive the same clock pulse simultaneously for synchronized operation. Use insulated leads to maintain signal integrity.
- Q output: drives the next stage or load
- Q̅ output: feedback to D input or auxiliary logic
- D input: receives inverted or direct logic from prior stage
- Clock input: synchronized toggling for all stages
- Reset input: clears all stages to initial state
Verify the reset line connection to all flip flops. A brief pulse at startup sets all outputs to a known state, preventing miscounts or skipped logic transitions when power is applied.
Label all terminals using small tags or adhesive markers. Identifying D, Q, Q̅, clock, and reset points simplifies troubleshooting and helps maintain clarity when making adjustments or expansions.
Test each connection with a logic probe or LED indicators. Confirm that outputs change according to the expected sequence, and that no stage lags or toggles incorrectly under the applied clock pulses.
