Use a factory-issued reference page with numbered callouts to locate the exact element before ordering a replacement; this cuts mismatches and returns. Match the model code and production year, then verify each identifier against the machine tag to confirm compatibility.
These reference pages show how assemblies fit together across the cutting deck, drive system, steering, and fuel delivery. Pay attention to fastener lengths, washer order, and orientation marks–small differences affect alignment and wear. Cross-check serial ranges, since mid-year updates often alter brackets, belts, or pulleys.
For routine service, keep screenshots of the relevant reference page on a tablet near the mower. Highlight torque notes, lubrication points, and spacing shims. This practice speeds reassembly and reduces noise, vibration, and premature failure.
When sourcing replacements, compare the identifier from the reference page with vendor listings, then confirm material specs such as belt width, bearing seal type, and tooth count. If an item shows supersession, choose the latest revision to avoid fit issues.
Component Layout Guide for Lawn Tractor Maintenance
Use a factory-issued schematic layout to identify each assembly before removing fasteners; this reduces mismatched hardware and saves reassembly time.

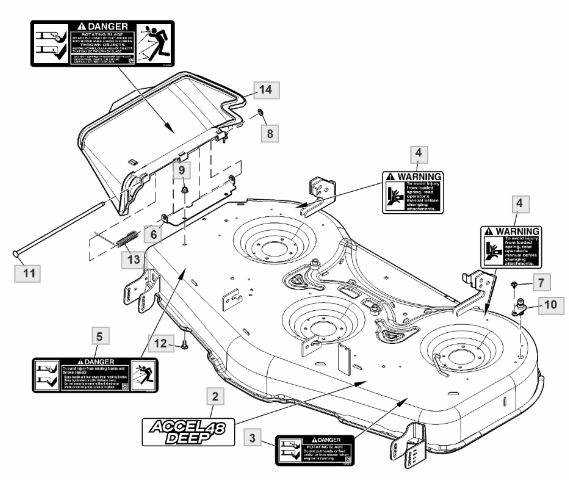

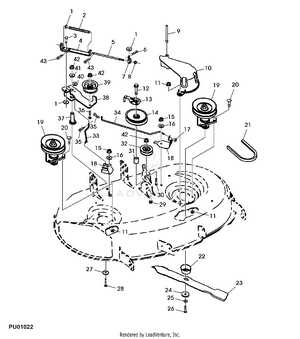

Focus first on the mower deck section: spindle housings, belt routing paths, idler pulleys, and blade adapters are shown with reference numbers that match catalog listings. Cross-check these numbers with the machine’s serial range to avoid incompatible replacements.
For the drive system, the layout clarifies transaxle mounts, axle keys, and linkage points. Pay attention to exploded views that separate washers, bushings, and snap rings; missing a thin spacer often causes vibration or premature wear.
Electrical layouts highlight switch clusters, safety interlocks, and harness connectors. Follow connector shapes and wire paths rather than color alone, since harness revisions vary by production year.
Engine-related schematics display intake, exhaust, cooling shrouds, and mounting brackets as layered groups. Remove components in the reverse order shown to prevent bent tabs and stripped threads.
When sourcing replacements, compare measurements listed alongside the illustration–belt length, bore diameter, and thread pitch–before placing an order. This step filters out near-matches that fit visually yet fail under load.
Tip: Print the relevant page and mark removed items with a pen as work progresses; this visual checklist keeps small hardware accounted for during service.

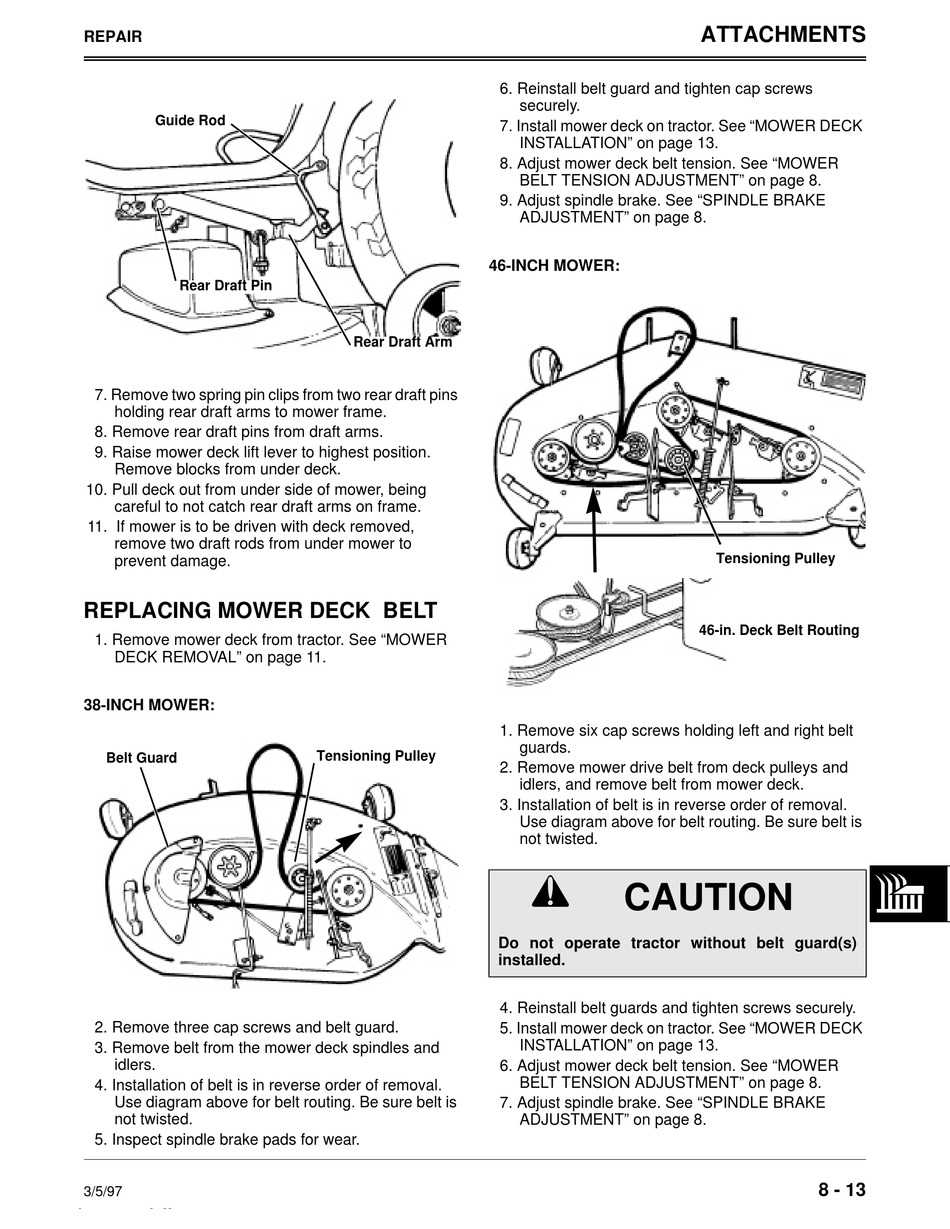

Finding the Correct Diagram by Sabre Model and Deck Size
Match the mower’s exact model code and cutting deck width before selecting any schematic; this prevents mismatched component layouts and wasted time.
Locate the identification label under the seat pan or on the frame rail. Record the full model code, production range, and engine family, then confirm the deck width stamped on the shell edge.
- Model code defines chassis geometry, belt routing, and steering link placement.
- Deck width (38″, 42″, 46″, 48″, 54″) dictates spindle spacing and blade orientation.
- Production range separates early and late revisions with different tensioners and guards.
Use the deck width as the primary filter when multiple schematics appear for the same tractor line. A 42-inch shell uses different spindle housings and idler arms than a 46-inch shell, despite similar frames.
- Select the tractor line and exact model code.
- Choose the deck size that matches the stamped measurement.
- Verify revision notes tied to the production range.
- Confirm engine family only after the deck selection.
Cross-check fastener counts and belt lengths shown in the exploded illustration against the mower on hand. If the belt path or pulley count differs, switch to the alternate revision for that deck width.
For attachments and guards, rely on the deck-specific illustration rather than the tractor-level view; shields, deflectors, and lift links vary by shell size and mounting pattern.
Reading Component Numbers and Assembly Relationships in Exploded Views
Match each numeric code to the callout on the exploded view before checking fitment, since identical-looking elements often carry different identifiers tied to size, thread, or finish.
Numeric strings usually follow a structured pattern: a base prefix signals the product family, a middle block distinguishes revisions, and a suffix flags coatings or handedness. For example, a right-side fastener may end with an “R” while a plated variant adds a two-letter finish code.
Use the callout order to trace assembly hierarchy. Lower callout numbers typically anchor subassemblies, while higher numbers attach later. This sequence reveals which items must be removed first during disassembly and which spacers or shims sit between layers.
Cross-reference shared callouts across multiple illustrations to confirm interchangeability. When the same identifier appears in steering, frame, and linkage views, it signals a standardized element reused across systems, simplifying sourcing and stocking.
Pay attention to dashed outlines and bracketed groups. Dashed lines indicate optional hardware sets, while brackets bundle items sold together. A bracketed group means individual elements may not be available separately, affecting replacement strategy.
Check quantity markers next to callouts. A small “x2” or “x4” defines how many units install per assembly, preventing under-ordering and ensuring symmetry across left and right mounts.
Review orientation cues such as arrows and shaded faces. These markers clarify alignment, torque face placement, and mating surfaces, reducing rework caused by reversed bushings or inverted collars.
Verify revision notes tied to callouts. Footnotes often specify superseded identifiers or compatibility breaks by serial range, guiding selection when older and newer builds coexist.
Using the Schematic to Select Compatible Replacement Components
Match the machine’s exact model code and production year against the exploded view before purchasing any replacement component. Compare reference numbers, mounting points, and orientation arrows shown in the layout with the worn item on the mower. If the fastener count or shaft length differs by even a few millimeters, compatibility issues appear during installation.
Check subsystem groupings in the schematic–deck assembly, drive system, steering linkage, and electrical routing–to confirm interchangeability. Components sharing the same reference index across different revisions usually fit without modification. When a superseded item appears, follow the cross-reference note in the view to the updated equivalent rather than choosing by appearance.
Verify material and specification notes embedded in the layout, such as belt width, bearing type, or thread pitch. Use torque values and spacer order shown near the callouts to avoid misalignment. Print the relevant section and mark confirmed matches during inspection to reduce return cycles and downtime.
