Verify the main power source before handling any connections. Ensure breakers are off and use a voltage tester on all terminals to confirm no current is present. This prevents accidental shocks during installation.
Identify each conductor by color and labeling. Black or red lines carry live current, white is neutral, and green or bare indicates ground. Accurate identification avoids short circuits and damage to control components.
Maintain correct routing through conduit or protective channels to prevent abrasion and water exposure. Spacing conductors apart reduces interference and heat buildup in confined areas.
Tighten all connections securely using appropriate torque on screws and terminals. Loose contacts can cause arcing, tripping breakers, or component failure. Double-check each joint before restoring power.

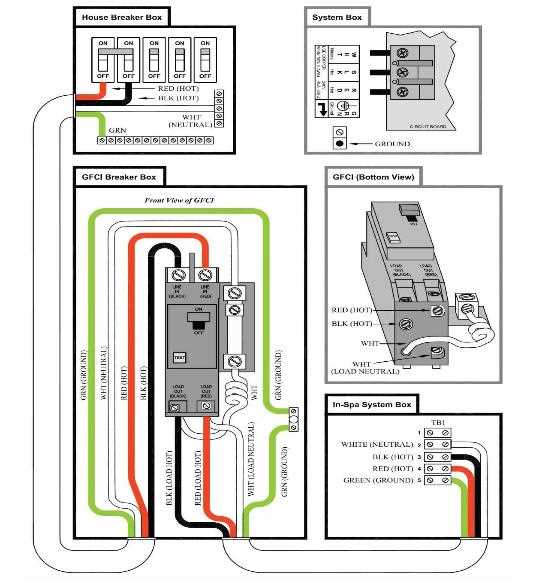

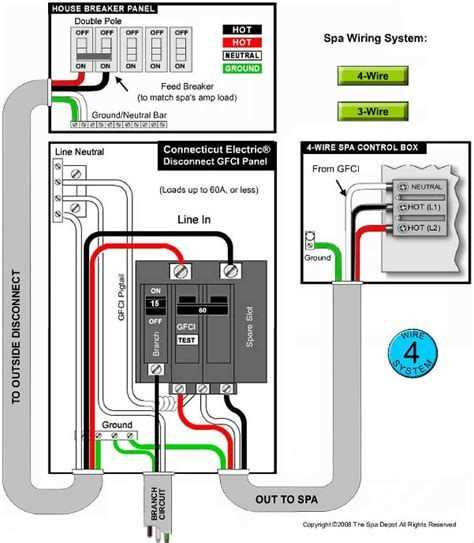

Electrical Layouts and Connection Insights for Spa Systems
Confirm the power rating before installing any control units. Use a multimeter to verify incoming voltage matches the pump and heater specifications. This avoids overheating and circuit trips.
Route conductors carefully through protective channels, keeping high-current lines separate from control signals. Proper routing reduces interference and extends component lifespan.
Label each line at both ends using heat-resistant tags. Mark live, neutral, and ground clearly to simplify maintenance and prevent connection errors during future servicing.
Secure connections tightly on terminal blocks and contactors. Loose contacts can cause sparks, breaker trips, or premature equipment failure. Check torque settings for each screw.
Use appropriate protective devices like GFCI breakers and fuses in line with manufacturer specifications. This safeguards users against electric shocks and protects sensitive electronics.
Regularly inspect all connections for corrosion, fraying, or discoloration. Replace degraded conductors promptly to maintain safe operation and prevent unexpected shutdowns of pumps or heaters.
Locating Key Circuit Breakers and Control Modules
Identify the main power panel located near the equipment access panel. Check for labeled breakers dedicated to pumps, heaters, and lighting systems to isolate each function safely during maintenance.
Trace control modules mounted behind the top access cover. Look for boards with connectors leading to sensors, pumps, and user interfaces. Ensure all modules are secured and free of moisture before testing.
Mark connections clearly using tags or colored tape to distinguish live, neutral, and ground paths.
- This simplifies troubleshooting.
- Prevents accidental cross-connections.
- Reduces downtime during repairs.
Check breaker ratings against device specifications. Use a multimeter to confirm continuity and verify that each protection device responds properly to simulated faults before restoring power to the system.
