Ensure each terminal is correctly matched with its corresponding lead before applying power to prevent short circuits or misfires. Use color codes and printed labels to identify primary and secondary circuits.
Secure connectors with insulated clips or heat shrink tubing to maintain consistent contact under vibration and temperature fluctuations. Loose contacts can cause signal interruptions and reduce engine performance.
Follow manufacturer torque specifications when fastening mounting bolts to avoid damaging the unit or affecting alignment. Over-tightening can crack the housing, while under-tightening may lead to disconnections.
Test each circuit individually using a multimeter to verify continuity and resistance values. Confirm that current flows correctly through all pathways before final assembly and engine startup.
Document all connections and modifications with labeled diagrams or photos. This record simplifies future maintenance, troubleshooting, and component replacement without guesswork.
Step by Step Electrical Connection Setup for Vehicle Components
Verify each terminal location before connecting leads to prevent misalignment that can trigger engine misfires or sensor errors. Use the service sheet provided by the manufacturer for reference.
Label each cable and harness segment to avoid confusion during installation. Color coding and numbered tags improve accuracy when reconnecting multiple circuits in tight engine compartments.
Secure fasteners with proper torque specifications:
- Primary mounts: 8–10 Nm
- Secondary brackets: 5–7 Nm
- Connector clips: hand-tight with slight resistance
Inspect all contact points for corrosion or dirt before assembly. Clean terminals with a contact cleaner or fine sandpaper to ensure stable current flow and prevent signal loss.
Route leads away from heat sources and moving parts to reduce wear and prevent insulation damage. Use protective sheathing or conduit where exposure is unavoidable.
Check resistance and continuity using a multimeter:
- Measure across input and output terminals for expected values
- Confirm no shorts between adjacent leads
- Repeat tests after mounting to detect vibration-induced issues
Document installation with sketches or photos showing each connection point. This record accelerates future troubleshooting and ensures accurate replacements without trial and error.
Perform a functional test by applying low voltage and monitoring spark or signal output. Adjust any misaligned connectors and verify the system operates under normal engine load conditions.
Identifying Terminals and Electrical Connections

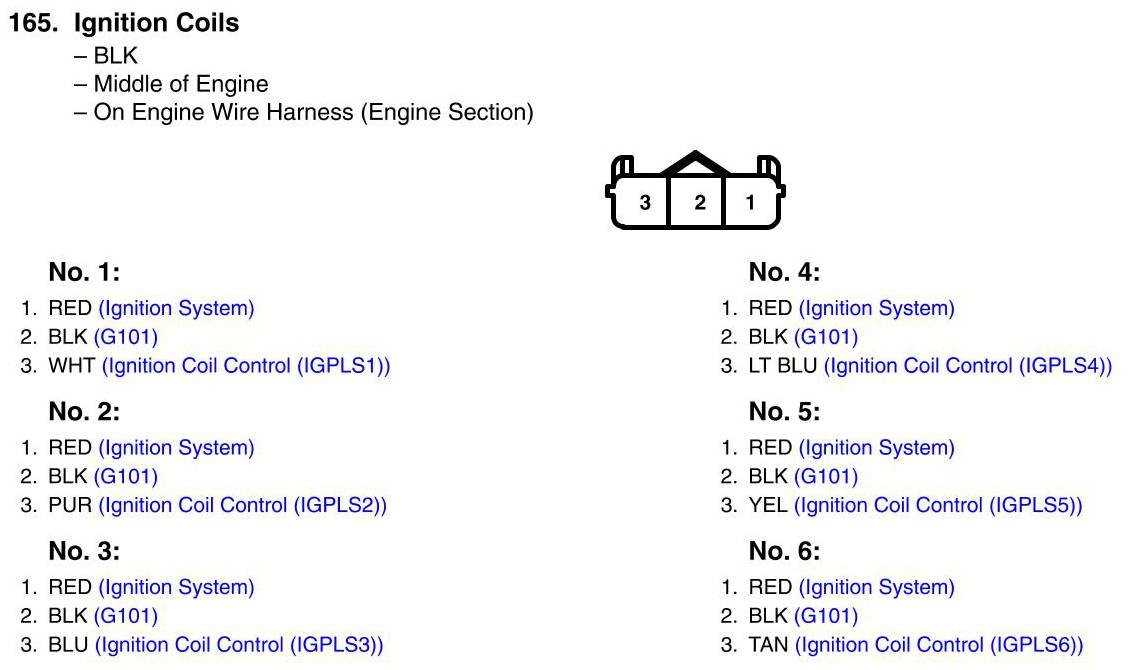

Match each pin with its designated lead using the manufacturer’s label guide. Primary terminals are usually marked with a single letter or number, while secondary outputs are color-coded for spark delivery.
Inspect connectors for physical wear or corrosion before attachment. Even slight oxidation can cause voltage drops or intermittent contact, resulting in misfires or erratic sensor signals.
Terminal Mapping Techniques
Use a multimeter to check continuity between each input and output point. Confirm that resistance readings align with the specified range–typically 0.4–2.0 ohms for primary circuits and 5–15 kilohms for secondary paths.
Labeling and Securing Leads
Once verified, mark each cable with heat-resistant tags and route them through protective sleeves. Fasten connectors firmly but avoid over-tightening, which can crack housings or deform pins, compromising signal integrity.
