If you are working with a patient transfer device, understanding the different components and their functions is critical for ensuring safety and proper operation. Each section of the equipment has a specific role, and identifying these parts will help with troubleshooting and maintenance.
Begin by locating the frame, which forms the base structure, supporting the entire mechanism. The next key component is the lifting arm, which elevates the patient and should be checked regularly for signs of wear. Pay special attention to the pump mechanism that powers the lift–this is often a source of issues if not properly maintained. The sling, which holds the patient, must also be carefully examined for any tears or malfunctions.
By identifying these and other core components, you can assess the condition of your device and perform any necessary repairs or replacements. Keeping an up-to-date understanding of the equipment will ensure smooth operation and prevent unnecessary malfunctions that can hinder patient care.

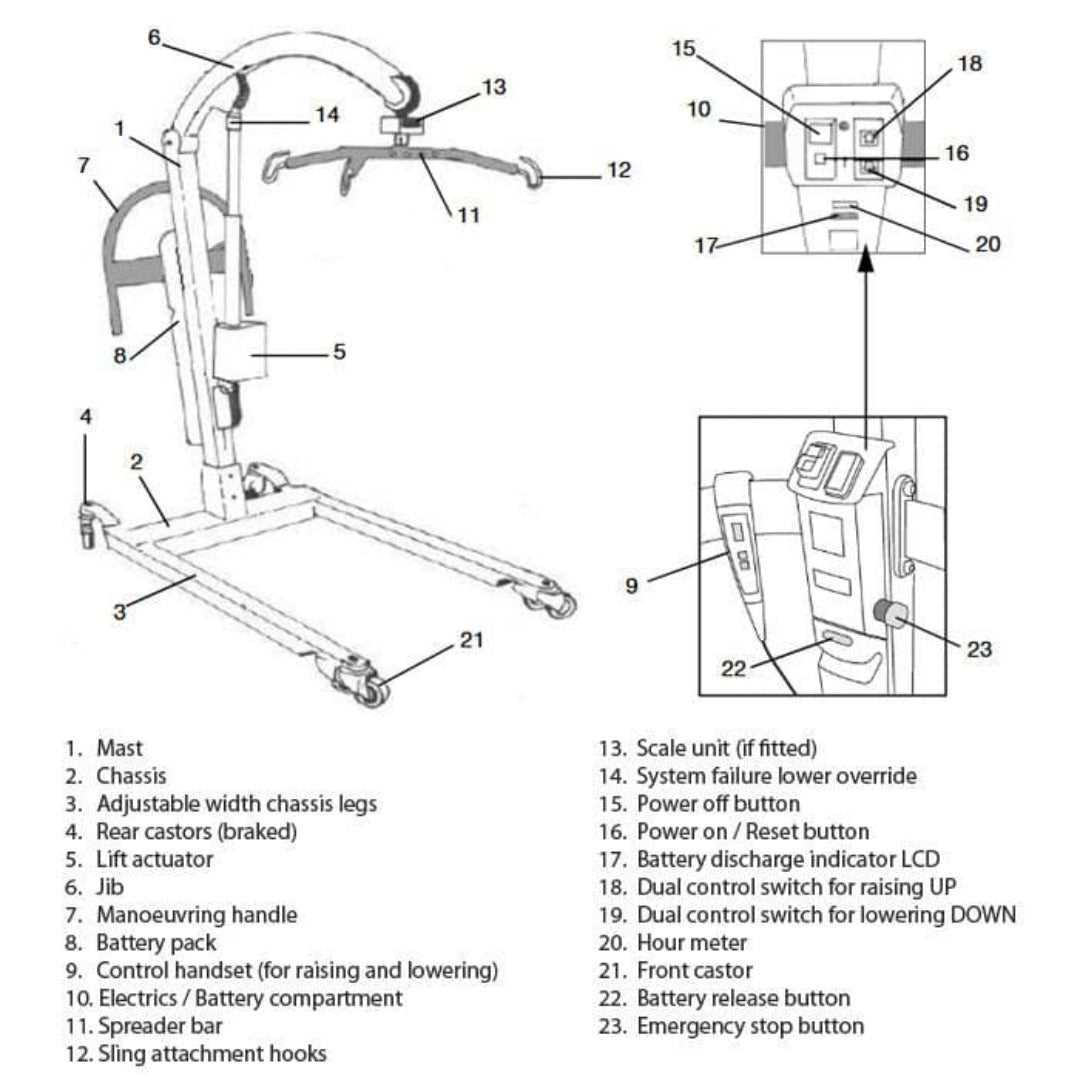

Hoyer Lift Parts Diagram
To properly maintain a transfer device, it is important to understand the key components involved. Start by identifying the frame, which supports the entire structure and ensures stability. Check for any cracks or damage that could affect its integrity.
The next key element is the hydraulic system. The pump and cylinder are responsible for raising and lowering the device. Inspect these parts for leaks, and ensure the pump operates smoothly. If the pump is slow or makes unusual noises, it may need to be replaced or serviced.
Focus on the sling attachment mechanism. This is the component that holds and supports the patient. Make sure it is secure and free from wear or damage. Regularly inspect the sling for any tears or fraying that could compromise patient safety.
Finally, review the wheels and casters. These allow for mobility and ease of positioning. Test their movement to ensure the device can be easily moved without resistance or wobbling. Keep them clean and lubricated to avoid mechanical issues.
How to Identify Key Components of a Hoyer Lift
Start by locating the frame, which is the primary support structure. Check for signs of wear or cracks that could affect the stability and safety of the equipment.
The hydraulic system, including the pump and cylinder, is vital for raising and lowering. Inspect the hydraulic lines for leaks and test the pump for smooth operation. If there’s resistance or unusual noise, servicing may be required.
Focus on the lifting mechanism that connects to the sling. Ensure that it is securely attached and free from damage. A malfunction here could compromise the entire system’s ability to safely support the user.
Next, examine the casters or wheels. These parts enable the movement of the device. Ensure they rotate freely and check for any obstructions that could hinder smooth mobility. Lubrication can help prevent wear and tear.
Finally, review the emergency release function, if present. Ensure that it operates correctly in case of malfunction, and confirm that it is easily accessible when needed.
Step-by-Step Guide to Replacing Common Hoyer Lift Parts
Begin by turning off the power supply and disconnecting any electrical connections to prevent accidental activation during the replacement process.
For the hydraulic pump, remove the protective covers and loosen the mounting bolts. Disconnect the hydraulic lines carefully, ensuring no fluid leakage. Replace the old pump with a new one, ensuring all connections are tight and secure.
If the wheels are damaged, raise the unit off the ground and remove the wheel assembly bolts. Replace with compatible wheels, ensuring they rotate freely without obstruction.
For the sling attachment mechanism, detach the sling from the lifting arms. Inspect the hooks and ensure the mechanism is functioning correctly. Replace any worn-out parts with genuine replacements and reattach the sling securely.
Finally, check the emergency release mechanism. If it’s faulty, remove the housing, replace the faulty components, and ensure the release lever operates smoothly.
Once the parts are replaced, test the system thoroughly before returning it to service to ensure everything is functioning as expected.
