Cut battery power at the main switch and label every conductor before detaching anything inside the marine lever assembly. A 12 V test light or multimeter helps confirm which lead carries ignition signal, neutral safety circuit, and trim switch feed. Tag each lead with tape and a marker so reinstallation does not require tracing the full harness again.
Open the side cover of the lever housing by removing the two or three stainless screws that hold the casing. Inside the assembly, locate the bundled conductors routed along the shift lever bracket. These leads usually terminate at bullet connectors or small spade terminals connected to the ignition interrupt switch and trim actuator buttons.
Detach each connector gently using needle-nose pliers while supporting the terminal to avoid pulling the copper strands from the insulation. The harness typically runs through a rubber grommet at the rear of the console; press the grommet inward and slide the cable bundle out of the mounting opening without twisting it.
Inspect the cable sheath once it is free from the housing. Marine installations often route this bundle beside shift and engine speed cables, so corrosion or tight bends may hold it in place. Apply silicone spray along the sheath and guide the bundle through the rigging tube slowly to prevent damage to insulation or connector pins.
Detach Mercury Quicksilver Lever Assembly Electrical Harness From Marine Console Box

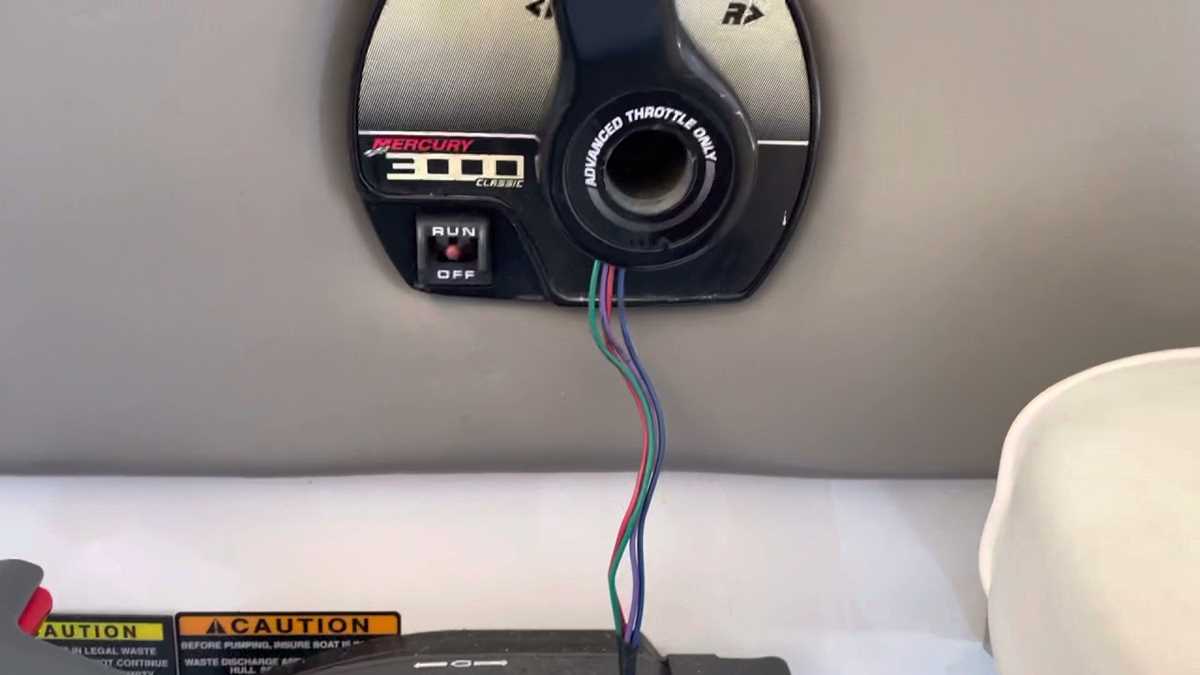

Disconnect the boat battery and open the side panel of the Mercury lever assembly using a Phillips screwdriver. Inside the housing, locate the bundled electrical leads running alongside the shift linkage. Mark each conductor with tape before disconnecting so every circuit can later return to the correct terminal.
Grip each connector with needle-nose pliers and pull straight from the terminal rather than tugging the insulation. Marine lever assemblies commonly use spade connectors, bullet joints, and a small plug harness attached to the trim switch and neutral safety switch. Support the terminal block with your fingers while separating the connectors to prevent bending the thin metal tabs.
After all electrical leads detach, locate the rubber pass-through where the cable bundle exits the console box. Press the rubber grommet inward and guide the harness out of the opening. Apply a small amount of silicone lubricant if the sheath sticks against the rigging tube or fiberglass edge.
Inspect the extracted cable set along its full length. Saltwater exposure often leaves green oxidation around terminals or stiff insulation near the lever pivot. Replace damaged connectors before routing the harness again through the console opening and securing it with new clamps or cable ties.
Accessing the Quicksilver Control Housing and Locating Throttle Cable Terminals
Disconnect the boat battery and unscrew the side cover of the Mercury lever assembly mounted on the console. Most housings use two or three stainless Phillips screws placed along the outer plate. Lift the cover slowly; inside the unit, the shift linkage, engine speed cable anchor, and electrical connectors become visible.
Opening the side panel of the lever assembly
Hold the lever in the neutral position before opening the casing. This position keeps the internal cam aligned and prevents tension on the cable brackets. After removing the cover plate, identify the pivot bracket where the engine speed cable attaches. The cable end normally sits in a slotted metal guide secured with a retaining clip.
Identifying the cable connection points
Trace the cable sheath to the mounting clamp fixed inside the housing wall. The inner steel wire connects to a small linkage arm through a pin or cotter clip. Nearby terminals usually belong to the trim switch and neutral safety switch. Use a flashlight to follow each conductor and confirm its path before disconnecting any terminal.
