Check the control terminals and conductor routes between the indoor air handler and the outdoor unit before reconnecting any cable. Most residential climate transfer systems operate with a 24-volt control circuit that activates relays, contactors, and valve solenoids. Matching each conductor with the correct terminal prevents compressor lockout, blower failure, or reversing valve malfunction.
The indoor unit usually contains the low-voltage transformer that supplies the control circuit. Terminal R carries 24-volt power from the transformer, while C provides the return path. Signals from the wall climate controller travel through several conductors to control system functions such as compressor start, indoor fan operation, and reversing valve switching.
Outdoor equipment contains a contactor coil that engages the compressor and condenser fan motor. When the cooling call closes the control circuit between R and Y, the contactor pulls in and line voltage flows to the compressor. The reversing valve solenoid usually connects to terminal O or B, depending on manufacturer configuration, allowing the system to switch between cooling mode and space heating mode.
Auxiliary strip heaters inside the air handler often connect through terminals labeled AUX or E. These conductors trigger additional heating elements during low outdoor temperatures or defrost cycles. A clear connection map showing terminal letters, conductor colors, and component paths allows quick tracing of faults such as a stuck reversing valve, inactive compressor contactor, or failed blower relay.

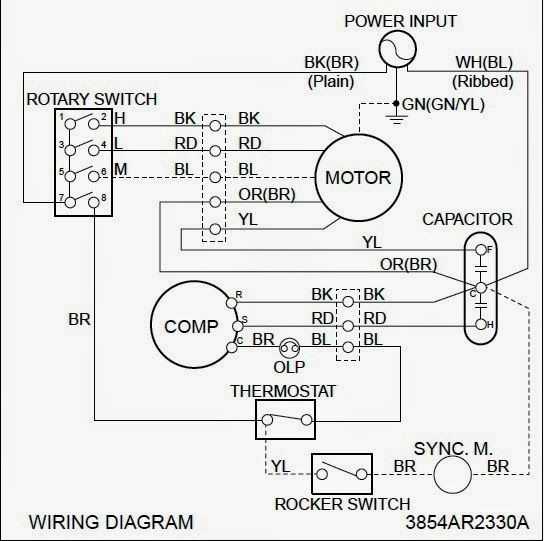

Heat Pump Electrical Wiring Diagram With Terminal Labels and Control Circuit Layout
Check the terminal letters on the indoor air handler control board and match each conductor before reconnecting the cable bundle. Residential air-source transfer systems rely on a 24-volt control loop supplied by a transformer inside the air handler. Terminal R carries the low-voltage supply, while C returns current to the transformer and powers digital wall climate controllers.
The compressor contactor receives its activation signal through terminal Y. When the wall controller closes the circuit between R and Y, the contactor coil energizes and applies line voltage to the compressor and outdoor fan motor. If the outdoor unit stays silent during a cooling call, tracing this conductor from the air handler board to the contactor coil often reveals a loose terminal or broken cable.
Reversing valve control terminals
Mode switching between cooling and space heating relies on a solenoid valve located in the outdoor unit. This component connects through terminal O or B, depending on manufacturer design. Systems using terminal O energize the valve during cooling mode, while units using terminal B energize it during heating mode. Checking this connection helps diagnose cases where the system delivers cold air during a heating call.
Indoor air circulation operates through terminal G, which activates the blower relay inside the air handler. Closing the R-to-G control path powers the blower motor and distributes conditioned air through the duct system. Manual fan operation from the wall controller can confirm that the relay and motor still function.
Auxiliary strip heater connections
Backup heating elements inside the air handler connect through terminals labeled AUX or E. These lines activate resistance heater banks during low outdoor temperatures or defrost cycles. When auxiliary heating fails, inspect the conductor from the control board to the heater relay or sequencer, because loose screw terminals often interrupt this signal path.

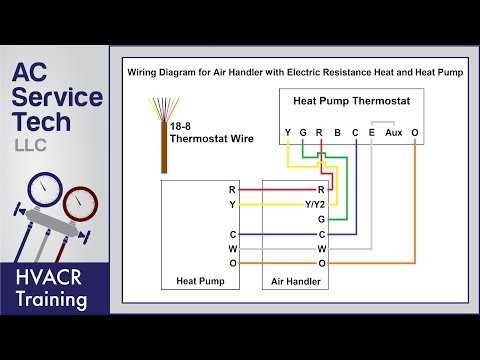

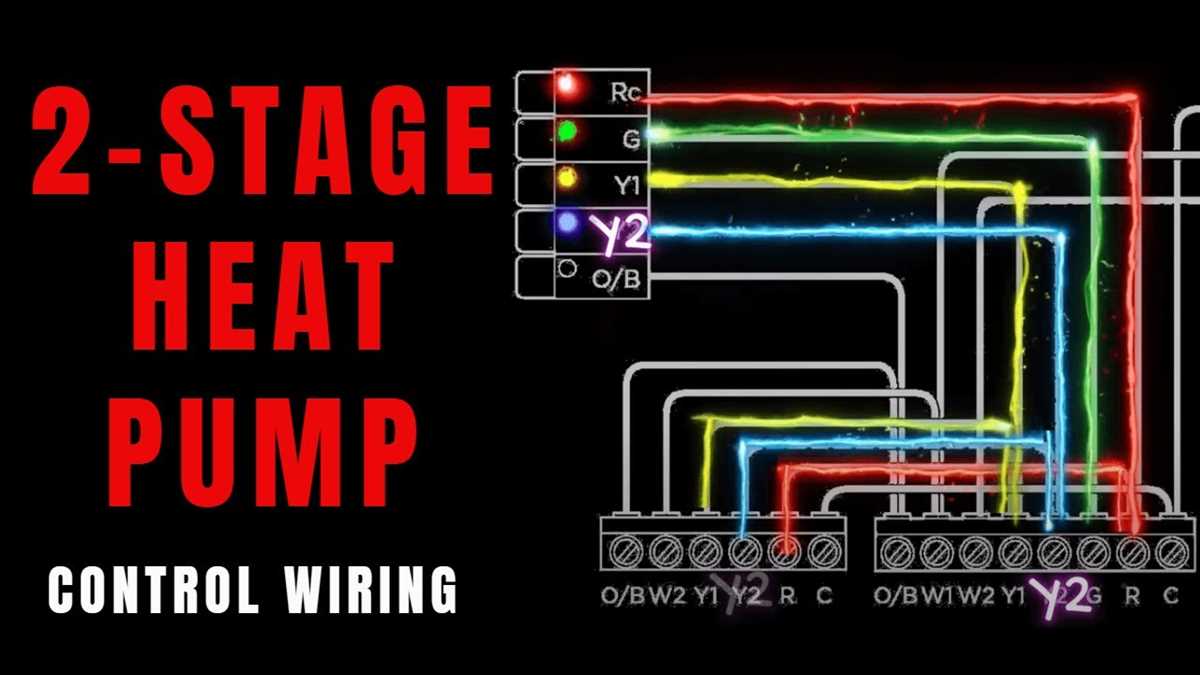

Low voltage control connections between thermostat indoor air handler and outdoor unit
Match each conductor between the wall climate controller, indoor air handler board, and outdoor condensing section using terminal letters rather than insulation color. Most residential systems use a 24-volt control circuit generated by a transformer inside the air handler. Each conductor carries a switching signal that activates relays, contactors, or valve solenoids.
Typical terminal connections between indoor and outdoor sections
- R – 24-volt supply from the transformer
- C – return path for the control circuit
- Y – signal that energizes the compressor contactor
- O or B – reversing valve control line
- G – indoor blower relay activation
- AUX or E – auxiliary resistance heater control
The cable linking indoor and outdoor equipment normally contains five to eight conductors. A common configuration routes Y and C from the air handler board to the outdoor contactor coil. When the climate controller closes the R-to-Y circuit, the coil pulls in and line voltage reaches the compressor and condenser fan motor.
Basic connection path between system components
- Wall controller sends a call for cooling or heating.
- The control board receives the 24-volt signal.
- Signal travels through the Y conductor to the outdoor contactor.
- The reversing valve line (O or B) switches operating mode.
- The blower relay activates through the G conductor.
Connection faults often appear as a silent outdoor unit or incorrect operating mode. Loose screw terminals, damaged insulation, or unused conductors touching the cabinet can interrupt the control loop. Inspect the terminal strip inside the air handler and the contactor coil connections in the outdoor cabinet whenever the compressor fails to start.
